Canvas 088-1682-2 User Manual

ASSEMBLY
Step 11
Requires
13, 15.

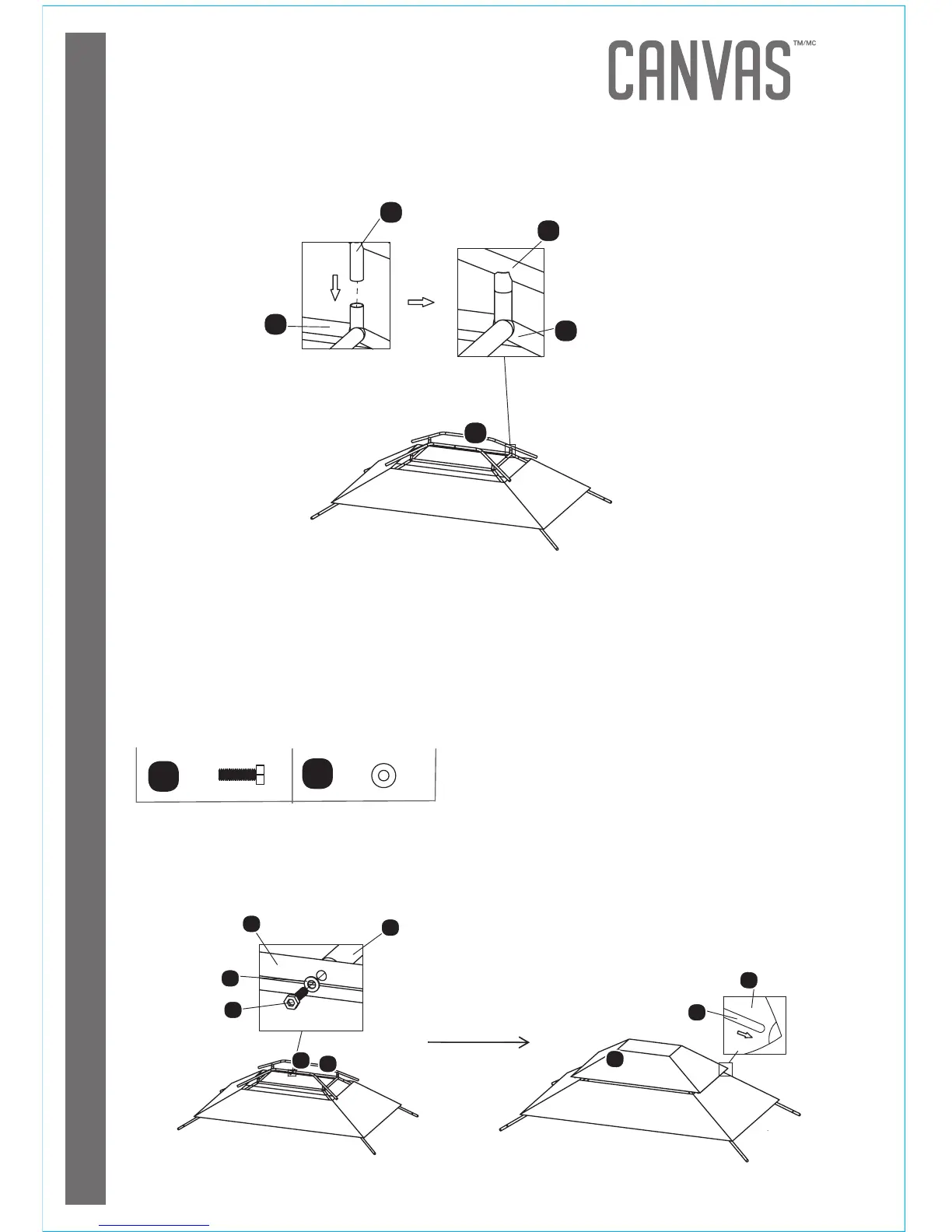

Insert the small canopy frame 15 into the large canopy frame 13 as per drawing.
11
Step 12
Requires
15, 16, 20, B, K.
Insert a bolt B through the metal washer K, through the small canopy frame 15,
and into the small canopy frame bar 16. Repeat procedure on the other side. Do
not tighten completely. Then insert the small canopy frame 15 into the small
canopy 20.
B
K
15
13
15
13
15
16
15
K
B
15
20
20
16
15
Not actual size.
