Canvas 088-1682-2 User Manual

ASSEMBLY

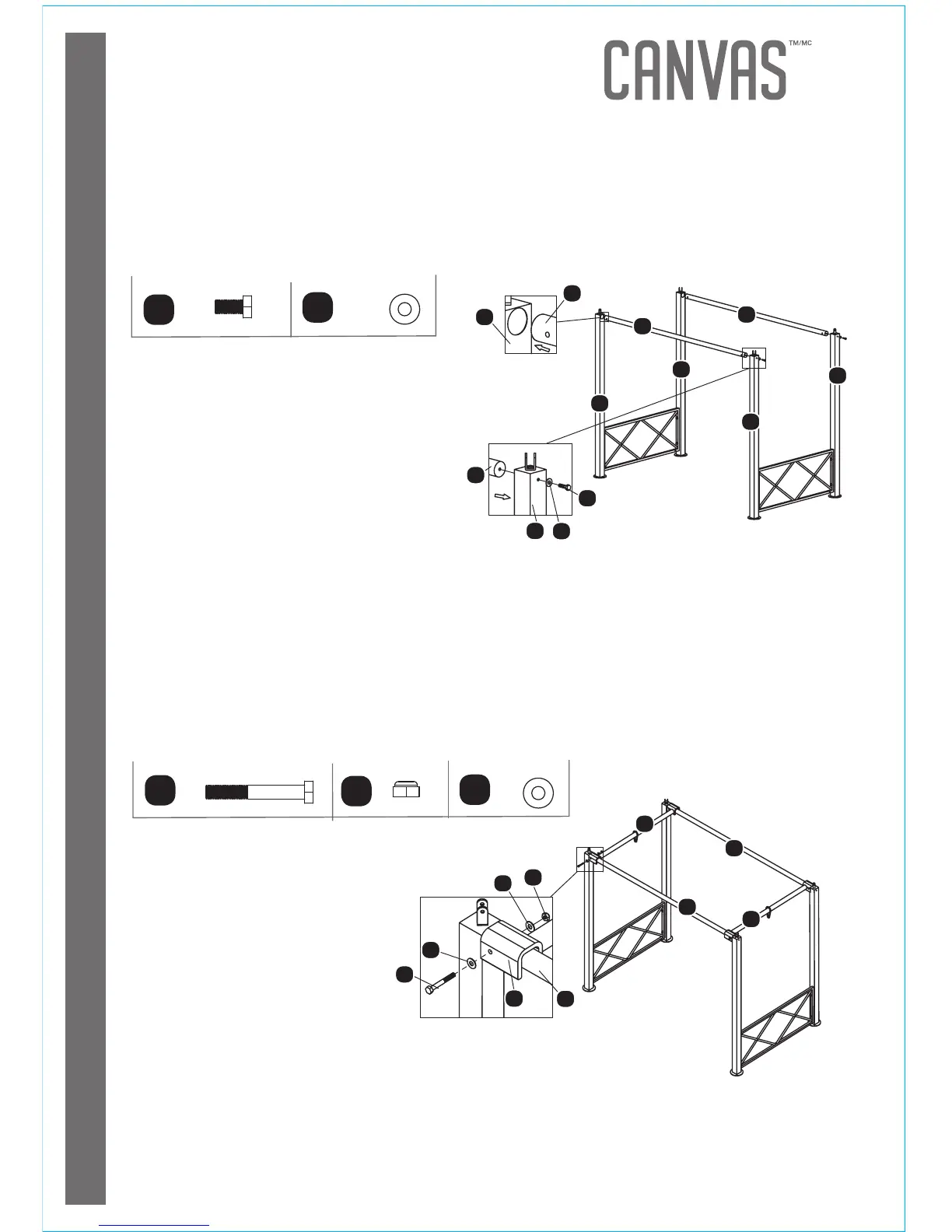

Step 3
Requires
1, 2, 4, E, L.
Insert two long top crossbars 4 into the holes at the top of each leg. Line up the
holes. For each hole insert a bolt E through a metal washer L, through the leg,
and secure into the long top crossbar 4. Do not tighten completely. Repeat
procedure for the other long top crossbar.
7
Step 4
Requires
4, 5, G, J, L.
Attach a short top crossbar 5 onto the long top crossbars 4. Make sure the U-shaped
brackets of the short top crossbar 5 are facing down. Line up the holes. For each
hole, insert a bolt G through a metal washer L, then through the outer side of the
bracket on the short top crossbar 5, the long top crossbar 4, the inner side of the
bracket on the short top crossbar 5, another metal washer L, and secure with a
nut J. Do not tighten completely. Repeat procedure for the other side.
G
Not actual size.
E
L
Not actual size.
J
L
1
4
4
4
1
2
2
1
2
L
E
4
L
G
L
J
5
4
4
5
5
4
