Canvas 088-1682-2 User Manual

ASSEMBLY
Step 13
Requires
14, 19, 20, C, I, O, P, Q, R.

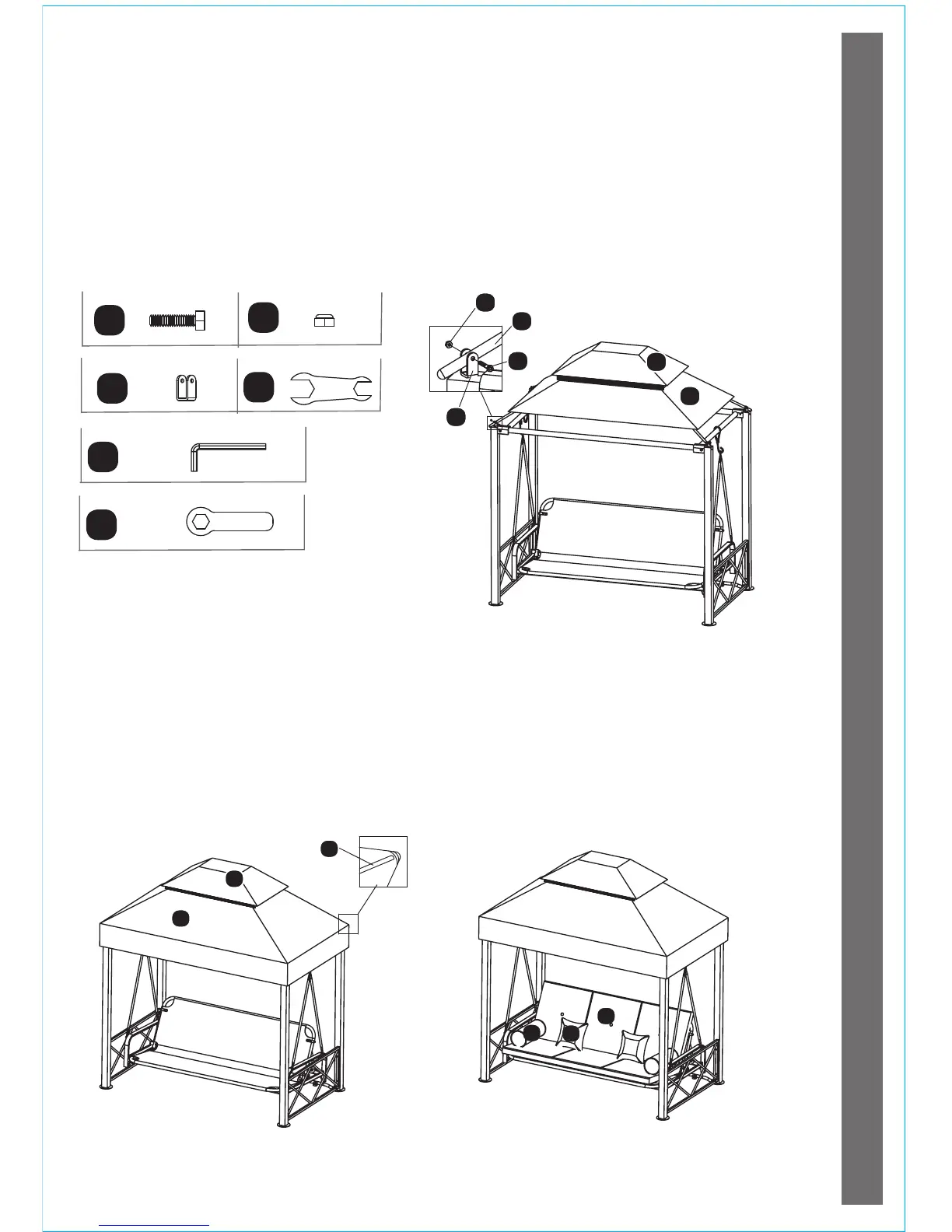

Place the assembled canopy top frame on the assembled swing frame. Insert a
bolt C through one side of the U shaped bracket O at the top of the leg, through
the canopy frame bar 14, through the other side of the U shaped bracket, and
secure with a nut I. Do not completely tighten. Repeat procedure for the
remaining 3 canopy frame bars 14. Tighten all bolts and nuts from step 1 to
step 13 using the wrenches.
Step 14
Requires
14, 17, 18, 19, 20, 22.
12
MODEL NO. 088-1682-2
C
I
19
20
14
I
C
O
19
20
14
17
18
22
Not actual size.
P
Q
R
Insert the large canopy frame 14 into the large canopy 19 and 20.
Put cushion 17, pillow 18 and throw pillow 22 on.
O
