Canvas 088-1682-2 User Manual

ASSEMBLY

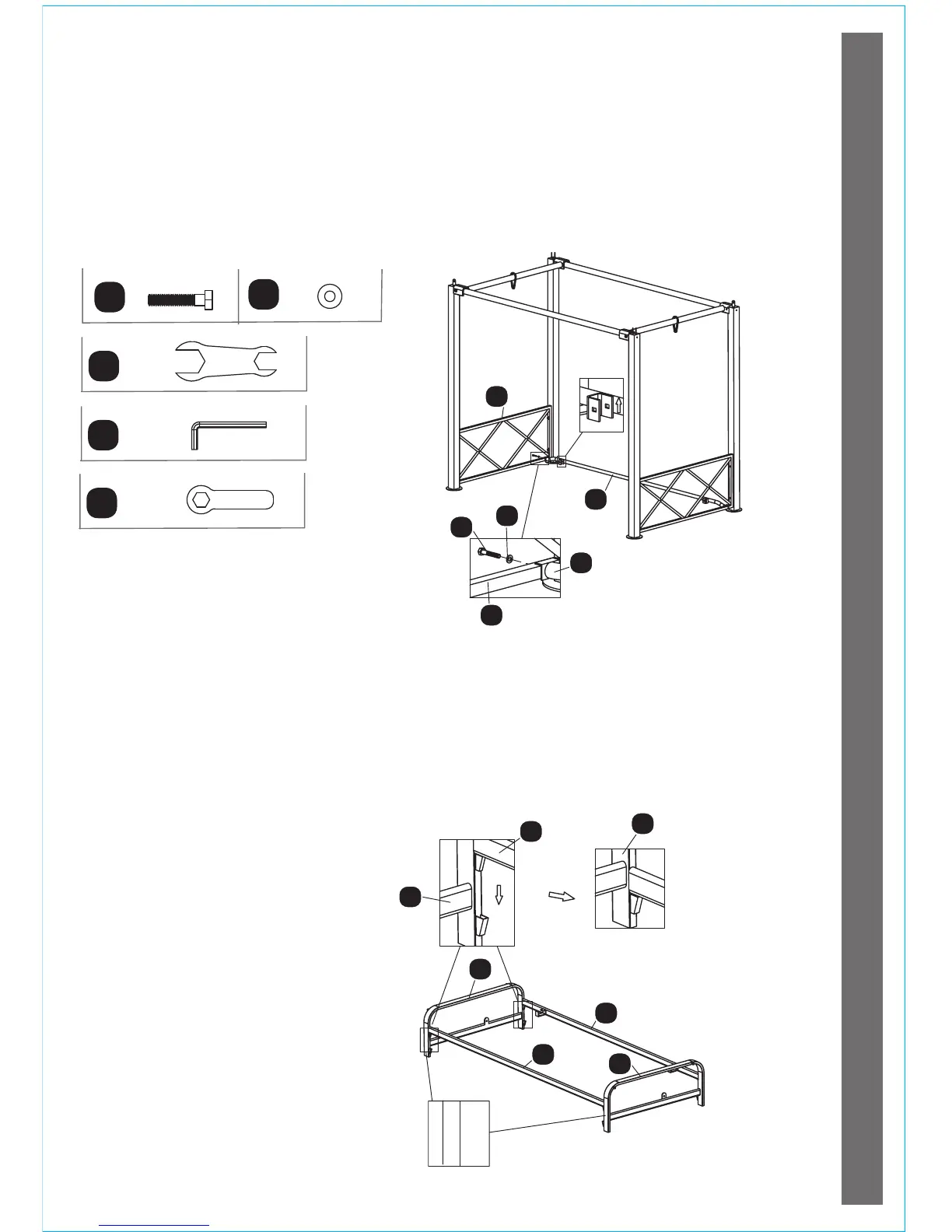

Step 5
Requires
3, 6, D, K, P, Q, R.
Place the rear leg crossbar 6 between the side panels 3. Line up the holes.
Insert a bolt D through a metal washer K, through the side panel 3, and secure
into the rear leg crossbar 6. Do not tighten completely. Repeat procedure for
the other side. Tighten all bolts and nuts from step 1 to step 5 by using the
wrenches provided (except bolt A).
D
K
Not actual size.
Step 6
Requires
7, 8, 9, 10.
Lay out the right arm 7, left arm 8, front seat support bar 9 and rear seat
support bar 10. Make sure that the labels marked “FRONT’’ on the arms and
seat support bars are all facing the front edge of the seat. Attach the seat
support bars to the arms by pressing the tabs on the ends of the seat support
bars down into the brackets on the arms. Make sure they are securely seated.
8
MODEL NO. 088-1682-2
P
Q
6
3
K
D
6
3
FRONT
8
7
10
9
7
10
7
R
