ASSEMBLY

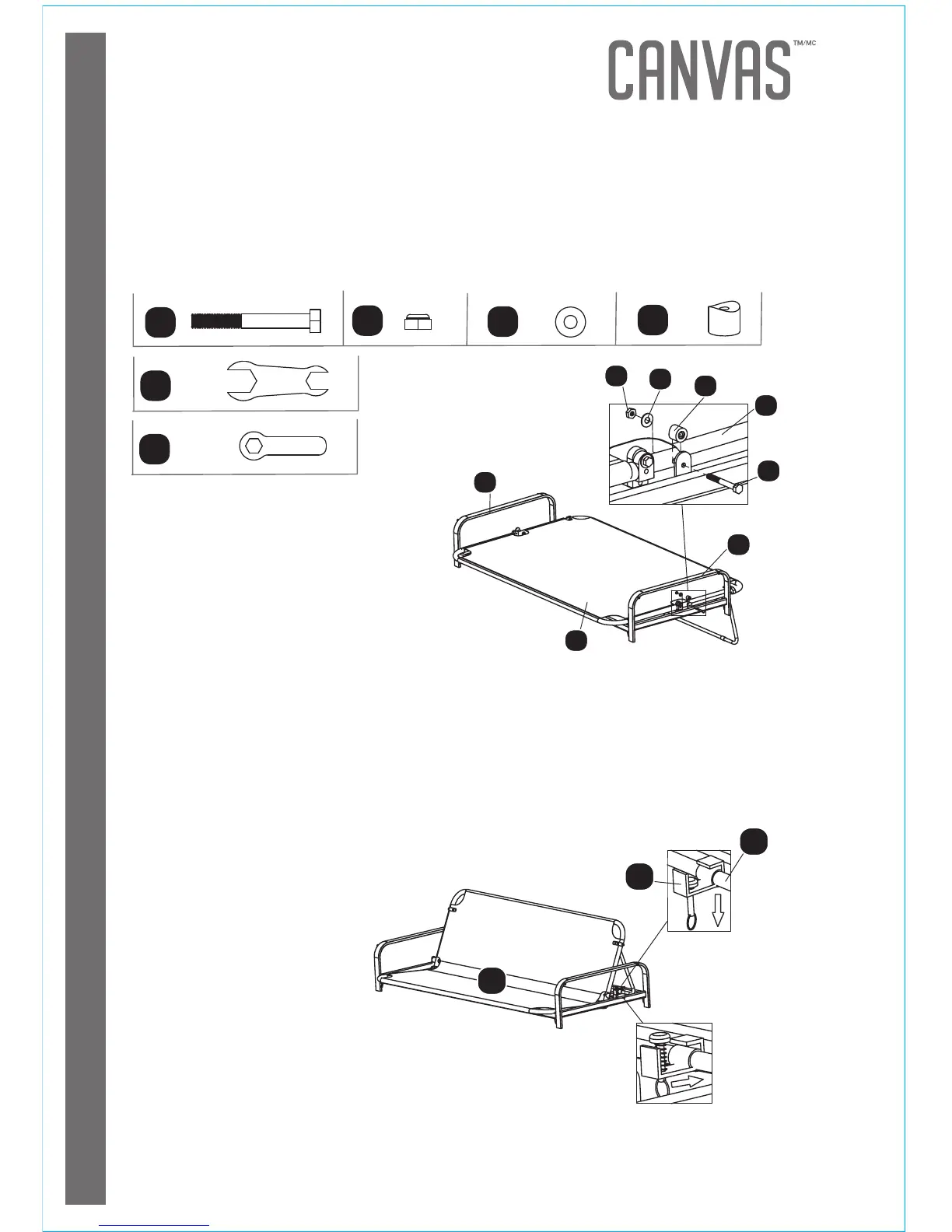

Step 7
Requires
7, 8, 11, H, J, L, M, P, R.
Unfold the seat and back 11 and lay it on top of the frame. Line up the holes
in the arms 7 and 8 with the holes in the side tubes of the seat and back 11.
Insert a bolt H (from outside to inside) through the bracket of the arm, through
a plastic washer M, through the side bar on the seat and back, through a metal
washer L and secure with a nut J. Do not tighten completely. Repeat procedure
for the other side. Then securely tighten the bolts and nuts.
9
Step 8
Requires
10, 11.
Raise the back side of the seat and back 11 and fasten the U-shaped bracket of the
back support tube to the rear seat support bar 10 as per the drawing.
H
J
L
M
11
J
L
M
H
8
11
7
11
11
10
Not actual size.
P
R
