22 23
PRODUCT NO. 088-1760-6
ASS E MBLY

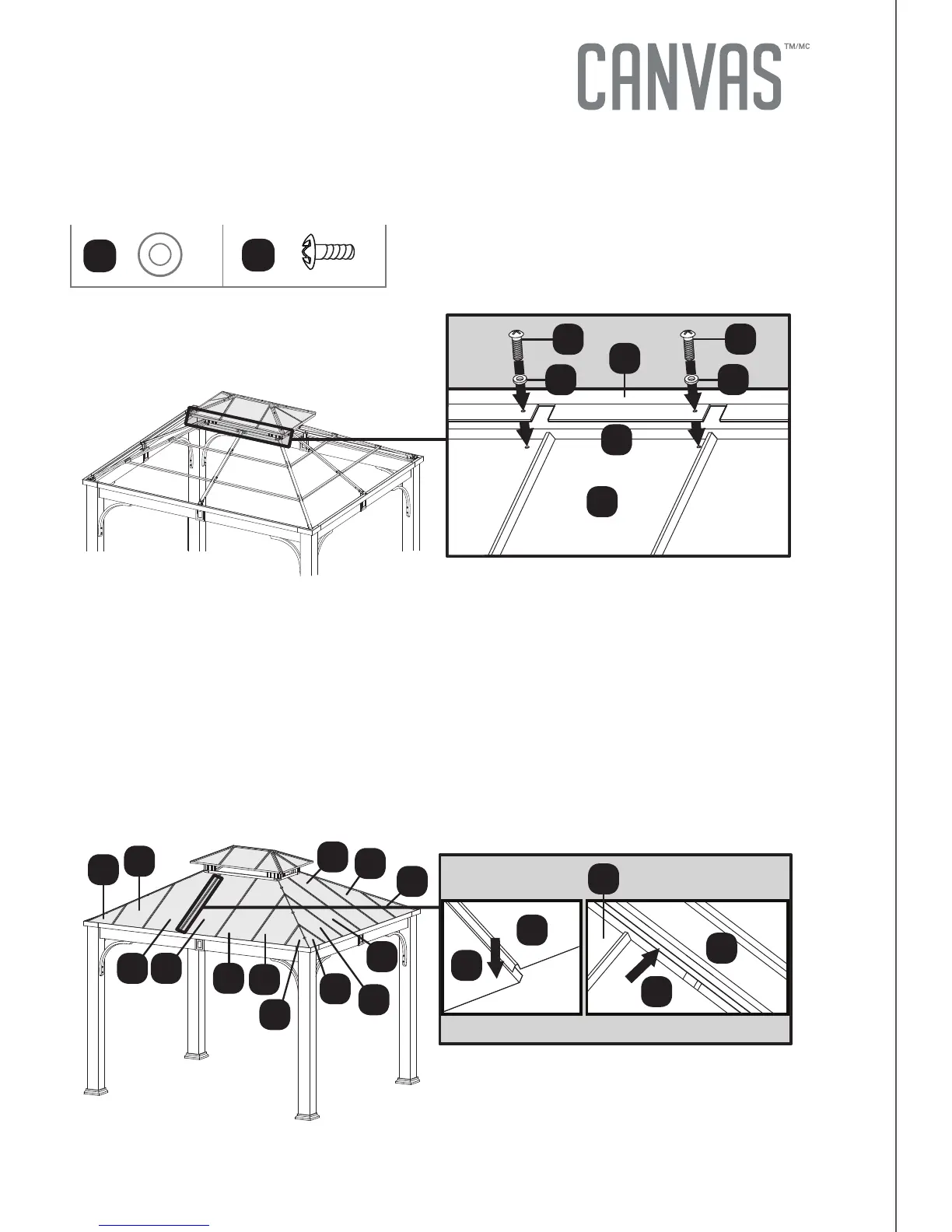

Step 31
Requires J1, J2, X1, X2, X3, X4, X5, X6, X7
Attach Big cover (X1) to Big top roof big panel (X2) from right to left. Insert
(X1, X2) into U shape on the frame (J1, J2). Repeat the same procedure and
follow the callout sequence in figure below to attach all the other big top roof
panels (X3, X4, X5, X6, X7).
X4
X2
X3
X6
X1
X5
X6
X7
X4
X2
X3
X5
X7
J2
X1
X1
X2
X2
Step 30
Requires K1, Q1, BB, CC
Attach Small roof covers (Q1) to Small roof top beams (K1) using M6x15 screws
(CC) and M6 washers (BB).
CC
Q1
W2
BB
CC
BB
K1
BB
CC
To Next Page
