PRODUCT NO. 088-1760-6
ASS E MBLY

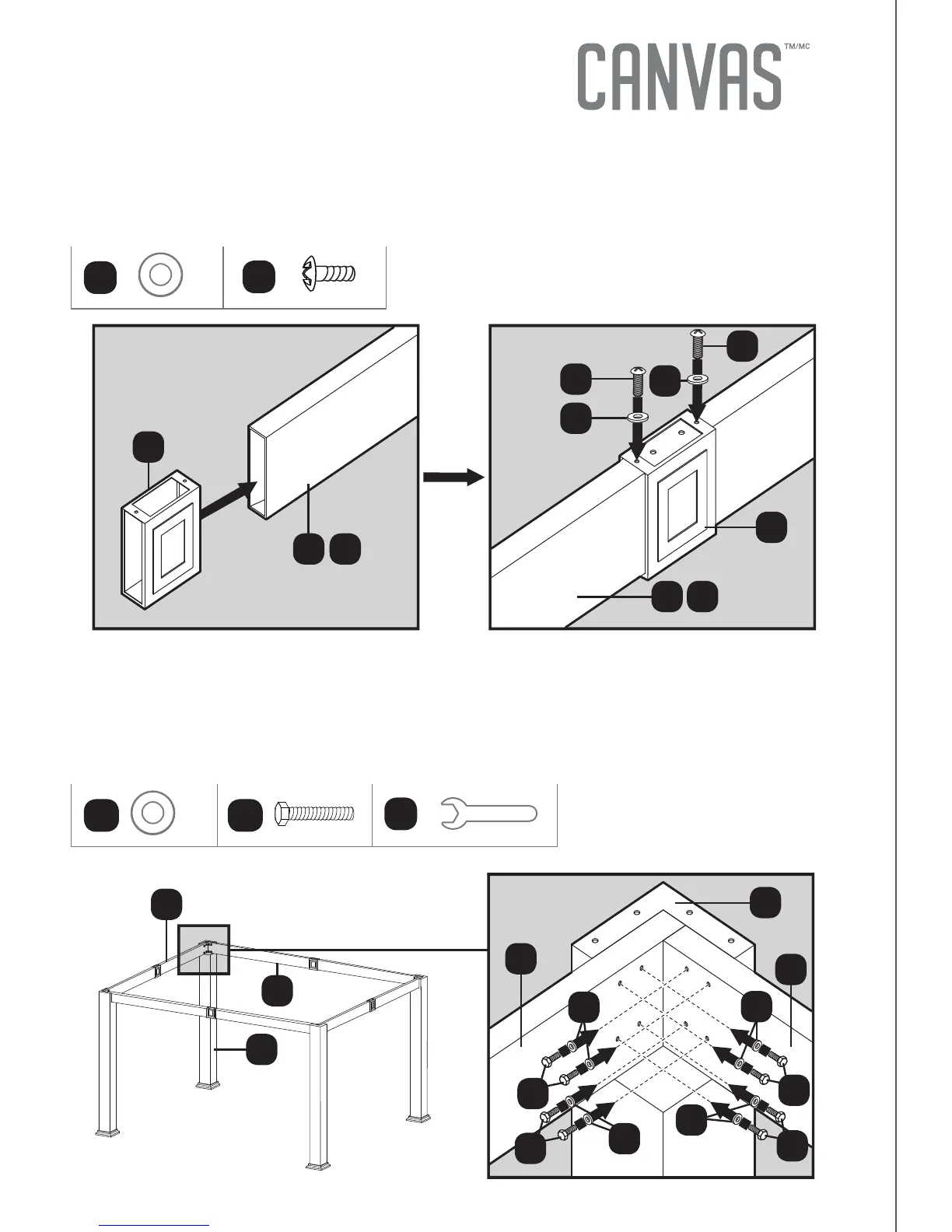

Step 2
Requires D1, D2, T, BB, CC
Slide the Cutting sleeve (T) into the centre of each Beam for long side (D1) and
each Beam for short side (D2). Attach in the centre aligning the outer holes
using M6x15 screws (CC) and M6 washers (BB).
BB
CC
BB
CC
T
D2
CC
BB
T
D1
D1
D2
Step 3
Requires A, D1, D2, BB, EE, Z
Attach Beam for long side (D1) and Beam for short side (D2) to Posts (A) using
M6x45 bolts (EE) and M6 washers (BB). Tighten the bolts using the wrench (Z).
D2
D1
BB
BB
BB
BB
EE
EE
EE
EE
D1
A
A
D2
EE
Z
BB
