PRODUCT NO. 088-1760-6
ASS E MBLY

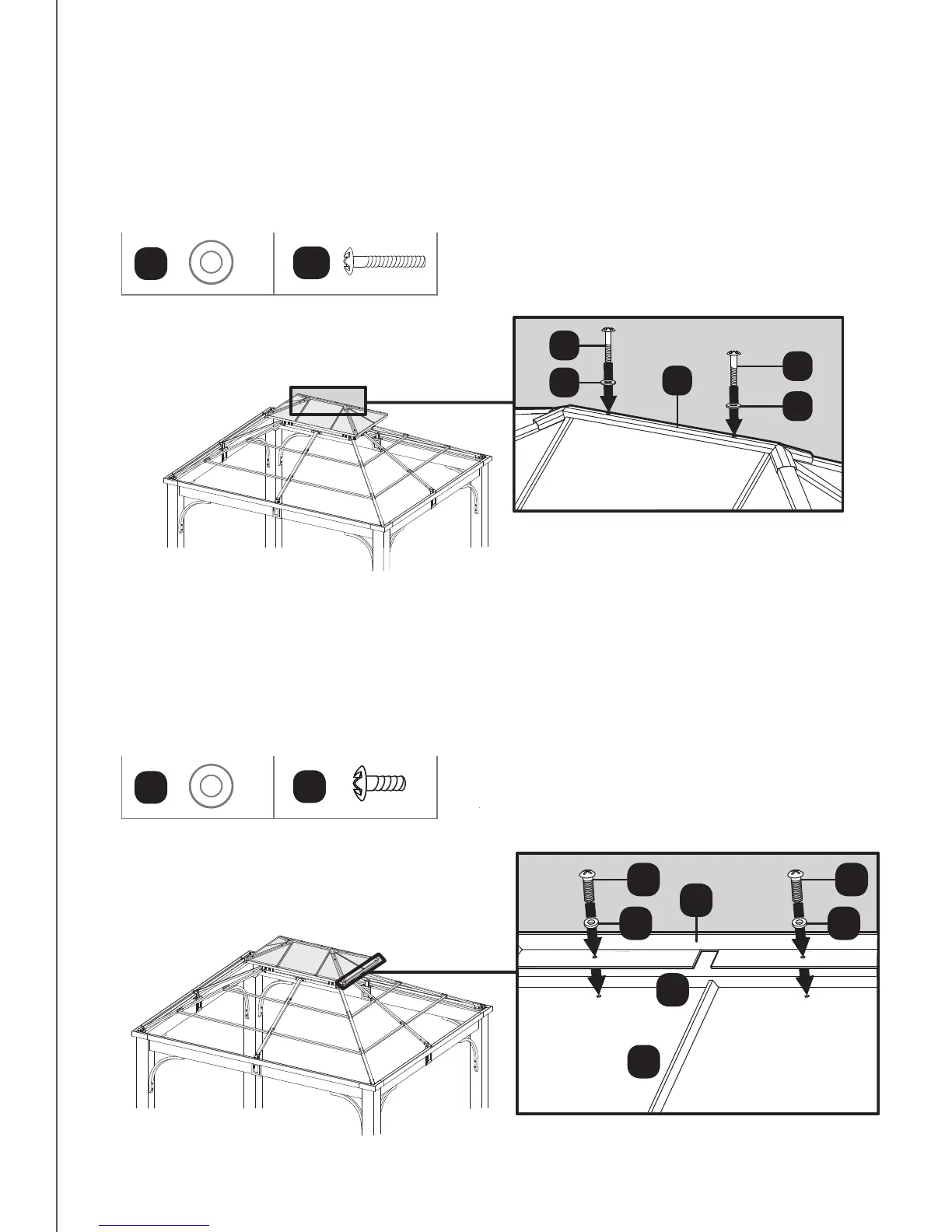

Step 29
Requires K2, Q2, BB, CC
Attach Small roof covers (Q2) to Small roof top beams (K2) using M6x15
screws (CC) and M6 washers (BB).
CC
Q2
W1
BB
CC
BB
K2
Step 28
Requires N1, BB, HH
Attach Small top roof cover (N1) to small top using M6x40 screws (HH) and M6
washers (BB).
N1
HH
HH
BB
BB
BB
HH
BB
CC
