PRODUCT NO. 088-1760-6
ASS E MBLY

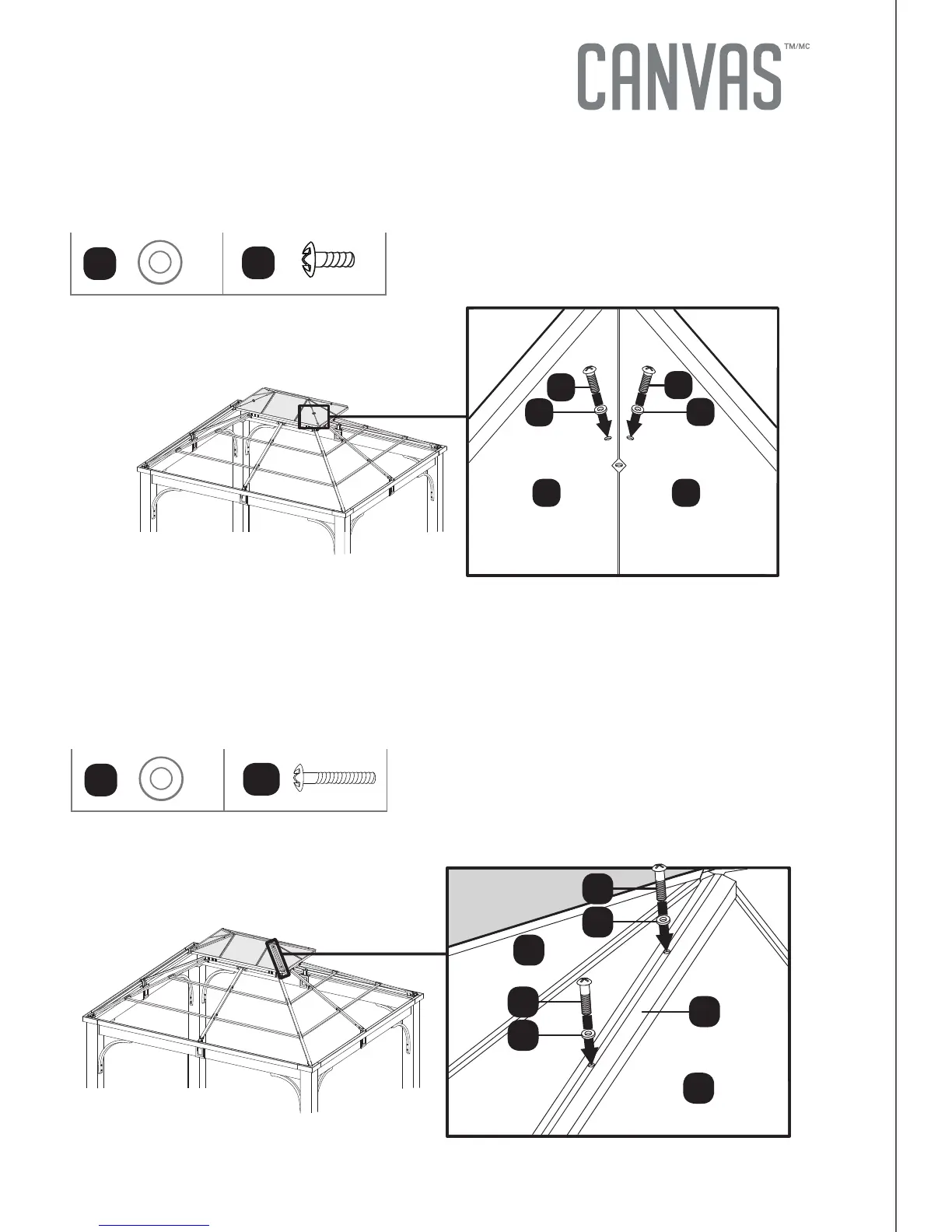

Step 27
Requires N2, BB, HH
Place Small top cover for slanting bars (N2) on Small top roof panels (W1, W2).
Attach using M6x40 screws (HH) and M6 washers (BB).
N2
W1
W2
HH
BB
HH
BB
Step 26
Requires F2, W1, W2, BB, CC
Attach Small top roof panels (W1, W2) to Slanting bar for small roof (F2) using
M6x15 screws (CC) and M6 washers (BB).
W2
CC
BB
CC
BB
W1
BB
CC
BB
HH
