16 17
PRODUCT NO. 088-1760-6
ASS E MBLY

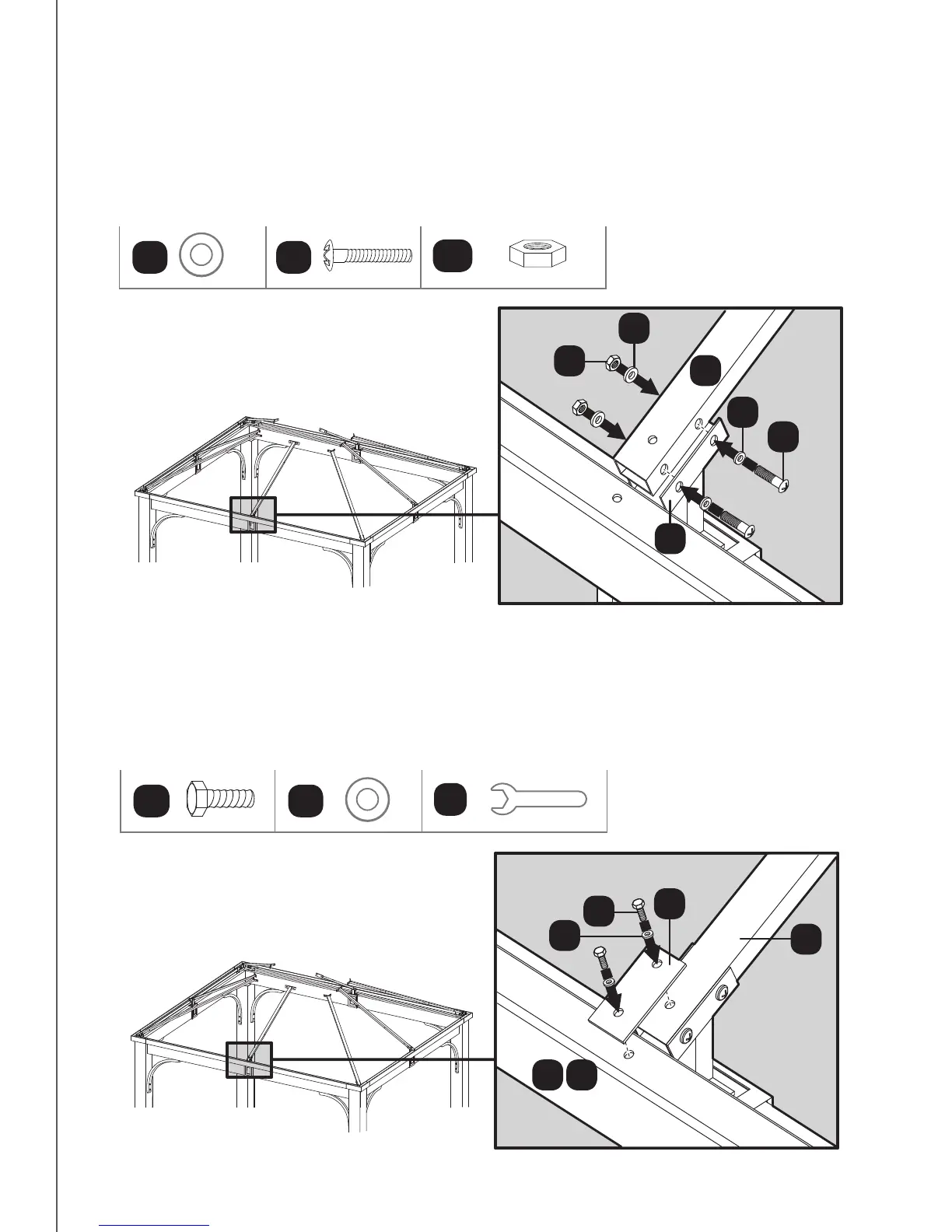

Step 17
Requires E1, E2, G, S, AA, BB, Z
Place the Lower middle beam connectors (S) into the slot on the Middle bar for
large roofs (G) and Decorative grooves (E1, E2), then attach using M6x15 bolts
(AA) and M6 washers (BB). Tighten the bolts using the wrench (Z).
AA
S
G
E1 E2
BB
Step 16
Requires G, I, BB, FF, GG
Attach the lower end of Middle bar of large roofs (G) to Lower middle beam
connectors (I) using M6x55 screws (FF), M6 washers (BB) and M6 nuts (GG).
FF
BB
G
I
BB
GG
FF
GG
BB
BB
Z
AA
To Next Page
