PRODUCT NO. 088-1760-6
ASS E MBLY

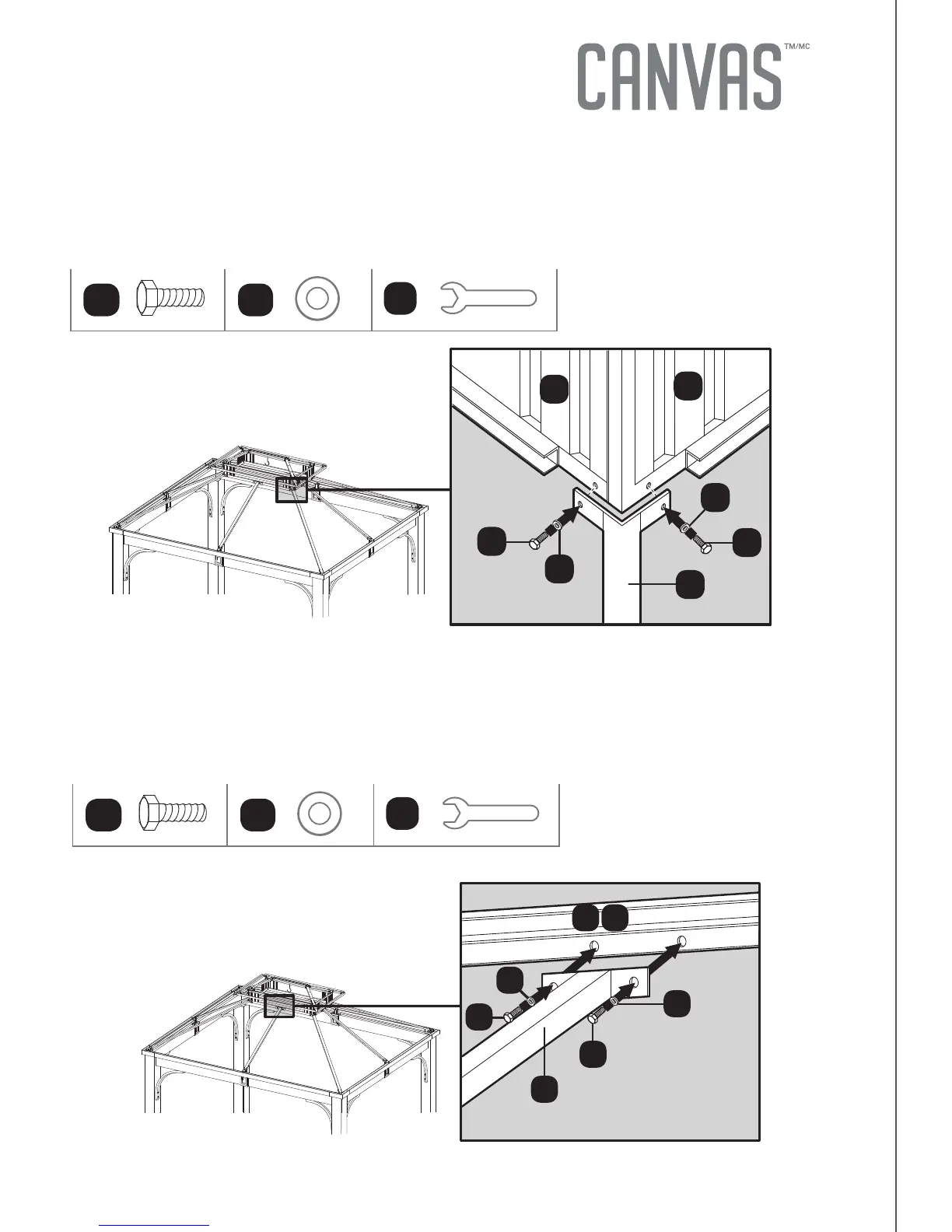

Step 18
Requires F1, G, J1, J2, AA, BB, Z
Place the assembled frame (J1, J2) over the Slanting bar for large roofs (F1),
then attach the upper end of the Slanting bar for large roof (F1) to the corner
of frame (J1, J2) using M6x15 bolts (AA) and M6 washers (BB). Tighten the
bolts using the wrench (Z).
Step 19
Requires G, J1, J2, AA, BB, Z
Attach the upper end of the Middle bar for large roofs (G) to the middle of the
frame (J1, J2) using M6x15 bolts (AA) and M6 washers (BB). Tighten the bolts
using the wrench (Z).
AA
AA
BB
G
J1 J2
BB
J1
J2
AA
BB
AA
BB
F1
BB
BB
Z
Z
AA
AA
To Next Page
