INSTALLATION
Prepare for the installation:

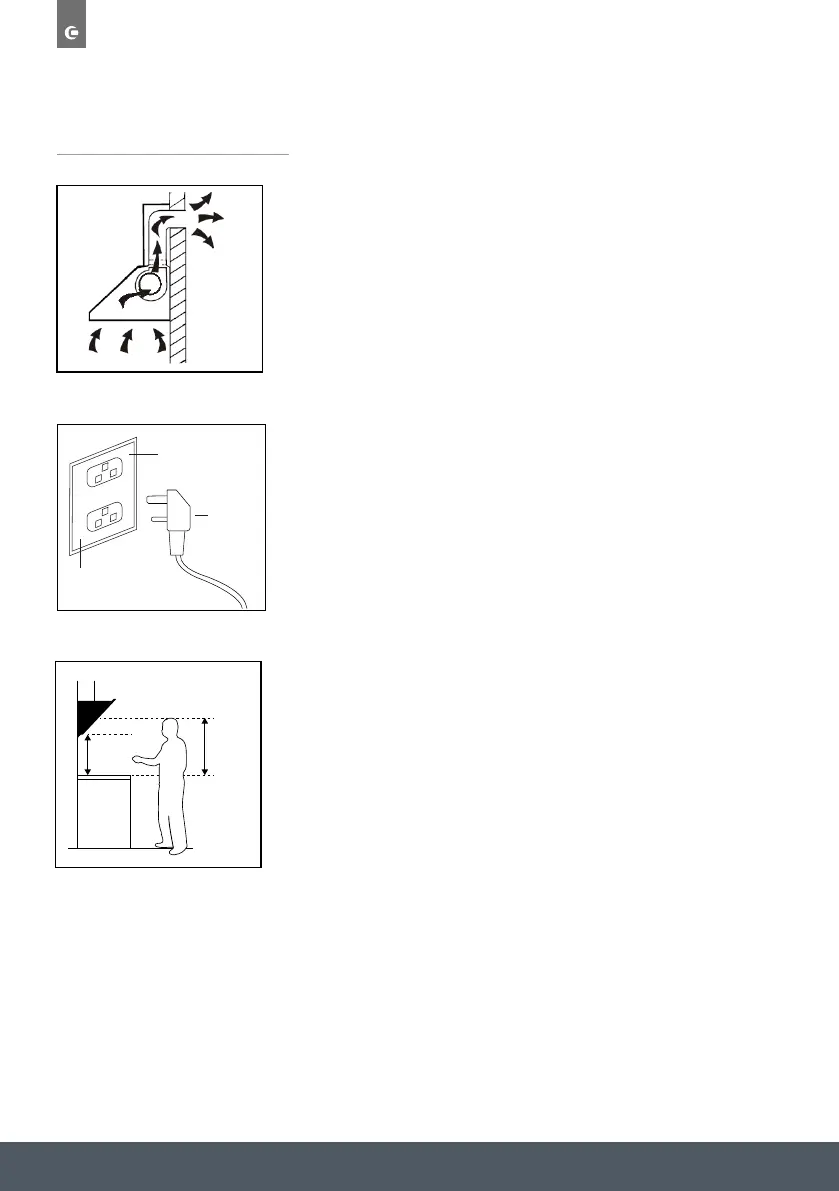

If you have an outlet to the outside, your cooker hood can be
connected as per the below picture by means of an extraction
duct with an interior diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be placed at a minimum distance
of 650~760mm above the hob. It is the manufacturer of the
hob who determines the clearance required and the clearance
quoted by the hob manufacturer must be followed. In the
absence of any instructions supplied with a gas hob the
minimum distance between the hob and the hood must be at
least 760mm.
4

 
 
 

 
 
            
          
            



Earthed Outlet Box
Earthed Plug
Earthed Outlet
435-545mm
650-760mm
