Please keep this instruction manual for future reference
INSTALLATION
Prepare for the installation:

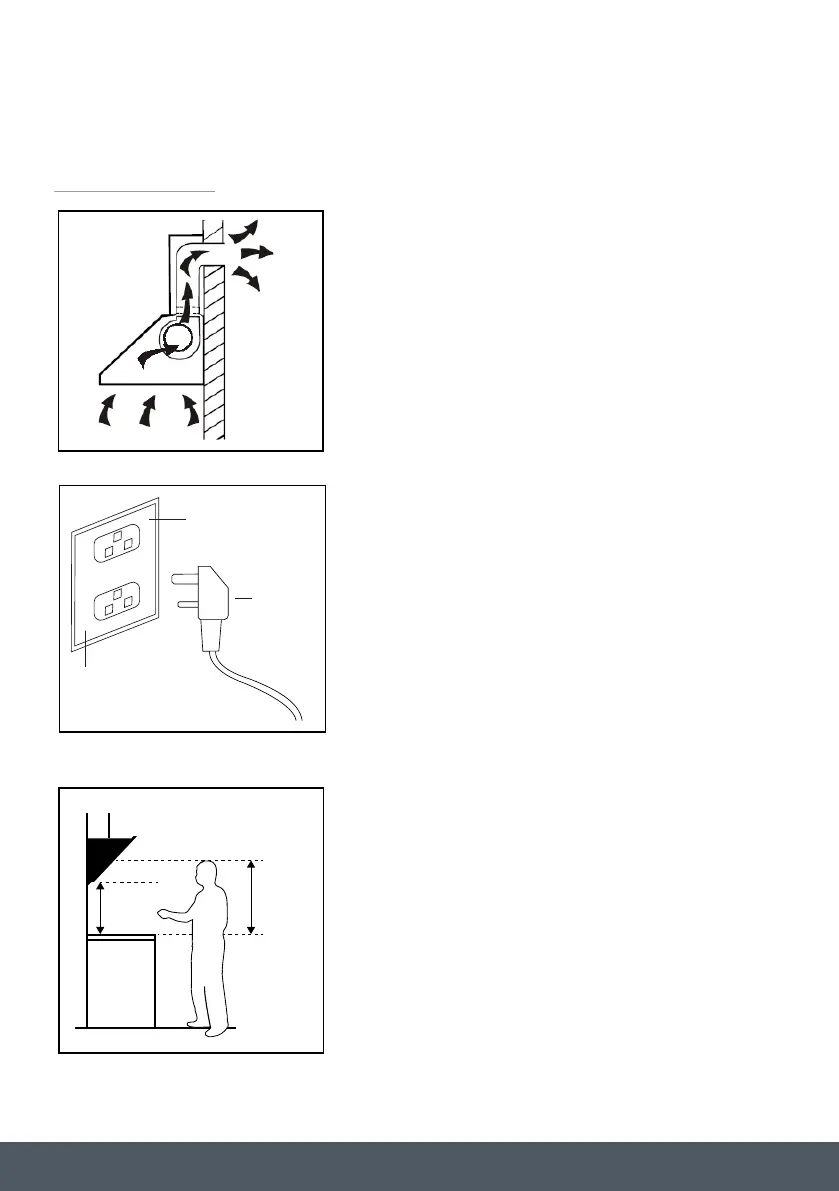

If you have an outlet to the outside, your cooker hood can
be connected as per the below picture by means of an
extraction duct with an interior diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be installed so that there is a
space
of 650-760mm from the centre of the mesh grease filters
to the hob (435-545mm from the bottom of the hood to
the hob). It is the manufacturer of the hob who determines
the clearance required and the clearance quoted by the
hob manufacturer must be followed. In the absence of any
instructions supplied with a gas hob the minimum distance
between the hob and the centre of the mesh grease filters
must be at least 760mm.
4
435-545mm
650-760mm
Earthed Outlet Box
Earthed Plug
Earthed Outlet
