IMPORTANT:
› Position the mains supply cable so that it is never subjected to a temperature which is more
than 50˚C above ambient temperature.
› The electrical safety of the appliance can only be guaranteed when it has been correctly
connected to an efficient earthed power supply, as instructed in the regulations for
electrical safety.
› Caple cannot be held responsible for any damage to persons or objects due to lack of an
earth connection.
ELECTRICAL CONNECTION
FITTING THE POWER SUPPLY CABLE

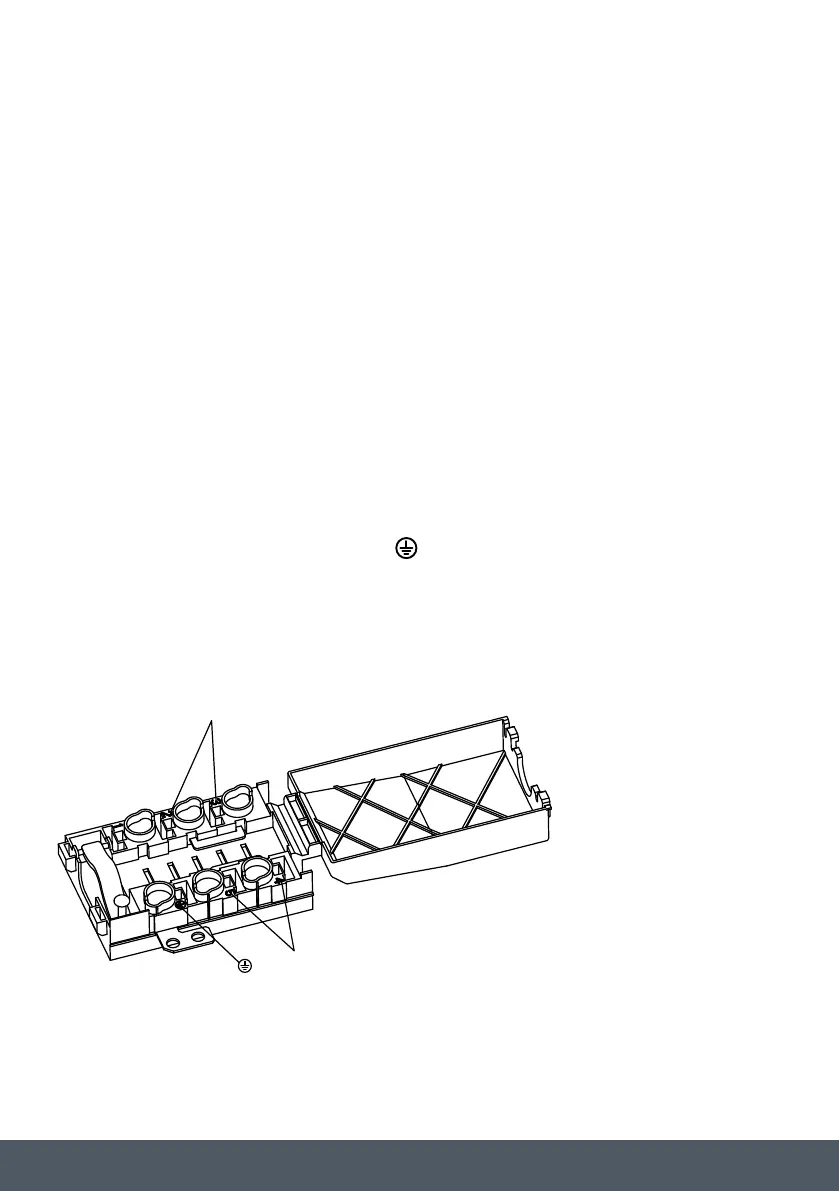

› Open the terminal box by inserting a screwdriver into the side tabs of the cover. Use the
screwdriver as a lever by pushing it down to open the cover
› Install the power supply cable by loosening the cable clight screw and the three wire contact
screws. Connect the wires to the corresponding terminals:
the Blue wire to the terminal marked ‘N’,the Brown wire to the terminal marked ‘L’ and the
yellow/green wire to the terminal marked
.
› Secure the cable by fastening the clight screw.
› Close the cover of the terminal box.
› When wiring the terminal box care must be taken to fit and tighten the links on the live (L)
and neutral (N) terminals
L
N
