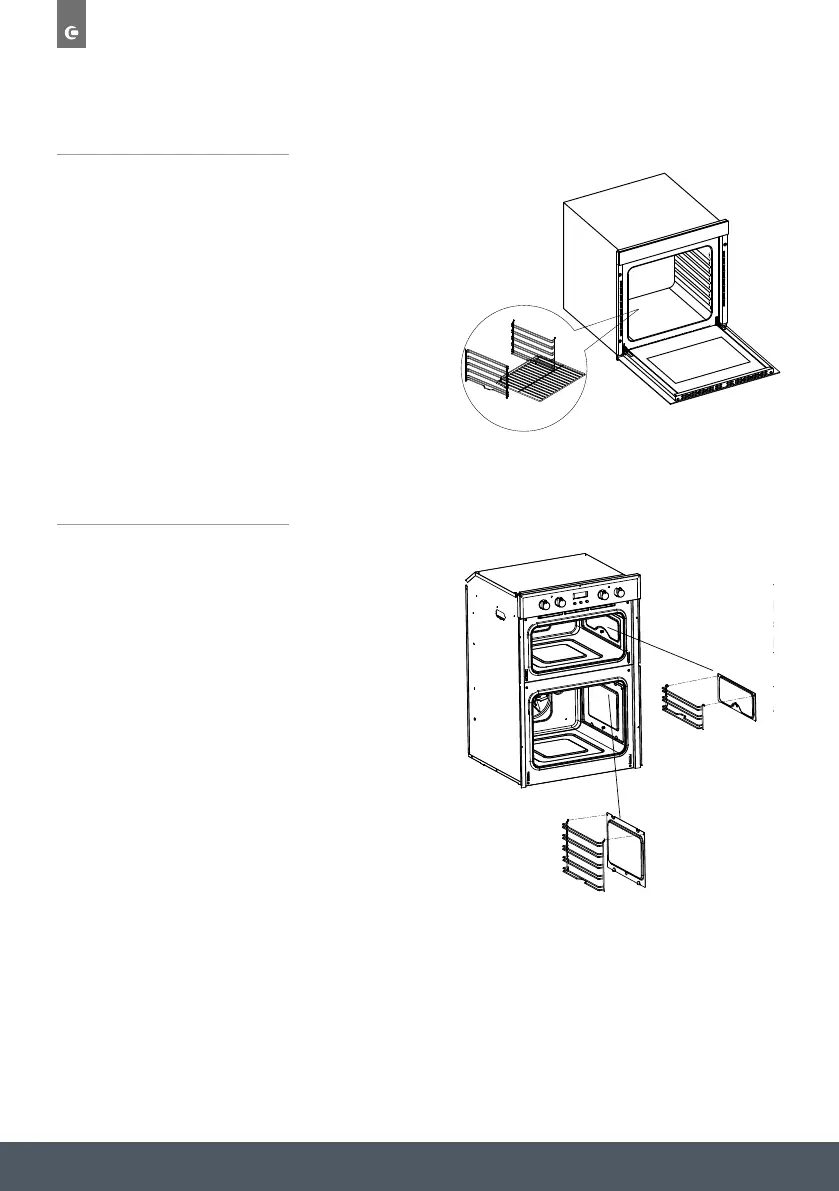

FITTING OVEN SHELVES
- Ensure shelf orientation is correct
(see image to the right)
- Slide into the oven at an angle until raised back of
shelf is past the safety stop on the side runners.
- Lower the front of shelf and push in until stop
is reached.
- To remove oven shelves, withdraw to the stop and
raise the front of shelf to clear the stop.
SIDE RACKS AND CATALYTIC LINERS
To install, align the 2 top holes in the catalytic liners
with the 2 holes in the side of the oven cavity. Once
aligned, attach the side racks by hanging these
through the set of holes, and pushing them onto the
round steel clip towards the bottom.
This will secure the catalytic liners to the sides of the
oven. To remove, unclip the side racks from the side
of the oven, and remove the catalytic liners.
To install, a 2 top holes in the with 2
holes in the side of the oven cavity. Once aligned, attach the
side racks by hanging these through the set of holes, and
pushing them onto the round steel clip towards the bottom.
This will secure the catalytic liners to the sides of the oven.
To remove, unclip the side racks from the side of the oven,
and remove the catalytic liners.
Step฀1฀
Step฀2฀
Step฀3฀
Step฀4฀
