Caple C3371 - Telescopic Runners; Side Racks and Catalytic Liners

Instruction manual C3371
29
Please keep this instruction manual for future reference
TELESCOPIC RUNNERS
To assemble the telescopic runners:
- Remove the side racks
- Choose which shelf to use with the telescopic runner.
Pay attention to the direction in which the runner is to be extracted,
position joint ‘B’ and joint ‘C’ on the frame (see Fig.1).
- Secure the two side racks with the guide rails using the holes
provided on the oven wall. The holes for the left rack are situated at
hole F1, F2 and the right rack at hole D1, D2.
- Finally, re-fit the side racks.

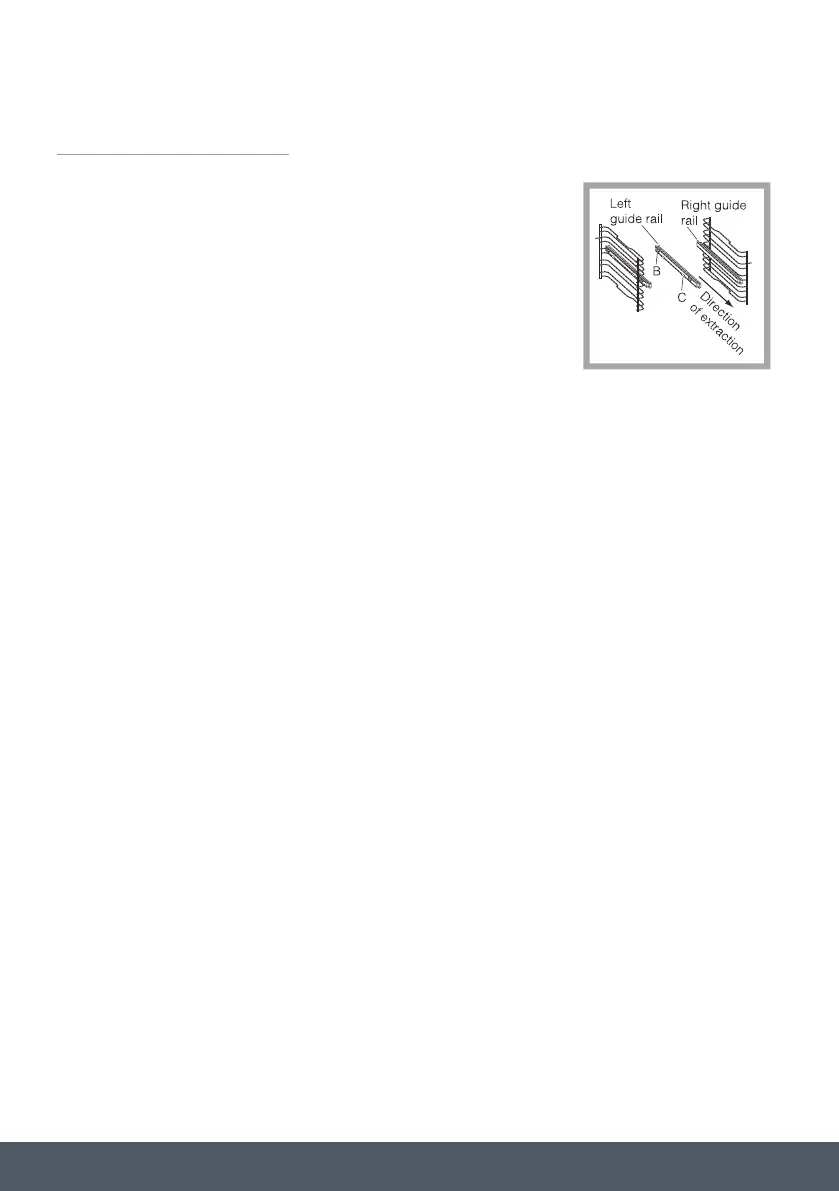

Figure 1.
Fig.1Fig.2Fig.3
D1
D2
F2
F1
