Caple C7011G - Page 16

16
Instruction manual C7011G/C7091G/C7071G/C7061G
Please keep this instruction manual for future reference
› Should the hob be installed directly under a cupboard, the cupboard should be at least 750mm
from the worktop.

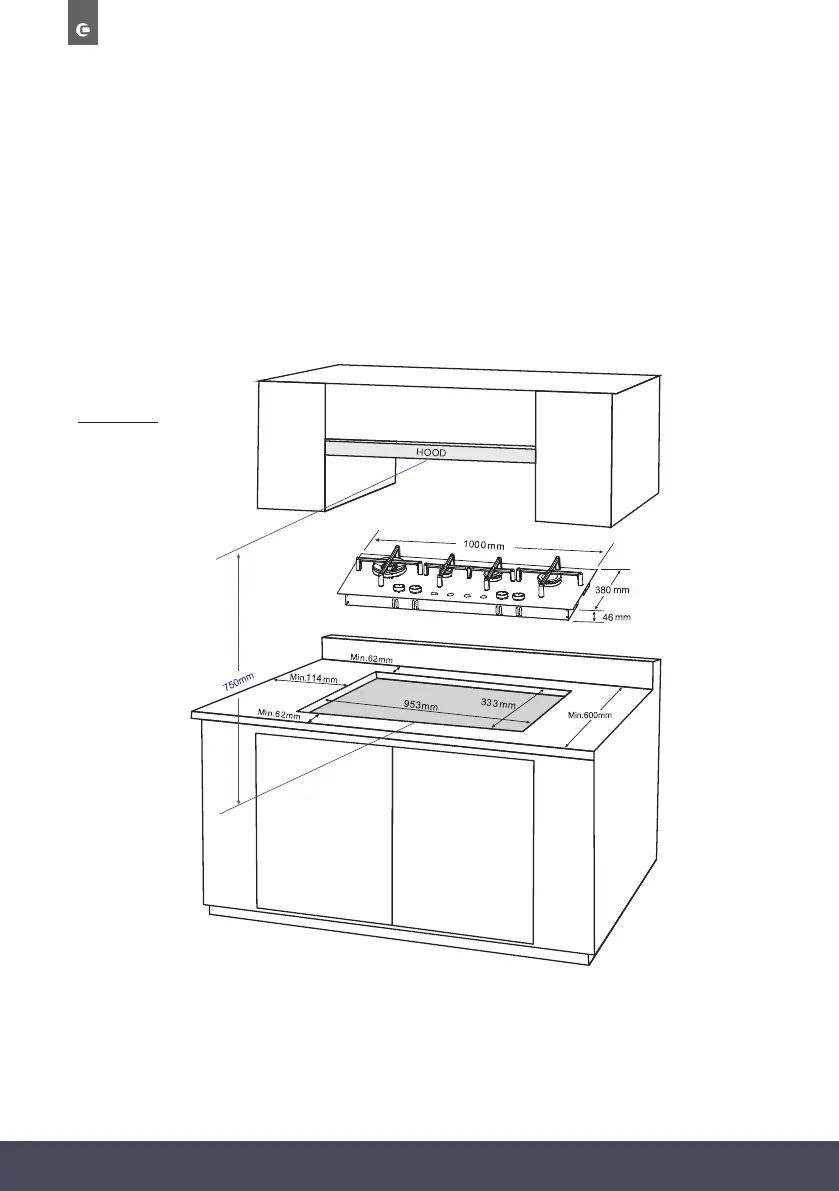

› The cut out dimensions for the worktop must be those indicated in the diagrams below.
C7011G
46
46
46
46
