Instruction manual CCH18
Please keep this instruction manual for future reference
REPLACING THE BULB
NOTE:
The lights must be replaced by a qualified person.
1. Switch off and unplug the extractor
2. Remove the aluminium grease filter
3. Remove the LED light by squeezing the metal clips.
4. Remove the clip cover by removing the lid (see image a.)
5. Unclip the light fixing (b.) and remove.
6. Replace the light with the same rated LED fitting by following these instructions in reverse.
Instruction manual CCH
Please keep this instruction manual for future reference
17
REPLACING THE BULB
TROUBLESHOOTING
Fault Cause Solution
The lights on, but
the fan does not
work
The fan blade is jammed
Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only.
The motor is damaged
The lights and fan
do not work
A blown fuse Replace the fuse
The power cord is loose
Plug in to the power supply
again
Serious vibration
of the unit
The fan blade is damaged
Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only
The fan motor is not fixed
tightly.
Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only
The unit is not hung
correctly on the bracket
Take down the unit and check
whether the bracket is in the
correct location.
The extraction
performance is
not good
The filter requires
cleaning
Clean the grease filter as
directed in the ‘Care and
maintenance’ section. Replace
the charcoal filter (if in
recirculation mode)
If the above table has not solved the problem please contact Caple Service by
phone on 0119 938 7420 or by email service@caple.co.uk




 






  
CCH_v3.indd 17 15/06/2018 16:37

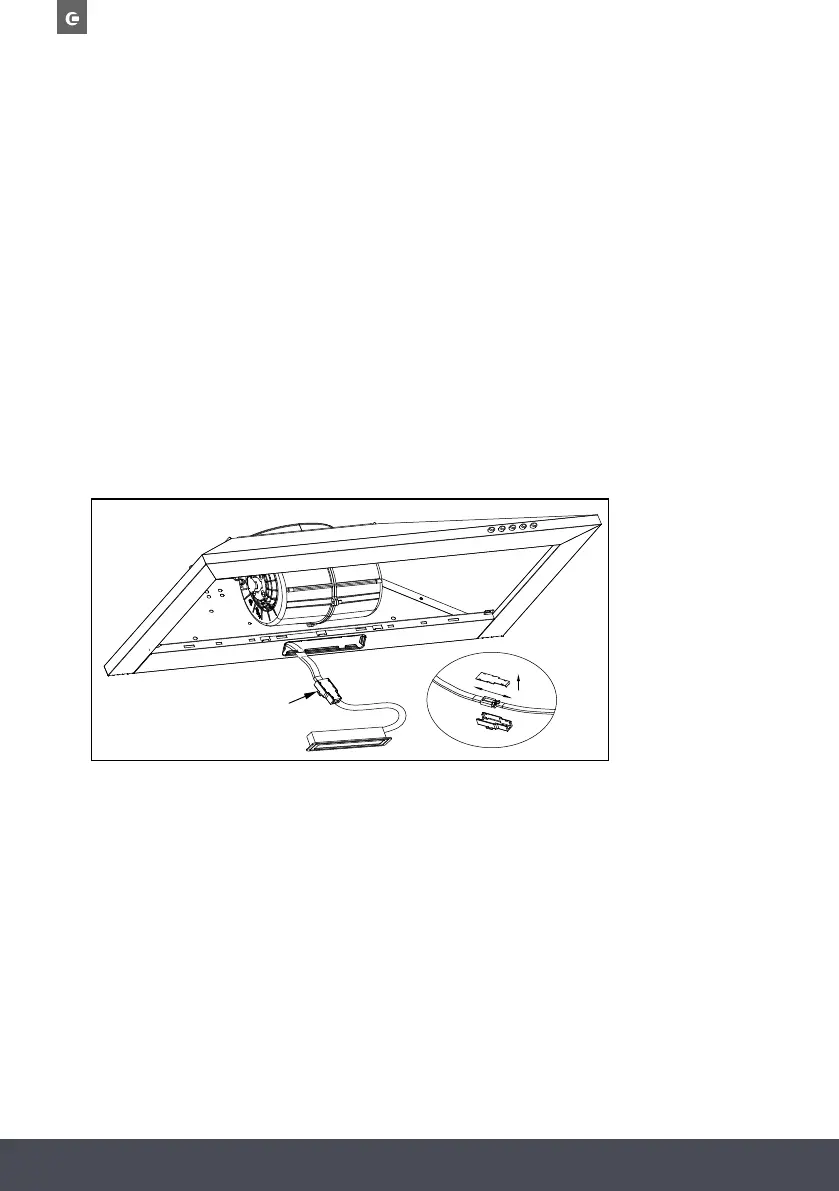

1. Switch off and unplug the extractor
2. Remove the aluminium grease filter
3. Remove the LED light by squeezing the metal clips
4. Remove the clip cover by removing the lid (see
image a.)
5. Unclip the light fixing (b.) and remove
6. Replace the light with the same rated LED fitting
by following these instructions in reverse.
a
.
b
.
