Instruction manual CGC611 CGC711 CGC911
12
Please keep this instruction manual for future reference

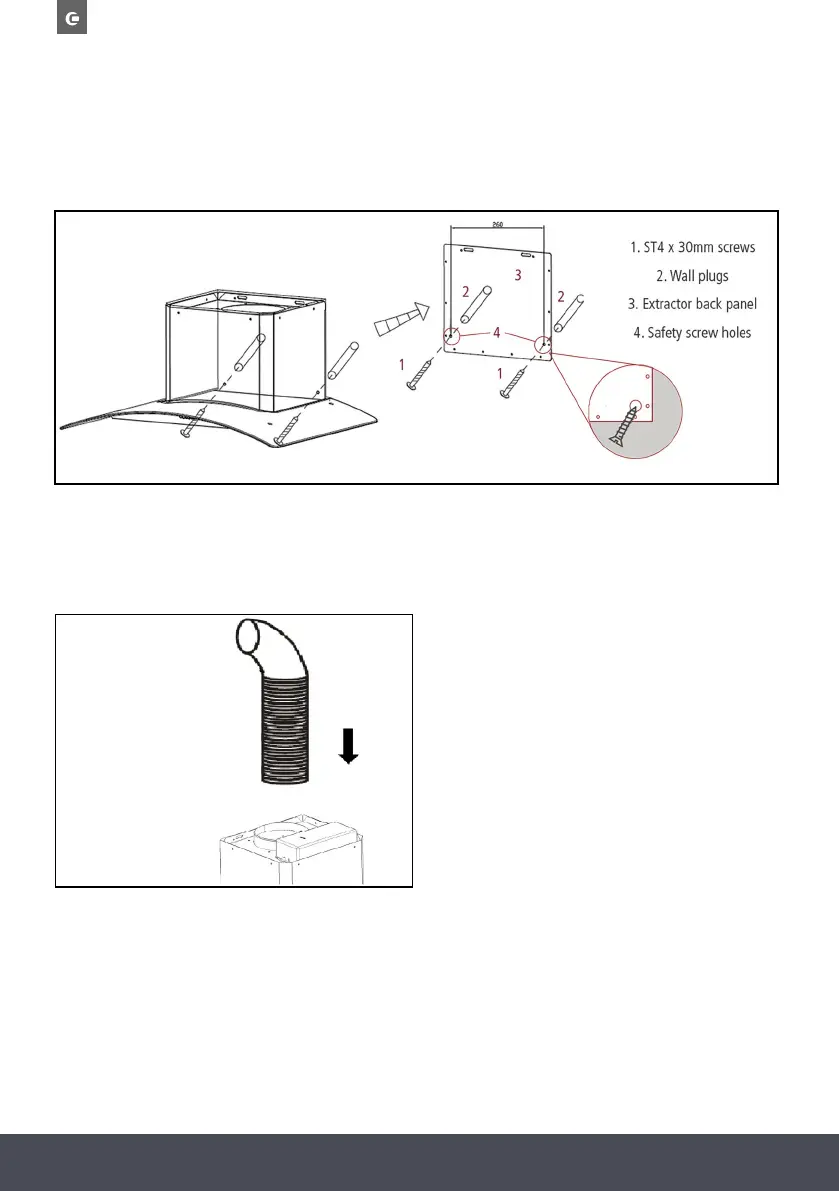

After hanging the hood on the bracket, remove the grease filters, mark 2 holes inside the hood for
safety screws. After marking, remove the hood, drill two holes and insert 2 wall plugs and finally
fix the safety screws with 2 screws (ST4x30mm).
Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the
one-way-valve as shown below.
6
 






          

Exhaust pipe
Cooker hood
Exhaust Pipe
Cooker Hood
