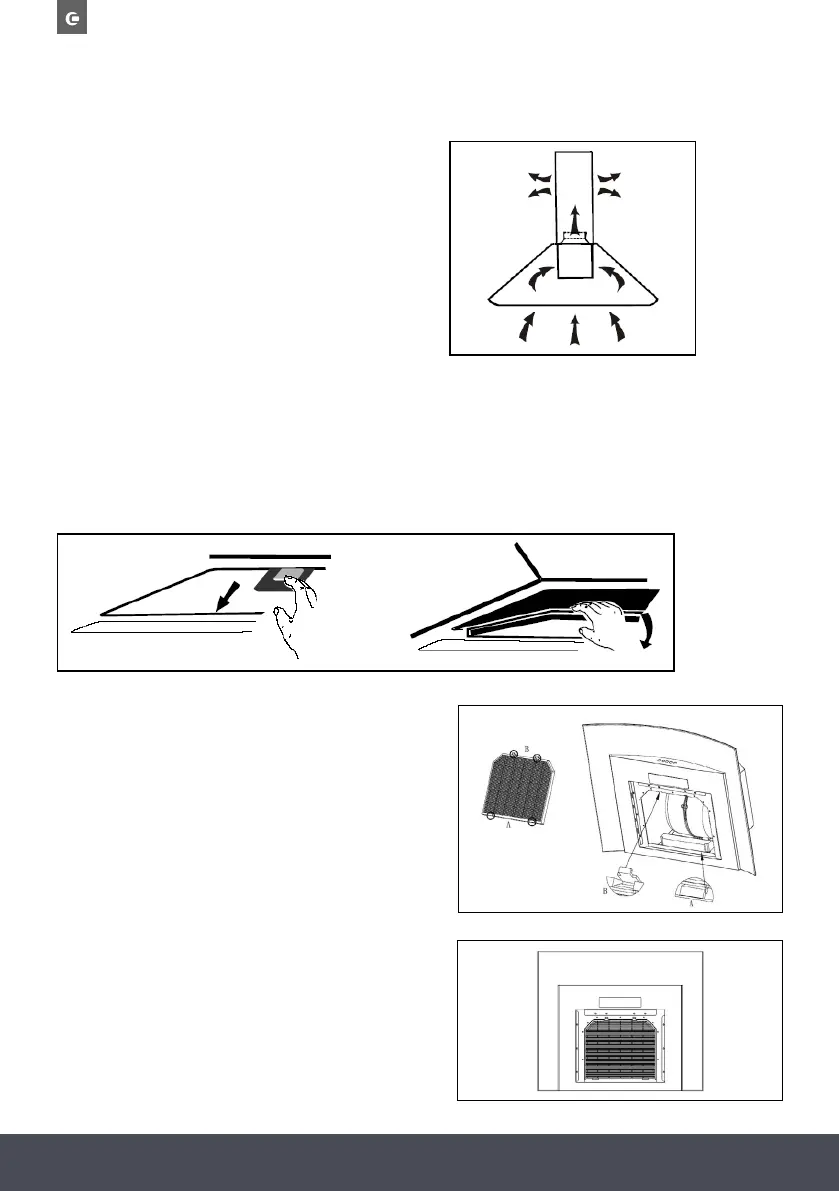

INSTALLATION – RECIRCULATION MODE
If you do not have an outlet to the outside, the
exhaust pipe is not required (as shown in the
section “Installation - ducted”), and charcoal filters
must be installed.
INSTALLING THE CHARCOAL FILTER (CAP75CF)
An activated charcoal filter can be used to trap odours. In order to install the charcoal filter, the
grease filter should be detached first. Press the release button and pull it downward as shown
below.
To fit the charcoal filter, line up part A of the charcoal filter with the rear bar, and part B of the
filter with the front of the hood. Push the filter into
this space to secure it. There are 2 clips on part B
which lock the filter into place once it has been
pushed in.
After assembly, the charcoal filter should be as below:
NOTE:
Make sure the filter is securely fitted. Otherwise, it
could loosen and fall out. This could cause damage
to the appliance and danger to the user. When the
activated charcoal filter is used, the extraction rate
will be lower.
8
 

, and
charcoal filters must be installed.
9
 (CAP61CF)






 

 

 We recommend replacing these filters every 6 months. Replacement
filters (CAP61CF) can be purchased directly from www.caple.co.uk
To fit the charcoal filter, line up part A of the charcoal filter with the rear bar, and part B
of the filter with the front of the hood. Push the filter into this space to secure it. There
are 2 clips on part B which lock the filter into place once it has been pushed in.
harcoal uld be
ely fitted. could and fall out. This could
cause damage to the appliance and danger to the user. the a charcoal
is used, extraction rate
Charcoal filter
To fit the charcoal filter, line up part A of the charcoal filter with the rear bar, and part B
of the filter with the front of the hood. Push the filter into this space to secure it. There
are 2 clips on part B which lock the filter into place once it has been pushed in.
harcoal uld be
ely fitted. could and fall out. This could
cause damage to the appliance and danger to the user. the a charcoal
is used, extraction rate
Charcoal filter
