Caple CR 9100 - Page 31

31

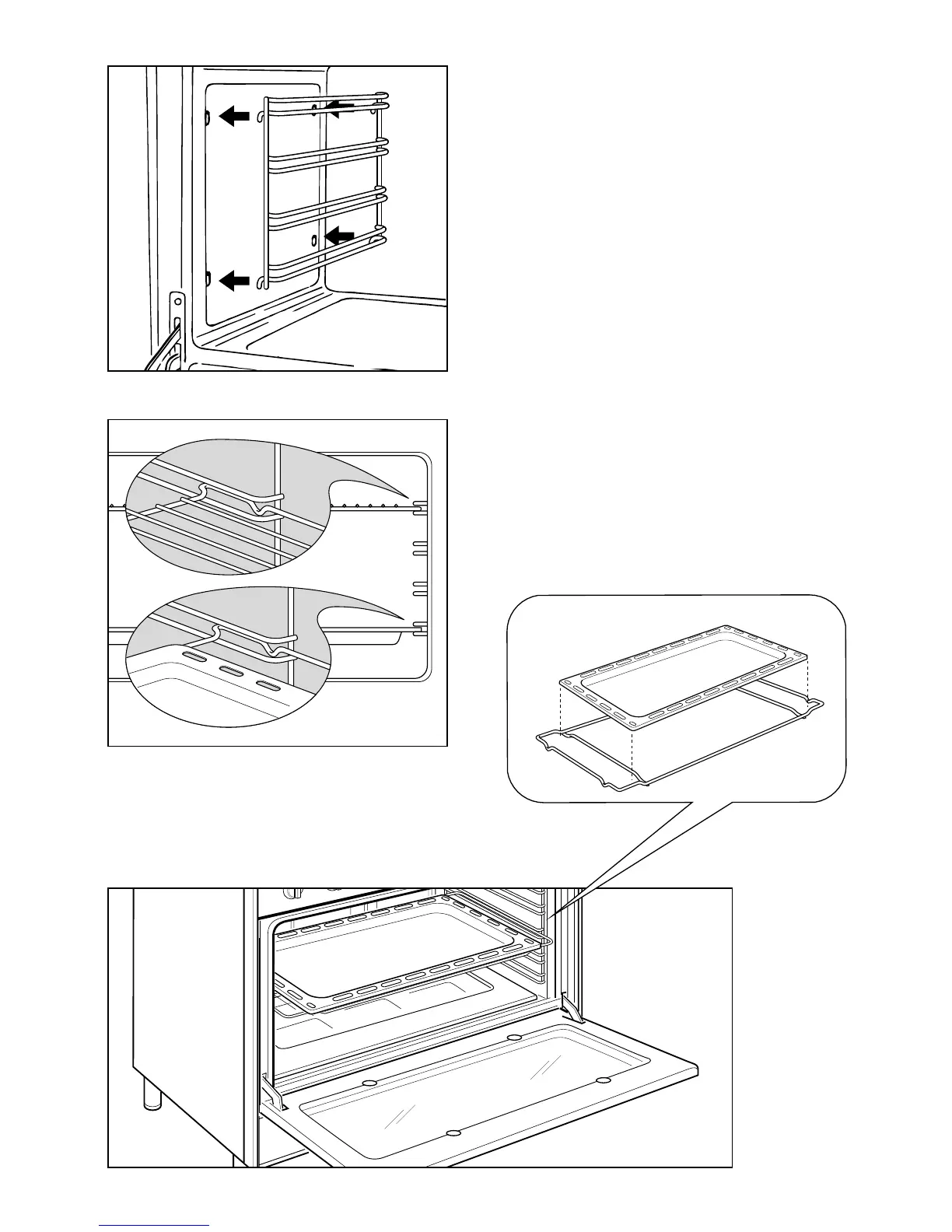

OVEN TRAY
The oven tray must be correctly placed
on its wire shelf support (fig. 7.10) then
insert into the side runners (fig. 7.11).
Fig. 7.11
ASSEMBLY AND DISMANTLING OF
THE SIDE RUNNER FRAMES
– Fit the side runner frames into the
holes on the side walls inside the
oven (Fig. 7.8).
– Slide the tray and rack into the run-
ners (Fig. 7.9).
– To dismantle, operate in reverse
order.
Fig. 7.8
Fig. 7.9
Fig. 7.10
