7
FITTING THE ADJUSTABLE FEET
The adjustable feet must be fitted to the
base of the cooker before use.
Rest the rear of the cooker an a piece
of the polystyrene packaging exposing
the base for the fitting of the feet.
Fig. 2.3
Fig. 2.2

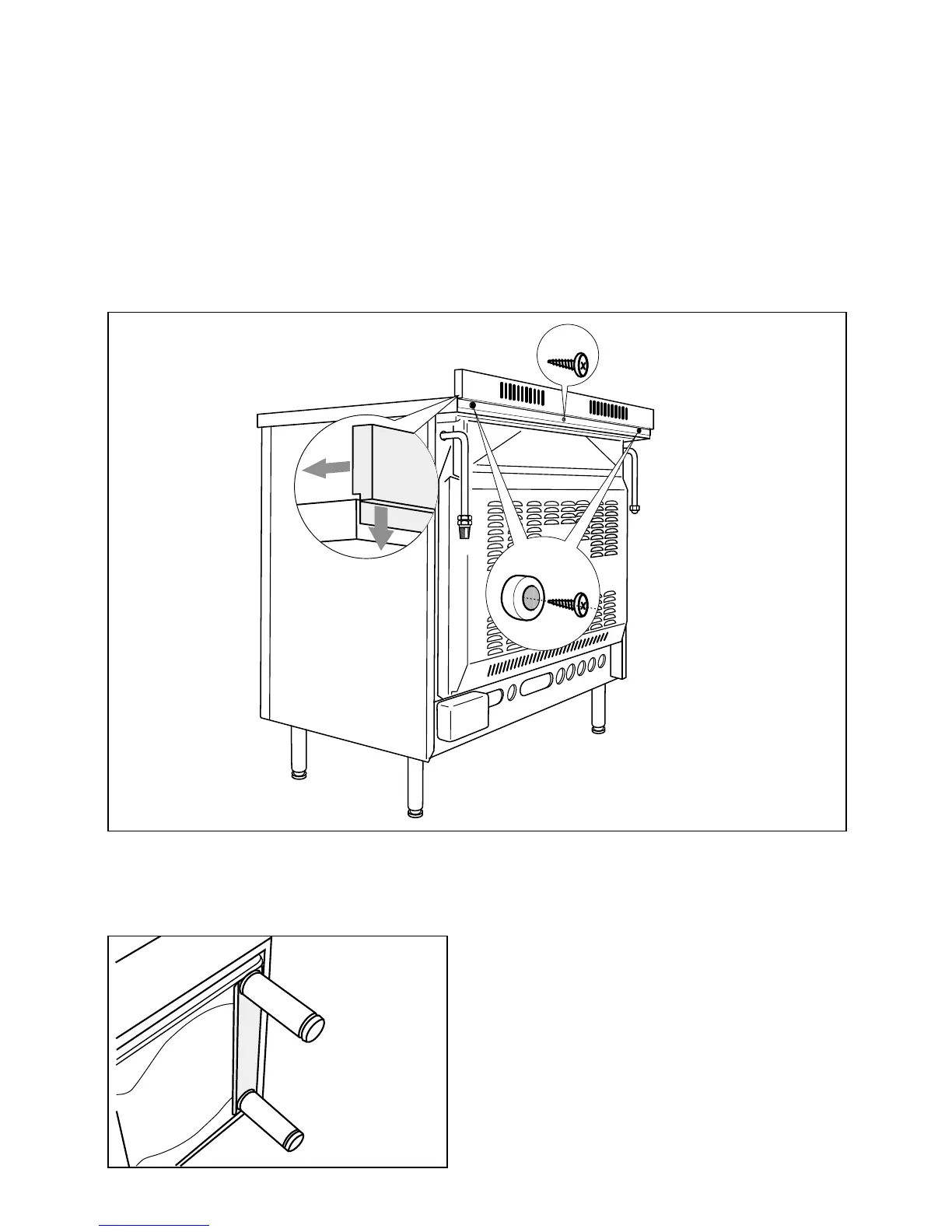

ASSEMBLING THE BACKGUARD
Before installing the cooker, assemble the backguard “C” (fig. 2.2).
1. The backguard “C” can be found packed at the rear of the cooker.
2. Before assembling remove any protective film/adhesive tape.
3. Remove the two spacers “A” and the screw “B” from the rear of the cooktop.
4. Assemble the backguard as shown in figure 2.2 and fix it by screwing the central
screw “B” and the spacers “A”.
