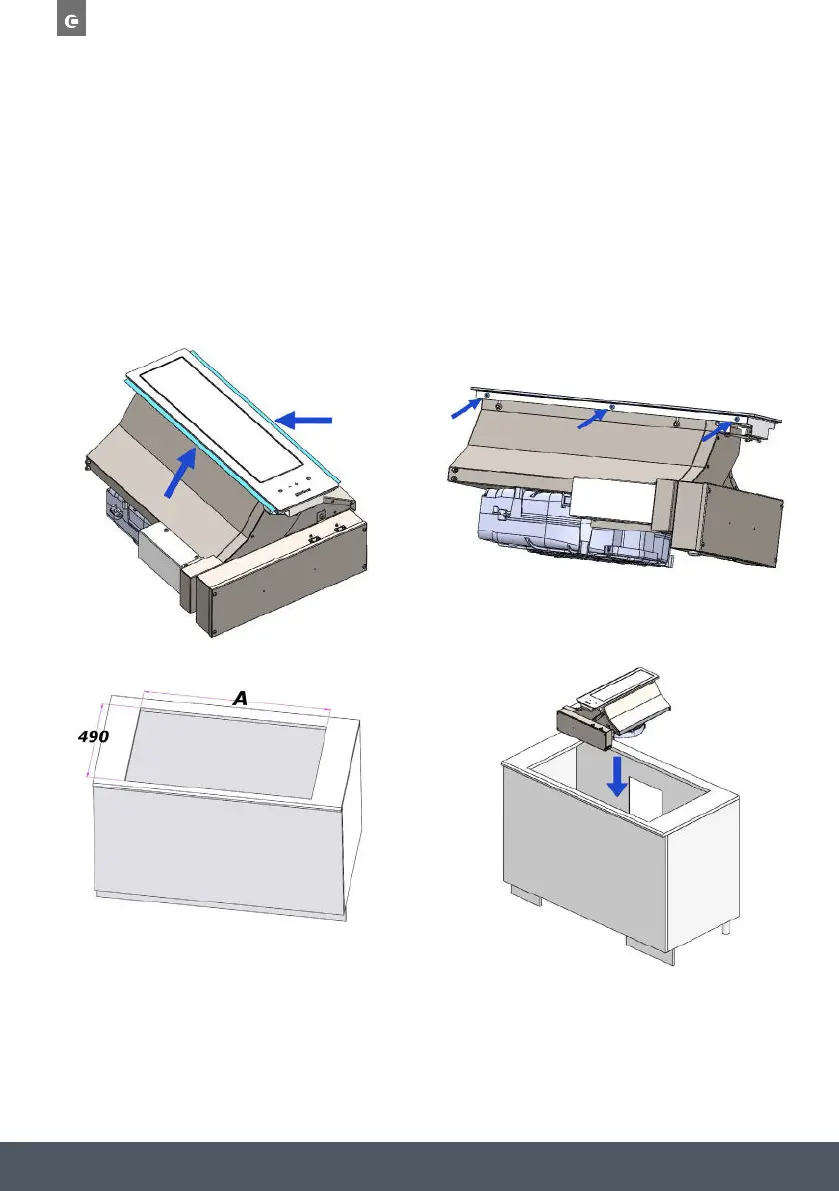

2. The downdraft is to be installed with a hob on each side. Two angles come tted to the hood
to support the hobs (Fig.1). If these are not needed, they can be removed by removing the
screws (Fig.2).
Make a rectangular opening with the dimensions 490mm x A (Fig.3A). Dimension ’A’ changes
depending on the size of the hob.
3. Fit the product in the opening, by inserting it from above as shown Fig.4.
Fig. 1
Fig. 4
Fig. 5
Fig. 2
11
The downdraft is to be installed with a hob on each side. Two angles come fitted to the
hood to support the hobs (Fig.1). If these are not needed, they can be removed by
removing the screws (Fig.2).
Make a rectangular opening with the dimensions 490mm x A (Fig.3A). Dimension 'A'
changes depending on the size of the hob.
Fit the product in the opening, by inserting it from above as shown Fig.4.
2.
Fig.1
F
F
i
i
g
g
.
.
2
3.
F
F
i
i
g
g
.
.
4
F
F
i
i
g
g
.
.
3
