Instruction manual DD523BK
14
Please keep this instruction manual for future reference
Line up and assemble the parts of the recirculation kit as shown in Fig.9.
Connect the vertical at channel of the recirculation kit to the vertical 90° elbow already tted to
the DD523BK.

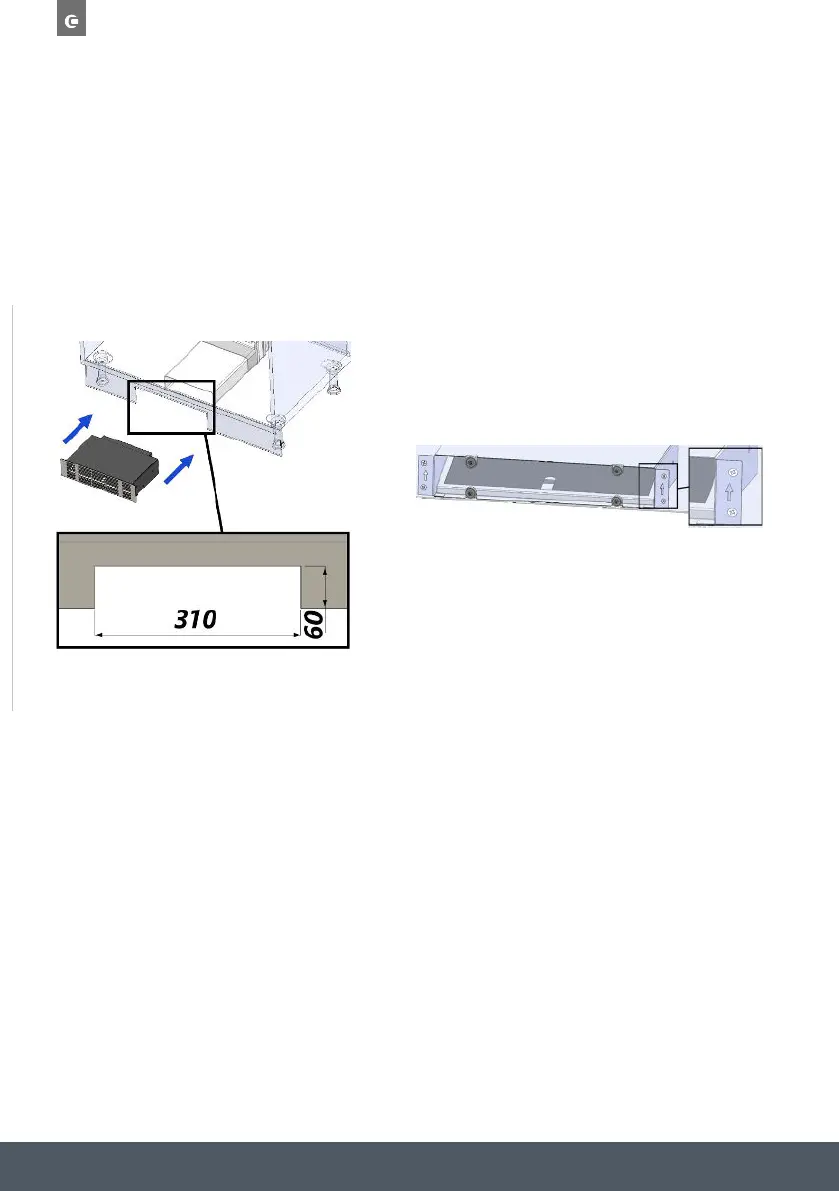

The Charcoal Filter housing box should be connected to the outside of the furniture housing/plinth
(Fig.10). Make sure to install this box the right way. An arrow on the front demonstrates
this (Fig.11).
Line up and assemble the parts of the recirculation kit as shown in Fig.9.
Connect the vertical flat channel of the recirculation kit to the vertical 90° elbow already fitted to
the DD523BK.
The Charcoal Filter housing box should be connected to the outside of the furniture housing/plinth
(Fig.10). Make sure to install this box the right way. An arrow on the front demonstrates this
(Fig.11).
CHARCOAL FILTER MAINTENANCE
Accurate maintenance guarantees good functioning and long-lasting performance.
The charcoal filter can be regenerated by washing in a dishwasher. It is recommended to wash the
filter alone, without any other dishes. Depending on use, the filter should be restored every 6
months to ensure it remains effective.
F
F
i
i
g
g
.
.
10
Fig.11
To remove the charcoal filter, remove the metal
cover from the charcoal filter housing (Fig.12) and
then remove the filter. Replace the filter and fit by
following these steps in reverse.
Replacement filter (CAP88CF) can be purchased
from www.caple.co.uk or via our national sales
office tel: 0117 938 1900.
Fig.12
