EXTERNALLY VENTED MODE
The downdraft can be installed in this mode with outside discharge of extracted air: in this case
it is necessary to connect the ducting channel to the outside wall (ducting pipes are not supplied
with this product).
RECIRCULATION MODE
In case fumes and vapours cannot be extracted outside, the appliance can be used in recirculation
mode. If recirculating your appliance, the Charcoal Filter Recirculation Kit (CAP87CF) can be
purchased.

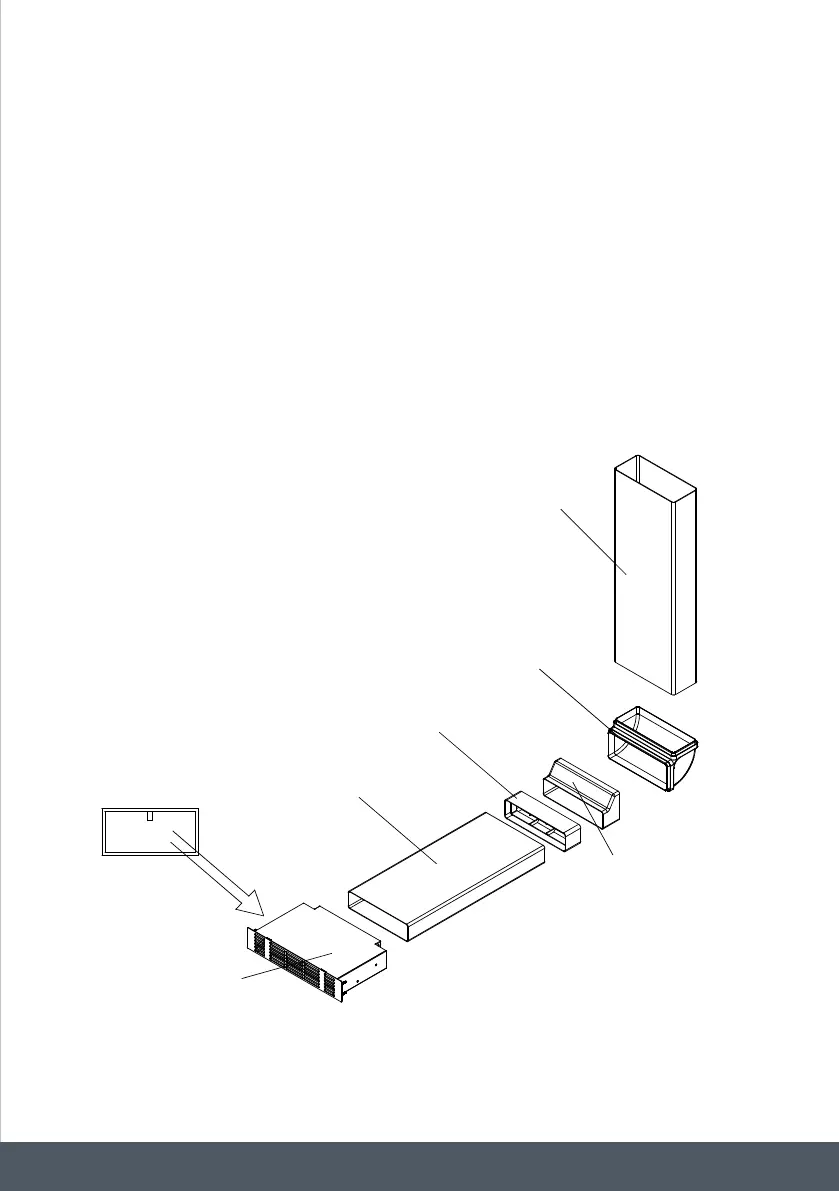

Recirculation Kit CAP87CF includes the components shown in Fig.9.
Fig. 8
Fig. 9
Fig. 6
12
Fig. 7
Fig. 8
Fig. 9
12
If recirculating your appliance, the Charcoal Filter Recirculation Kit (CAP87CF) can
be purchased.
Recirculation Kit CAP87CF includes the components shown in Fig.9.
220x90
610mm
220x90
220x55
500mm
220x55
220x90
220x55
Adaptor:
Charcoal Filter Housing
Charcoal Filter
