Instruction manual DD810BK
53
Please keep this instruction manual for future reference
MAINS CABLE
› The hob has been fitted with a temperature-resistant connection cable.
› Connection to the mains is carried out in accordance with the circuit diagram, unless the
connection cable is already fitted with a plug.
› If the mains cable of this appliance is damaged it will need to be replaced with a special
connection cable. In order to avoid any risks, this must be carried out by Caple Service or
an approved engineer.

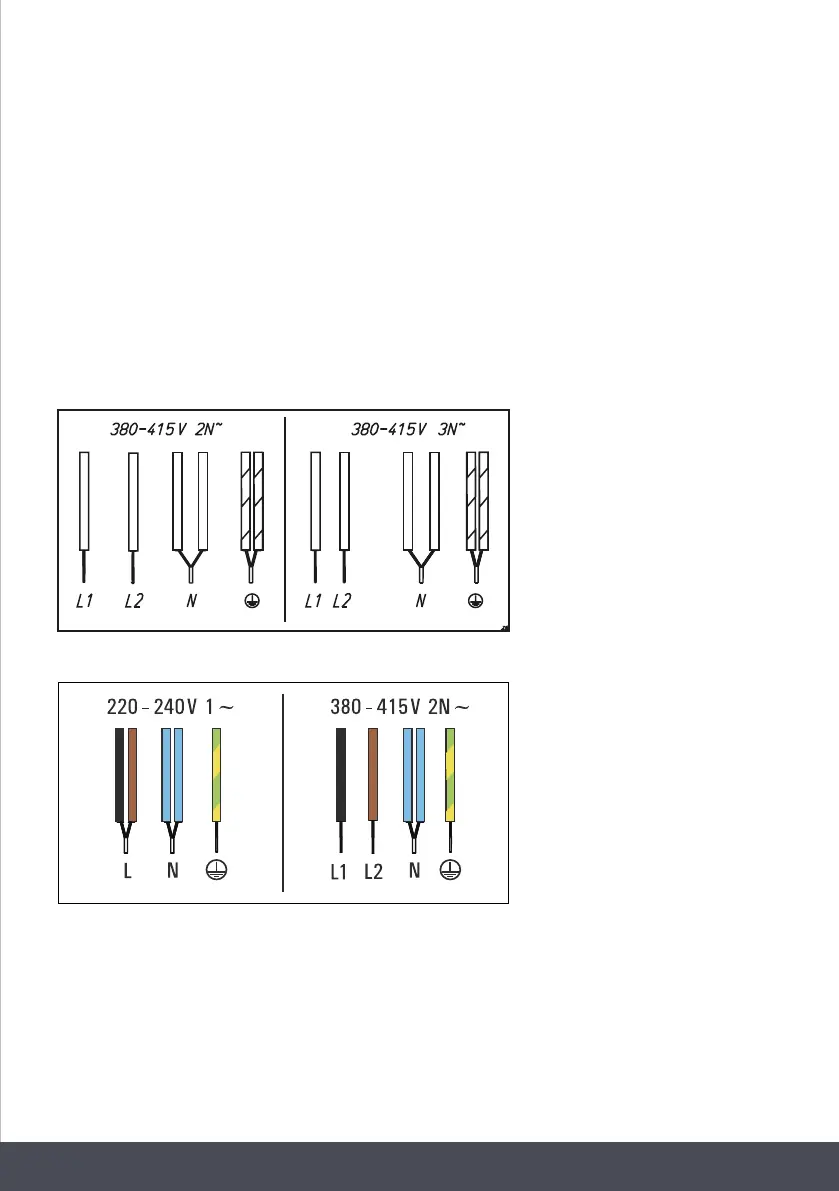

ELECTRICAL CONNECTIONS
black
brown
blue
green-yellow
black
brown
blue
green-yellow
blue
blue
