21Instruction manual RiF892Please keep this instruction manual for future reference
INSTALLING THE FURNITURE DOOR

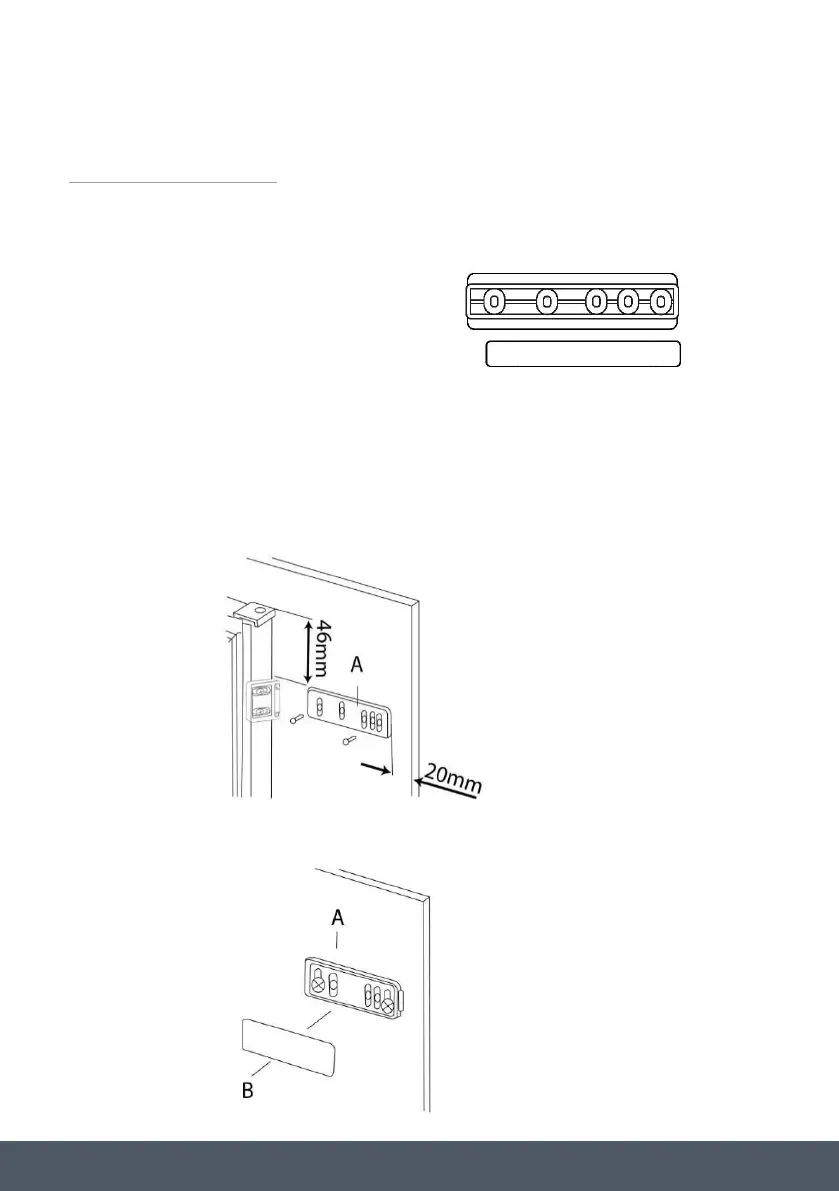

Locate parts A and B (see the below) in the bag with the installation accessories:
A. Door guide
B. Door guide cover
› Open the cabinet door and the freezer door, mark on the back of the cabinet door where
the top of the freezer door reaches. Place the door guide (part A) on the back of the cabinet
door, in the location shown below and mark the position of first hole and the last hole on
the door guide. Fix the door guide into place with 2 torx headed screws.
› Clip the door guide cover (part B) on the door guide (part A) hiding the screws.
19
RI5505 Fridge Freezer Instruction Manual.indd 19RI5505 Fridge Freezer Instruction Manual.indd 19 05/02/2020 14:3005/02/2020 14:30
INSTALLING THE FURNITURE DOOR
Locate parts A and B (see the below) in the bag with the installation accessories:
> Open the cabinet door and the fridge door, mark on the back of the cabinet door where
the top of the fridge door reaches. Place the door guide (part A) on the back of the cabinet
door, in the location shown below and mark the position of first hole and the last hole on
the door guide. Fix the door guide into place with 2 torx headed screws.
> Clip the door guide cover (part B) on the door guide (part A) hiding the screws.
A. Door guide
B. Door guide cover
A
B
19
RI5505 Fridge Freezer Instruction Manual.indd 19RI5505 Fridge Freezer Instruction Manual.indd 19 05/02/2020 14:3005/02/2020 14:30
INSTALLING THE FURNITURE DOOR
Locate parts A and B (see the below) in the bag with the installation accessories:
> Open the cabinet door and the fridge door, mark on the back of the cabinet door where
the top of the fridge door reaches. Place the door guide (part A) on the back of the cabinet
door, in the location shown below and mark the position of first hole and the last hole on
the door guide. Fix the door guide into place with 2 torx headed screws.
> Clip the door guide cover (part B) on the door guide (part A) hiding the screws.
A. Door guide
B. Door guide cover
A
B
19
RI5505 Fridge Freezer Instruction Manual.indd 19RI5505 Fridge Freezer Instruction Manual.indd 19 05/02/2020 14:3005/02/2020 14:30
INSTALLING THE FURNITURE DOOR
Locate parts A and B (see the below) in the bag with the installation accessories:
> Open the cabinet door and the fridge door, mark on the back of the cabinet door where
the top of the fridge door reaches. Place the door guide (part A) on the back of the cabinet
door, in the location shown below and mark the position of first hole and the last hole on
the door guide. Fix the door guide into place with 2 torx headed screws.
> Clip the door guide cover (part B) on the door guide (part A) hiding the screws.
A. Door guide
B. Door guide cover
A
B
