Caple RiL1795 - Door Reversing

Instruction manual RiL1795
Please keep this instruction manual for future reference
26
EN
24
INSTALLATION INSTRUCTIONS AND DOOR
REVERSIBILITY
13
11
12
17
15
16
14
18
14
13
11
12
17
15
16
14
18
14
Door reversing
1. Open appliance door
14
. (g.J)
2. Disassemble door hinge
15
and take appliance door
14
to safe place. (g.K)
3. Unscrew door hinge pin
16
and screw it to opposite side rmly and take to safe
place. (g.K.a)
4. Take door lower pin
18
to opposite side. (g.K.b)
5. Take hole plugs
17
to opposite side. (g.K.c)
6. Place appliance door
14
over door lower pin18 and insert door hinge pin
16
into hinge hole on appliance door
14
and then screw door hinge
15
rmly onto
opposite side of original position. (g.K)

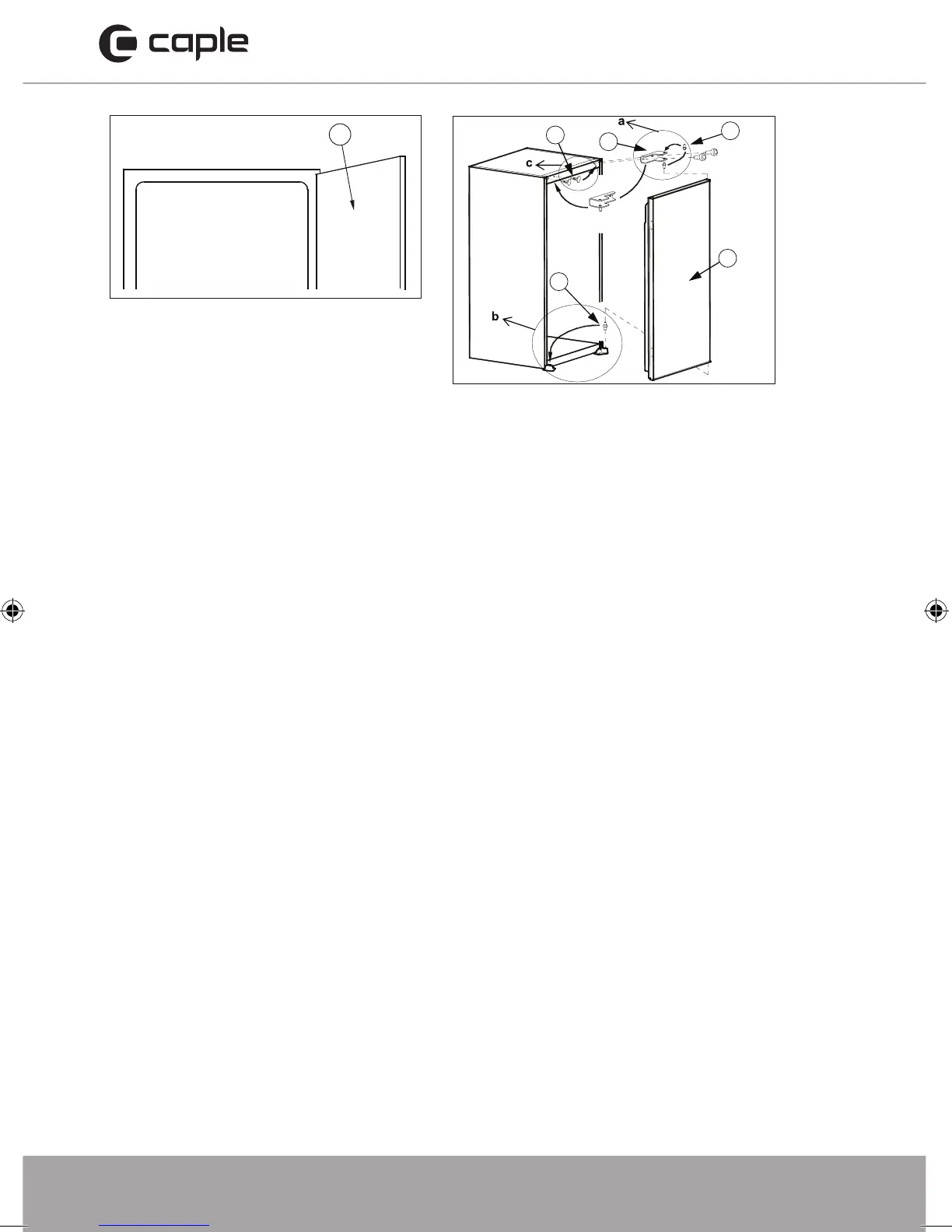

Figure. J
Figure. K
DOOR REVERSING
1. Open appliance door
14
. (fig.J)
2. Disassemble door hinge
15
and take appliance door
14
to safe place. (fig.K)
3. Unscrew door hinge pin
16
and screw it to opposite side firmly and take to safe
place. (fig.K.a)
4. Take door lower pin
18
to opposite side. (fig.K.b)
5. Take hole plugs
17
to opposite side. (fig.K.c)
6. Place appliance door
14
over door lower pin18 and insert door hinge pin
16
into hinge hole on appliance door
14
and then screw door hinge
15
firmly onto
opposite side of original position. (fig.K)
RIL1795_Larder Instruction Manual.indd 26 07/02/2017 10:35
