18 Instruction manual WMi3001 & WMi3006 Please keep this instruction manual for future reference

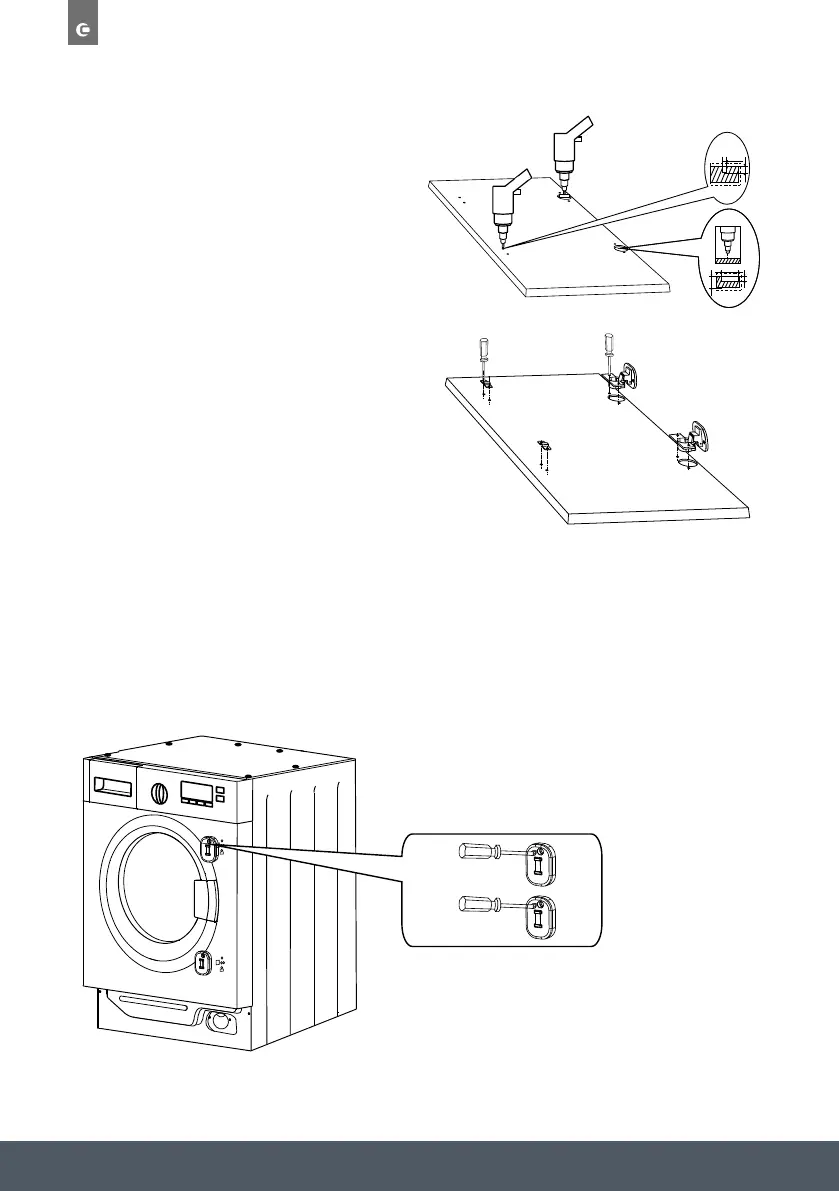

DRILL HOLES ON THE DOOR
1. Drill the holes on the door according to the
door template.
2. Installing the hinges and spacer.
Fix the hinges to the furniture door with
the ST4*12 screws. The hinges can be
adjusted to compensate for possible uneven
thickness of the door.
INSTALLING THE DOOR MAGNET
The appliance is designed with magnetic closure of the door. To enable correct operation of this
device, it is necessary to screw the counter-magnet into the inner side of the door.
Position Paper
Make the mark on the door
1
Position Paper Position Paper
Fixed position paper on the door.
2
16-22mm
12mm
35mm
12mm
2mm
Drill hole on the door
3
10
29
Top Top
Left Open
Right Open
MAINTENANCE
Installation the hinges and spacer
Installation the counter magnet
5
Installation the door
6
44
• When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are
placed in either of the two recesses on the back of the appliance. This will help to prevent
the hoses from becoming kinked or trapped.
Warning!
！
10
30
MAINTENANCE
Installation the hinges and spacer
Installation the counter magnet
5
Installation the door
6
44
• When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are
placed in either of the two recesses on the back of the appliance. This will help to prevent
the hoses from becoming kinked or trapped.
Warning!
！
10
30
