Instruction manual ZC622 ZC922 13
Please keep this instruction manual for future reference

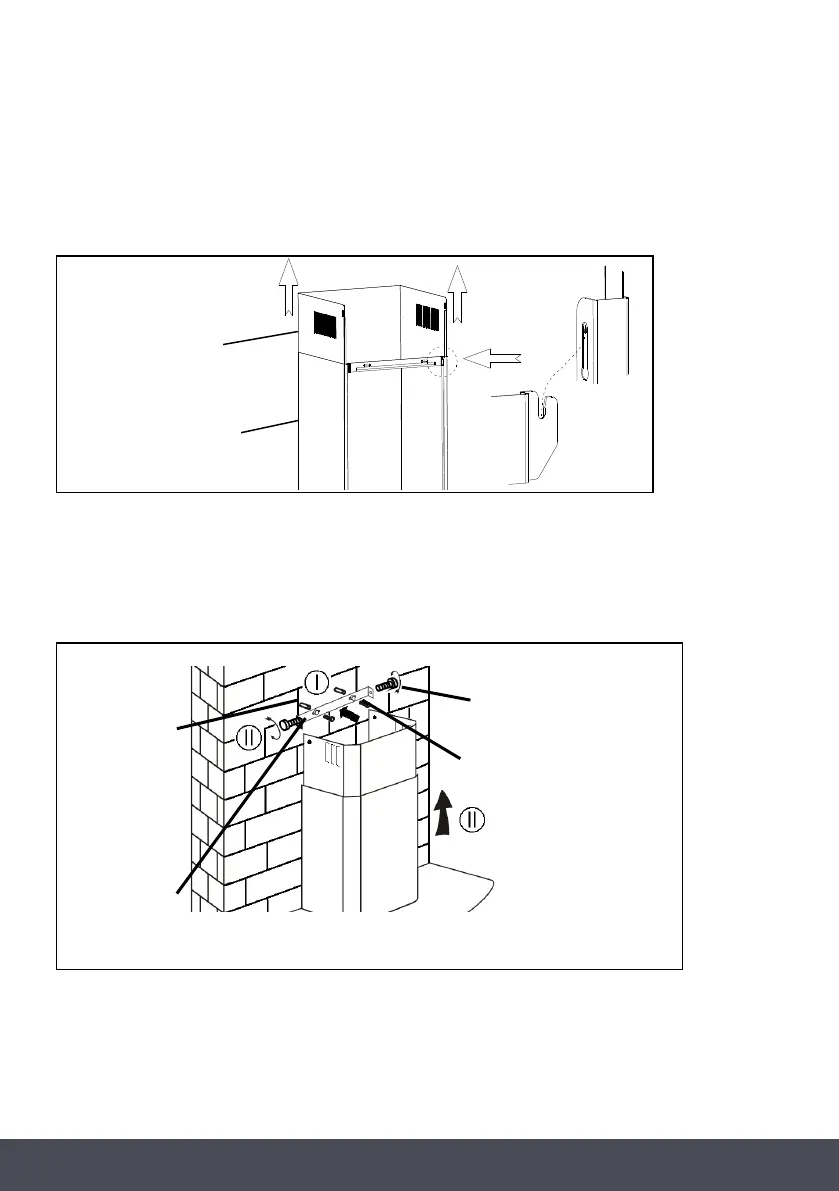

CHIMNEY INSTALLATION
Place the upper chimney into lower chimney. Attach the lower chimney bracket to the lower
chimney.
Mark and drill 2 holes to fix the lower chimney bracket with 2 wall plugs and 2 screws ST4x30mm.
Slide the chimney to adjust the chimney height. When the height you require is reached, mark and
drill the fixing hole and fix the upper chimney bracket with 2 wall plugs and 2 ST4x30mm.
Fix the upper chimney with the upper chimney bracket using 2 scews ST4x8mm.
7
7
Lower Chimney
Upper Chimney
Wall Plug
Plate ||
Screw (4mm x 8mm)
Screw (4mm x 30mm)
