Instruction manual ZEL900 ZEL900GM
12
Please keep this instruction manual for future reference

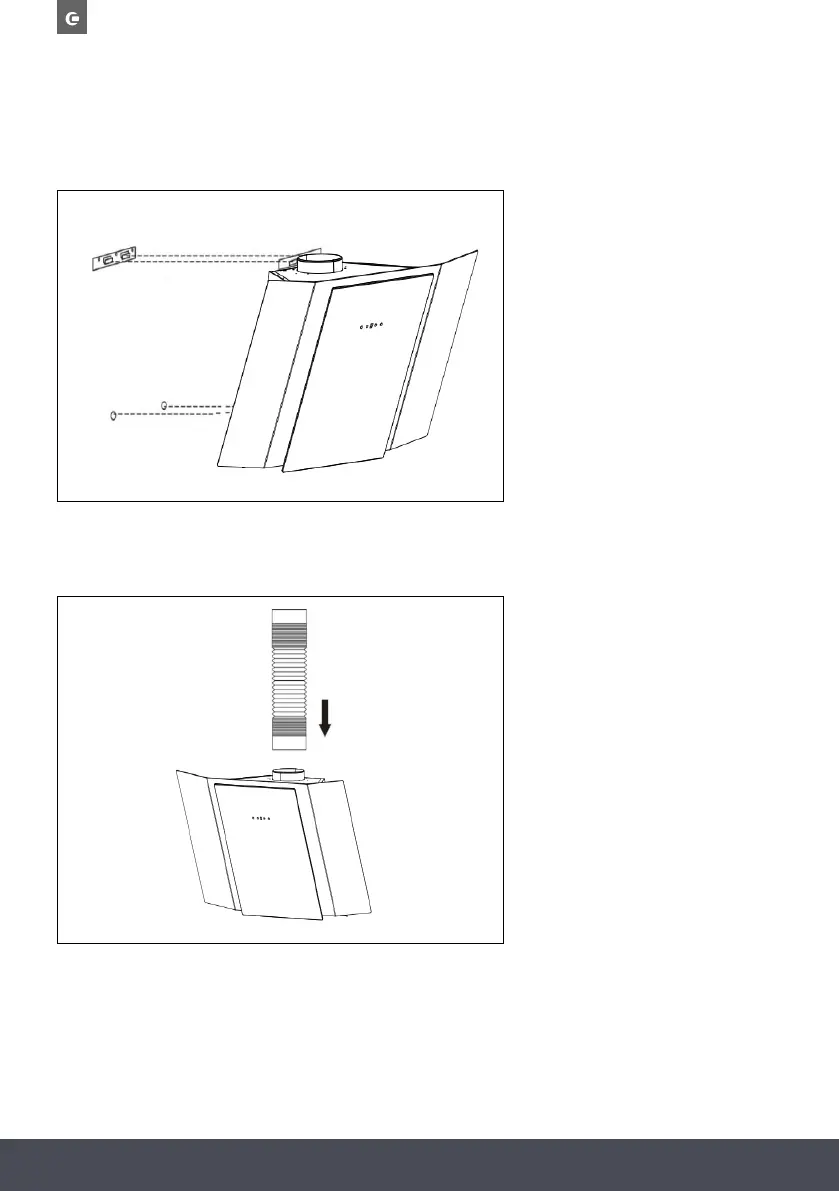

After hanging the hood on the bracket, remove the grease filters, mark 2 holes inside the hood for
safety screws. After marking, remove the hood, drill two holes and insert 2 wall plugs and finally
fix the safety screws with 2 screws (ST4x30mm).
Place the plastic duct on the cooker hood outlet.
NOTE:
We recommend the ducting does not exceed 2.5 metres in length to ensure maximum efficiency.
3
3. Secure the body with security screws, Use 2 pcs of wall plug and 2pcs of
ST4*30mm screws
to fix the hood
4. Place the plastic duct on the cooker hood.
3
3. Secure the body with security screws, Use 2 pcs of wall plug and 2pcs of
ST4*30mm screws
to fix the hood
4. Place the plastic duct on the cooker hood.
