Carbide 3D VFD Spindle Kit - Page 6

5
support@carbide3d.com
6/24/2022 v1.0
6. Remove the X-Axis router drag chain. See Fig. 3.
a. Use a 2mm hex key to remove the two M3 screws securing the X-Axis head to the bracket on
the back of your Z-Axis.
b. Use a 2mm hex key to remove the two M3 screws securing the tail to the drag chain support
panel.
c. Set all of the screws aside for reinstallation.

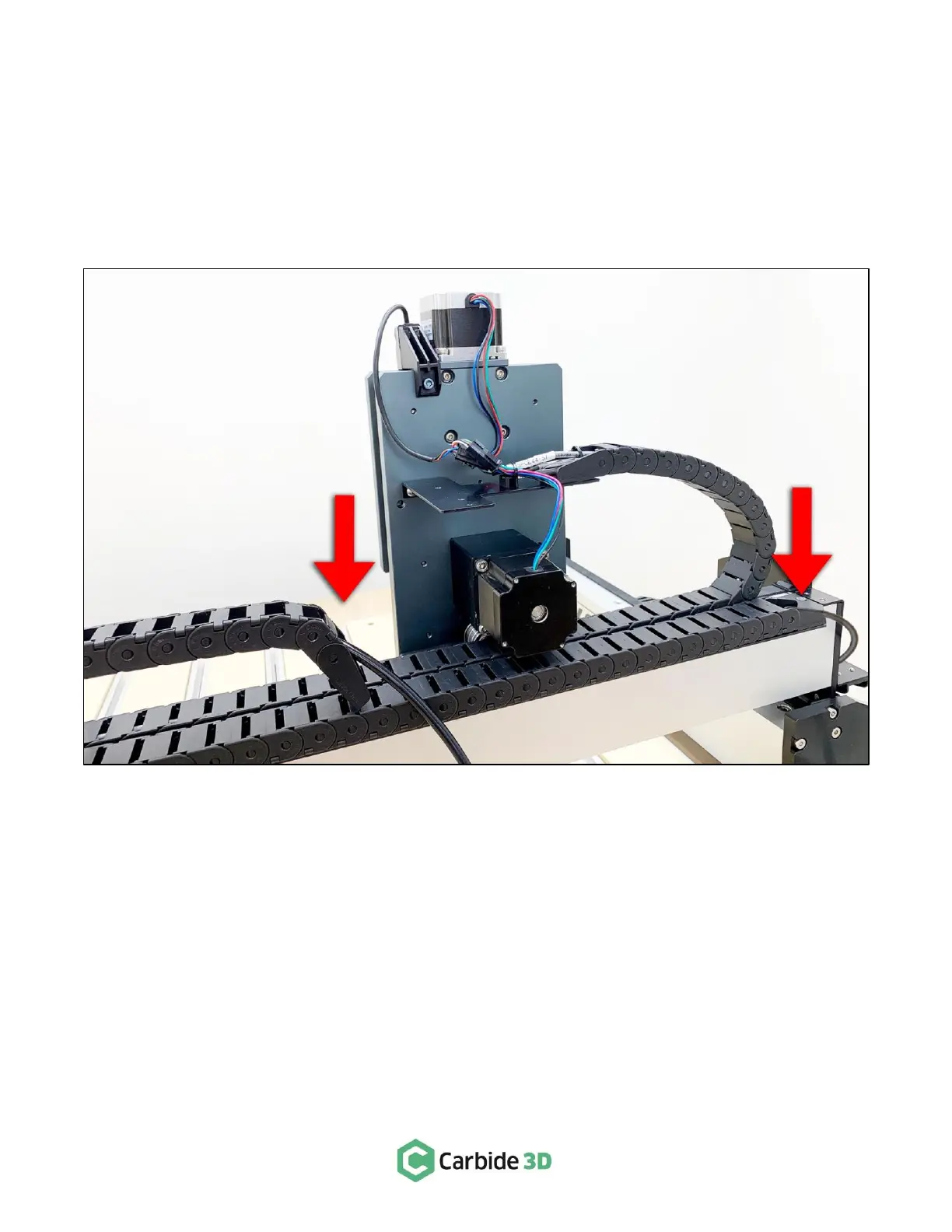

Figure 3
