Step 2: Install the VFD Spindle
All Machines
1. Install the spindle in the spindle mount. See Fig. 9.
a. Position the VFD spindle in the spindle mount so that the amount of the spindle showing below
the spindle mount is close to the setup of your old router (use your measurement from
Step 1: Remove the Old Router).

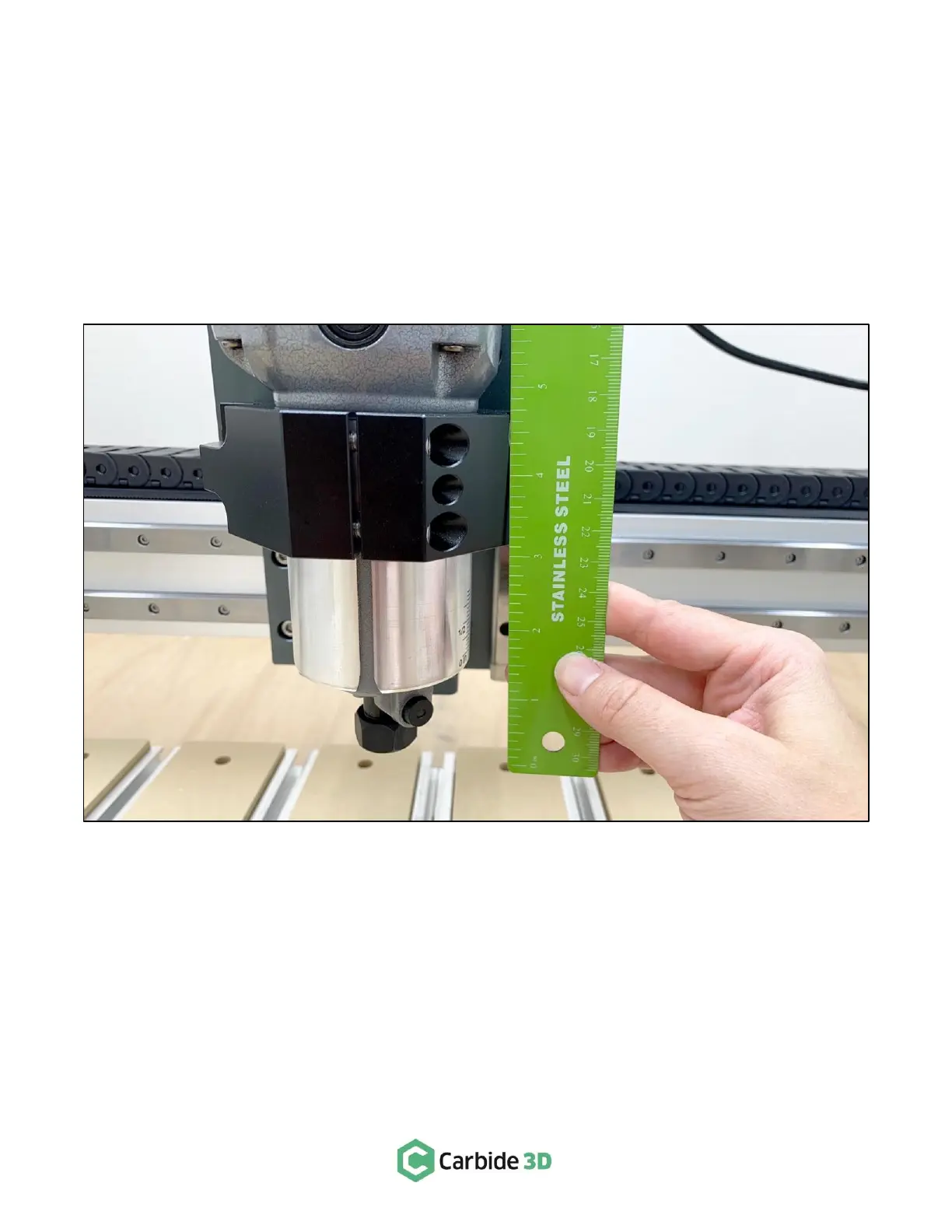

Figure 9
