2.

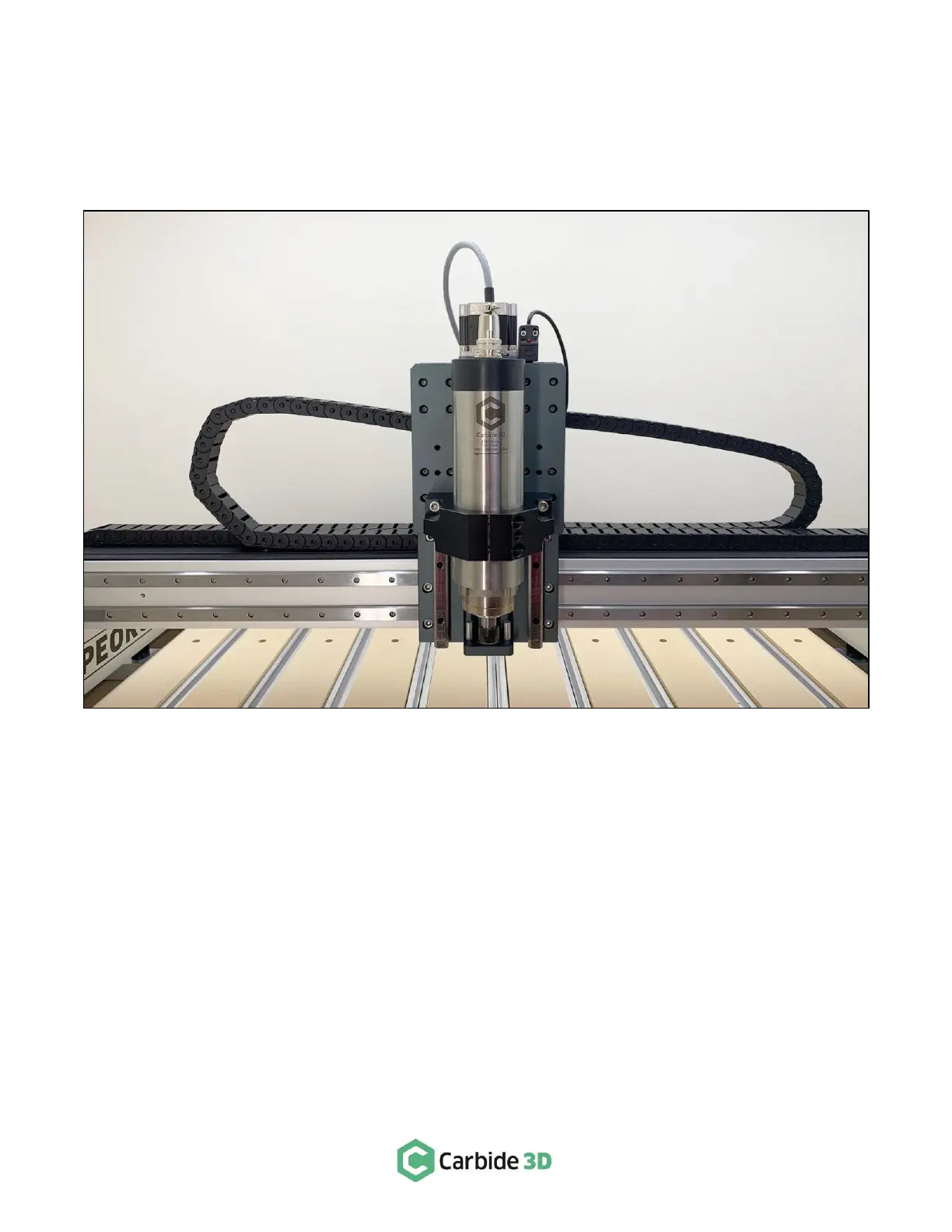

Plug the spindle power cable’s screw-on connector into the top of the spindle and tighten the
threaded ring. See Fig. 10.
a.
The screw-on connector is keyed and will only connect one way.
b.
Don’t secure the spindle power cable to the machine just yet.
3.
Plug the black VFD controller power cable into the jack on the side of the controller and then plug it
into a wall outlet.
a.
Make sure to insert the plug in firmly to seat it completely in the jack.
4.
Plug in the male end of the 6-pin logic cable into the 6-pin jack on the other side of the VFD controller.
a.
Make sure the small latch on the side of the connector fits properly into the notch in the 6-pin
jack.
