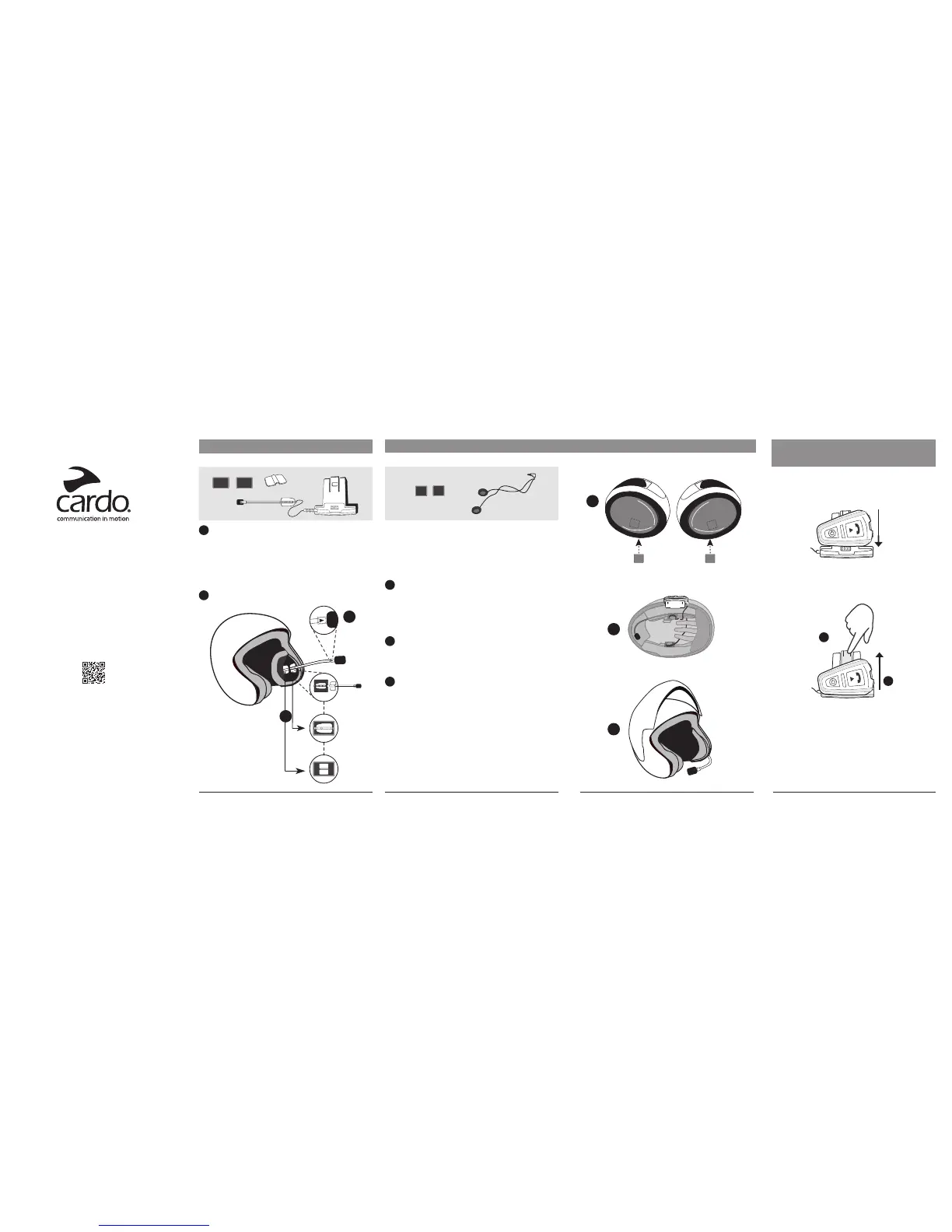

PLACING THE SPEAKERS
1
2
3
ATTACHING AND REMOVING THE UNIT
FROM THE AUDIO KIT
MAN01010 I NSTAL LATIONGUIDE2017E N 015
www.cardosystems.com
support@cardosystems.com
USA & Canada: 1-800-488-0363
International: +49 89 450 36819
POSITIONING THE HYBRID MICROPHONE
1
2
Remove the left cheek pad to expose the inner shell
● Clean the designated area
● Peel o and stick the velcro pad and attach the
hybrid Microphone in place.
● For a more secure attachment use the second
velcro pad and the supplied clip as shown.
Ensure arrow is positioned towards your mouth.
1
2
PARTS REQUIRED:
REMOVING
1
Push
Slide up
2
ATTACHING
Click!
PARTS REQUIRED:
Using two speakers inside the helmet may be prohibited
in certain jurisdictions. If this is the case, position both
speakers on one side of the helmet.
Attach the speaker with the shorter wire onto the
left velcro pad. Cross the long speaker wire over the
center of the helmet to enhance FM radio reception.
Attach the second speaker onto the right Velcro pad.
Re-attach the cheek pads.
Remove both cheek pads to expose the inner shell
● Clean the designated area
● Peel o and stick the velcro pads
** To use the optional speaker booster pads , place
them between the Velcro pad and the speaker.
1
2
3
For best clarity, place speakers directly opposite and
close to the ears. Helmets with deep recesses may
require padding to bring the speakers closer for ideal
positioning. Optional speaker booster pads are provided
for this purpose.
