4.3 Assembling and disassembling
1. Place the freewheel mode lever in the drive position.
2. Set the rear section in the up position and make sure the hook for the front section is connected to the axle
of the rear section.
3. Put down the front and rear sections until the scooter is locked.
4. Set down the battery pack on the scooter, and make sure it is in the correct position.
5. Set down the seat on the seat post until the swivel lock engages and you hear a click.
6. Turn key switch to ‘ON’. Make sure the battery gauge indicates sufficient power.
Assembling the scooter
 Warning
To avoid personal injury, ask for assistance, if necessary, while disassembling or assembling your scooter.
Disassembling The Scooter

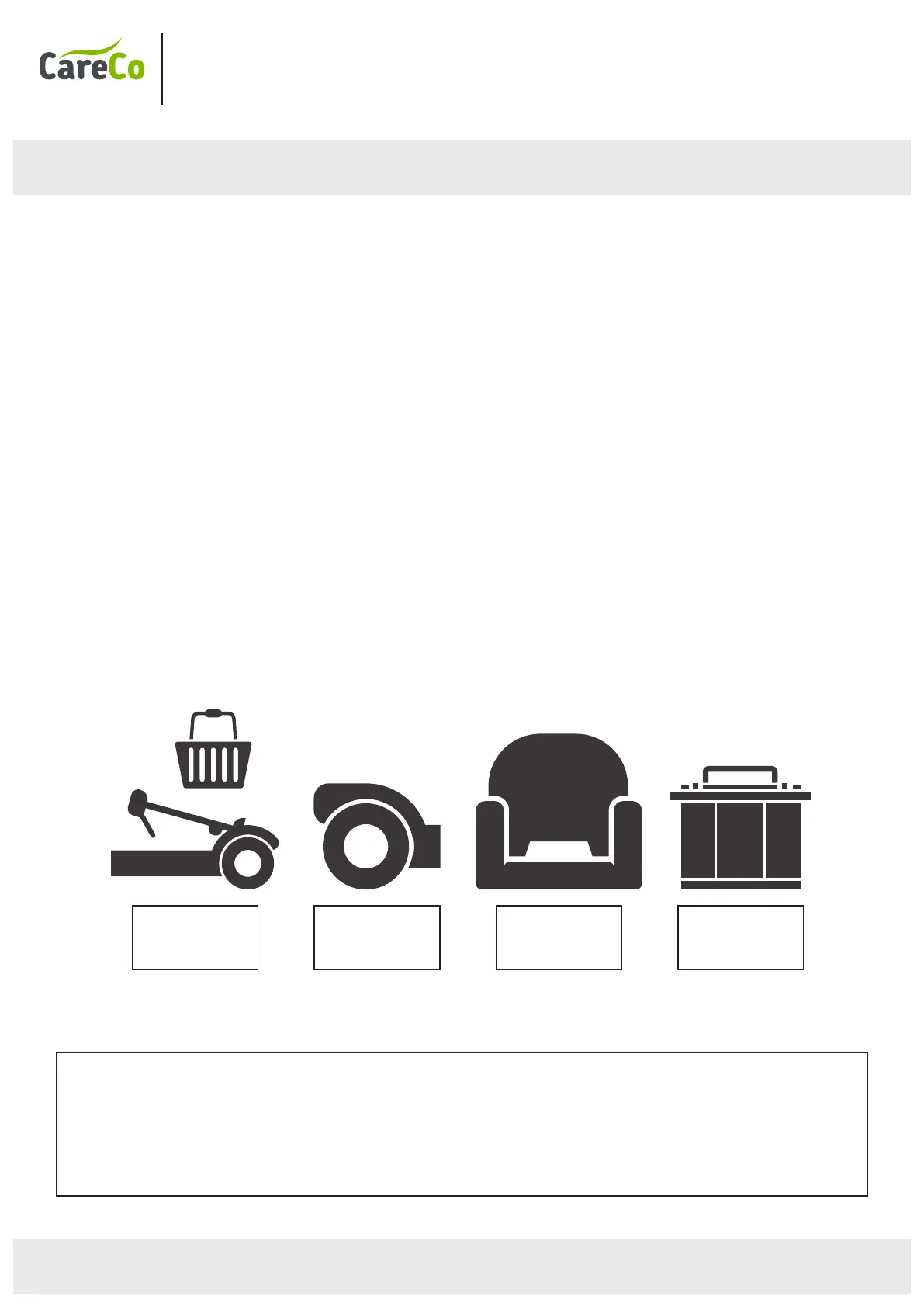

The Zoom can be disassembled into four pieces, the seat (7.21 kg / 15.9 lbs), the front section
(15.74 kg / 34.7 lbs), the rear section (10.69 kg / 23.5 lbs) and battery pack 9.18 kg
(Zoom Plus – 13.38 kg / 29.5 lbs).
10.69kg
23.5lbs
15.74kg
34.7lbs
7.21kg
15.9lbs
9.18kg
20.23lbs
