Carefree Compass - Accessory Harness

COMPASS Installation Manual Carefree of Colorado
10 070035-001r1
ACCESSORY HARNESS
Some installers may wish to have a single wire entry hole into the vehicle. A special canopy from Carefree
contains an accessory harness at the awning rail that extends the idler speaker wire over to the motor arm.
When it is necessary to extend the speaker wires use 22 awg, 2-strand, flat wire (wire furnished by installer).
1. On the idler side:
1.1. Route the harness from the canopy into the rear rail.
1.2. Trim and strip the speaker wires and accessory harness. Splice the wires together.
2. On the motor side:
2.1. Route the harness from the canopy into the rear rail.
2.2. For bottom routing: the installer must furnish an extension wire (22 awg, 2-strand, flat wire). This wire is
routed with the existing speaker wire and the LED wires in the back of the rear rail. Refer to page 6.
2.3. Trim and strip the wires from the extension wire and accessory harness. Splice the wires together.
3. Route the speaker wires into the vehicle with the motor and LED wires.
4. Seal the holes and wires with a quality sealant.

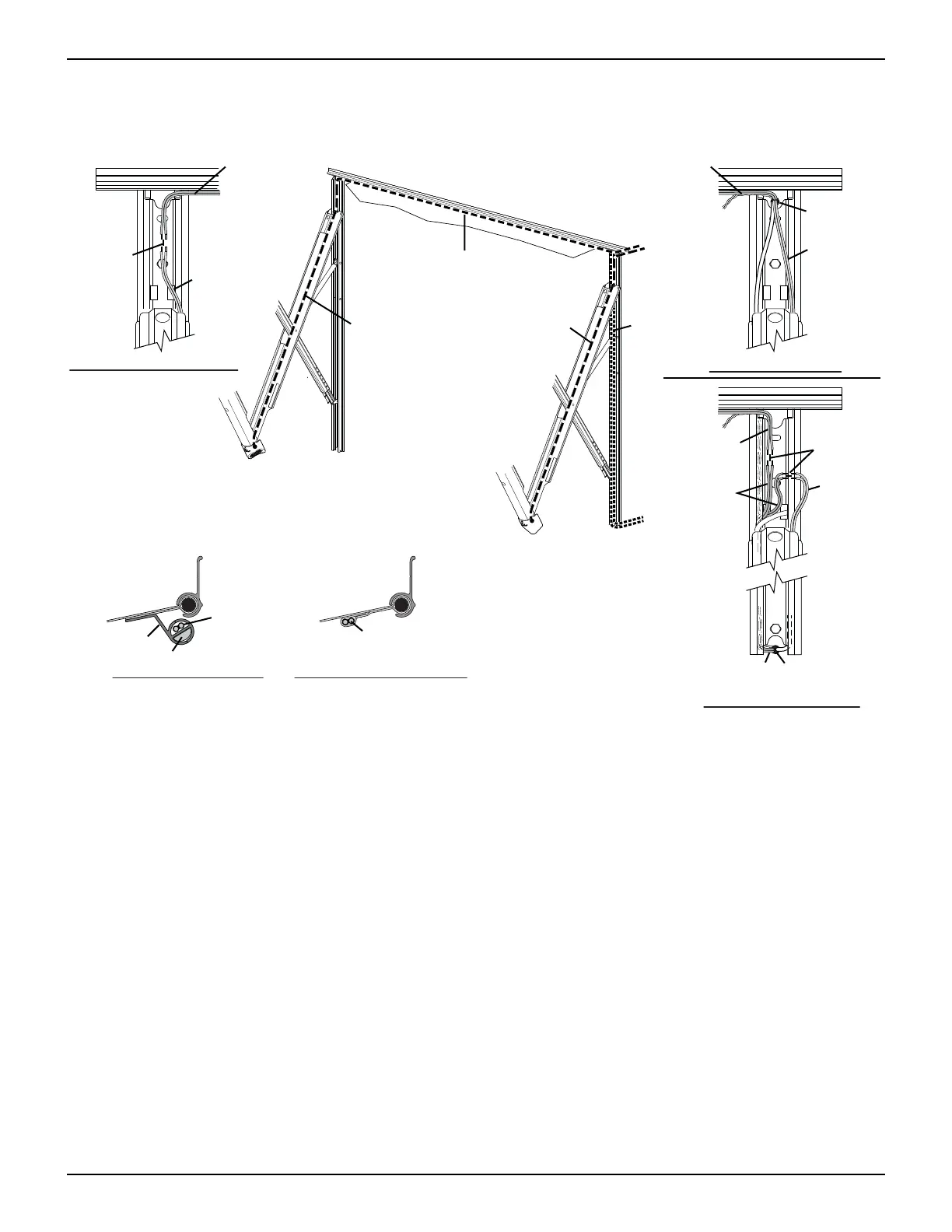

Holder
LED
Accessory Harness
Along Awning Rail
Bottom of Arm Routing
Speaker
Speaker
Top
Routing
Bottom
Routing
CO014
With Awning Rail LED Without Awning Rail LED
Speaker Wires
in Arm
Speaker Wires
in Arm
Speaker
Wire
With Accessory Harness
Speaker
Wire
Accessory
Harness
Trim &
Splice
5/8" Hole
Top of Arm Routing
Led & Accessory
Harnesses
Speaker
Wire
Installer
Furnished
Wires
Trim &
Splice
Installer
Furnished
Wire
Accessory
Harness
Led Harness &
Speaker Wires
5/8" Hole
Accessory
Harness
Accessory
Harness
