Carefree of Colorado Installation Manual Compass
070035-001r1 1

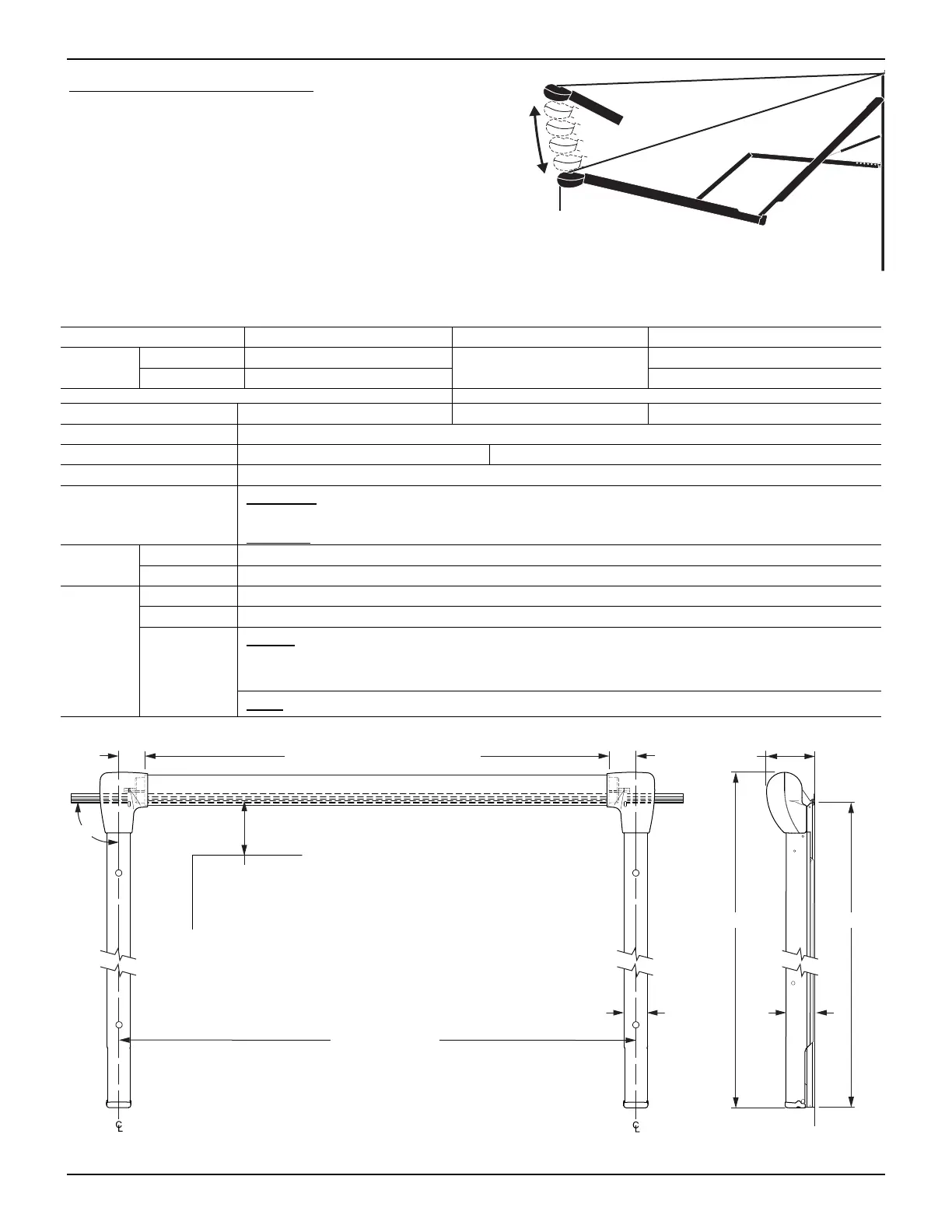

PRODUCT OVERVIEW
The adjustable pitch Compass provides motorized awning
comfort with Carefree's standards for looks, strength and
dependability with a successful blend of style, quality and
economy.
The variable pitch offers 6 settings from flat (3˚) to steep (16˚).
The awning roller tube and arms are made from light weight,
no-rust aluminum. The awning fabric is heavy weight vinyl.
White and RGB LED lighting is available with the strip
mounted in the roller tube or at the awning rail.
Specifications:
MAXIMUM EXTENSION:
88 inches
MAXIMUM LENGTH:
20 feet
PITCH: FLAT
3˚
DROP:
approximately 6 inches
STEEP
16˚ approximately 26.5 inches
Angle is Canopy vs horizontal Measurement is from centerline of Awning Rail to centerline of roller tube
MOTOR:
Power: 10VDC–14VDC Circuit Rating: 15 amp motor mounted in arm
POWER SOURCE:
Motor and controls are routed and hardwired into the vehicle’s 12V system
EXTEND ACTUATION:
Gas Shock
POSITION CONTROL:
Motorized roll out/in
CONTROLLER:
Standard: 3 position, momentary
ON, center OFF; DC polarity reversing switch with
dynamic brake.
Optional: BT12 Wireless Awning Control System
COLOR:
Frame: White, Black
Canopy: Vinyl with Weatherguard or FLXguard. Refer to sales literature for options.
LED
LED strip mounted in roller tube or at the awning rail
Power: 1A, 12VDC
Control White:
Single pole, single throw switch (SR0101) Note: The Switch kit is
ordered separately. Kit includes in-line fuse holder and 2A spade type fuse.
For an installer furnished control switch, see note under "Switch Installation".
RGB
IR (Infrared) Controller with sensor and remote.
CO002
* Fabric Width is measured at Awning Rail. Tapered canopy will
measure approximately 7" shorter at Roller tube.
Awning Length
Centerline
of Motorized Arm
Centerline
of Idler Arm
6” min.
Clearance
from top of
door
Fabric Width at Awning Rail*
2.5"2.5"
90
o
Typ.
2.8"
3.5"
5.75"
57.6" 53.875"
Flat Pitch
Steep Pitch
Alt002
