A. P15
B. range: 0/999
C. HIA
Default: 10 (100 nei modelli per termocoppie)
Impostazione dei limiti inferiore e superiore d'allarme
Nelle regolazioni con 2
Set-Point indipendenti
(C01 =2) il limite infe-
riore è riferito al set
minore, mentre il limite
superiore è riferito al
set maggiore.
P16 - Tempo di permanenza del set1 nella configurazione 2d (vedi
parametro C28, vedere par.“Descrizione dei parametri selezionabili”)
Tempo (minuti) di permanenza del set1.
Il valore 0 imposta la durata illimitata (fig. 41).
A. P16
B. range: 0/1999 minuti
C. ti1
Default: 360
P17 - Tempo di permanenza del set2 nella configurazione 2d
Tempo (minuti) di permanenza del set2.
Il valore 0 imposta la durata illimitata (fig. 41).
A. P17
B. range: 0/1999 minuti
C. ti2
Default: 180
P18 - Gradiente di salita dal Set 1 al Set 2 nella configurazione 2d
Tempo (secondi) richiesto per passare dal Set 1 al Set 2 per unità di
grandezza regolata. Il valore 0 imposta la variazione istantanea (fig. 41).
A. P18
B. range: 0/1999 s/unità
C. UP
Default: 0
P19 - Gradiente di salita dal Set 2 al Set 1 nella configurazione 2d
Tempo (secondi) richiesto per passare dal Set 2 al Set 1 per unità di
grandezza regolata. Il valore 0 imposta il passaggio istantaneo (fig. 41).
A. P19
B. range: 0/1999 s/unità
C. do
Default: 0
Nota: P18 e P19 impostano un tempo per unità di grandezza; quindi il
tempo T1,2 per passare da set1 a set2 sarà dato da:
T1,2= P18 x |(set1 - set2)|.
Il tempo T2,1 per passare da set2 a set1 sarà invece:
T2,1=P19 x |(set1-set2)|.
Grandezza regolata nella configurazione 2.d
A. P15
B. range: 0/999
C. HIA
Default: 10 (100 on the thermocouple models)
Selection of lower and higher alarm limits
In configurations
having two indepen-
dent Set-Points (C01 =
2), the lower limit refers
to the lower Set-Point,
the higher limit to the
higher Set-Point.
P16 - Stay time of Set-Point1 in the 2d configuration
Stay time (minutes) of Set-Point 1.
Select '0' for unlimited duration (fig. 41).
A. P16
B. range: 0/1999 minutes
C. ti1
Default: 360
P17 - Stay time of Set-Point 2 in the 2d configuration
Stay time (minutes) of Set-Point 2.
Select '0' for unlimited duration (fig. 41).
A. P17
B. range: 0/1999 minutes
C. ti2
Default: 180
P18 - Passage between Set-Point 1 and Set-Point 2 in the 2d confi-
guration
Time interval (seconds) necessary to pass from Set-Point 1 to Set-
Point 2. Select '0' to get the sudden passage (fig. 41).
A. P18
B. range: 0/1999 s/unit
C.
UP
Default: 0
P19 - Passage between Set-Point 2 and Set-Point 1 in the 2d config.
Time interval (seconds) necessary to pass from Set-Point 2 to Set-
Point 1. Select '0' to get the sudden passage (fig. 41).
A. P19
B. range: 0/1999 s/unit
C. do
Default: 0
Note: P18 and P19 set a time according to the controlled parameter.
So, the time from set1 to set2 is:
T1,2= P18 x |(set1 - set2)|.
The time from set2 to set1 is:
T2,1=P19 x |(set1-set2)|.

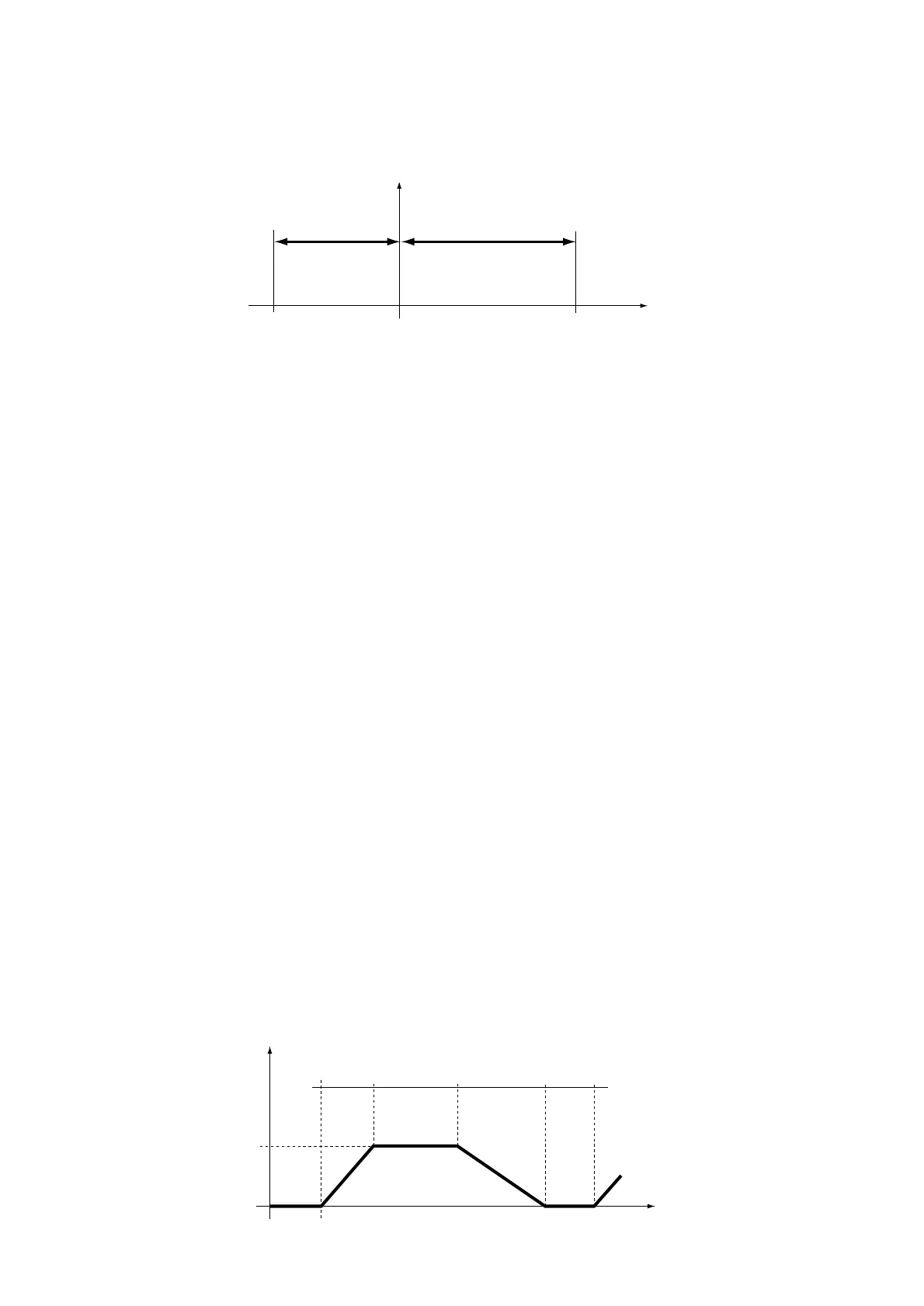

Controlled parameter in the 2d configuration
36
Offset (P14)
Offset (P15)
Allarme minimo LOA
LOA Lower Limit Alarm
Set-Point 1
Allarme massimo HIA
HIA Higher Limit
Grandezza regolata
Controlled parameter
GRANDEZZA
REGOLATA
CONTROLLED
PARAMETER
SET2
SET1
A (start)
T1,2 P17 T2,1 P16
TEMPO
TIME
Fig. 40
Fig. 41
