Installation

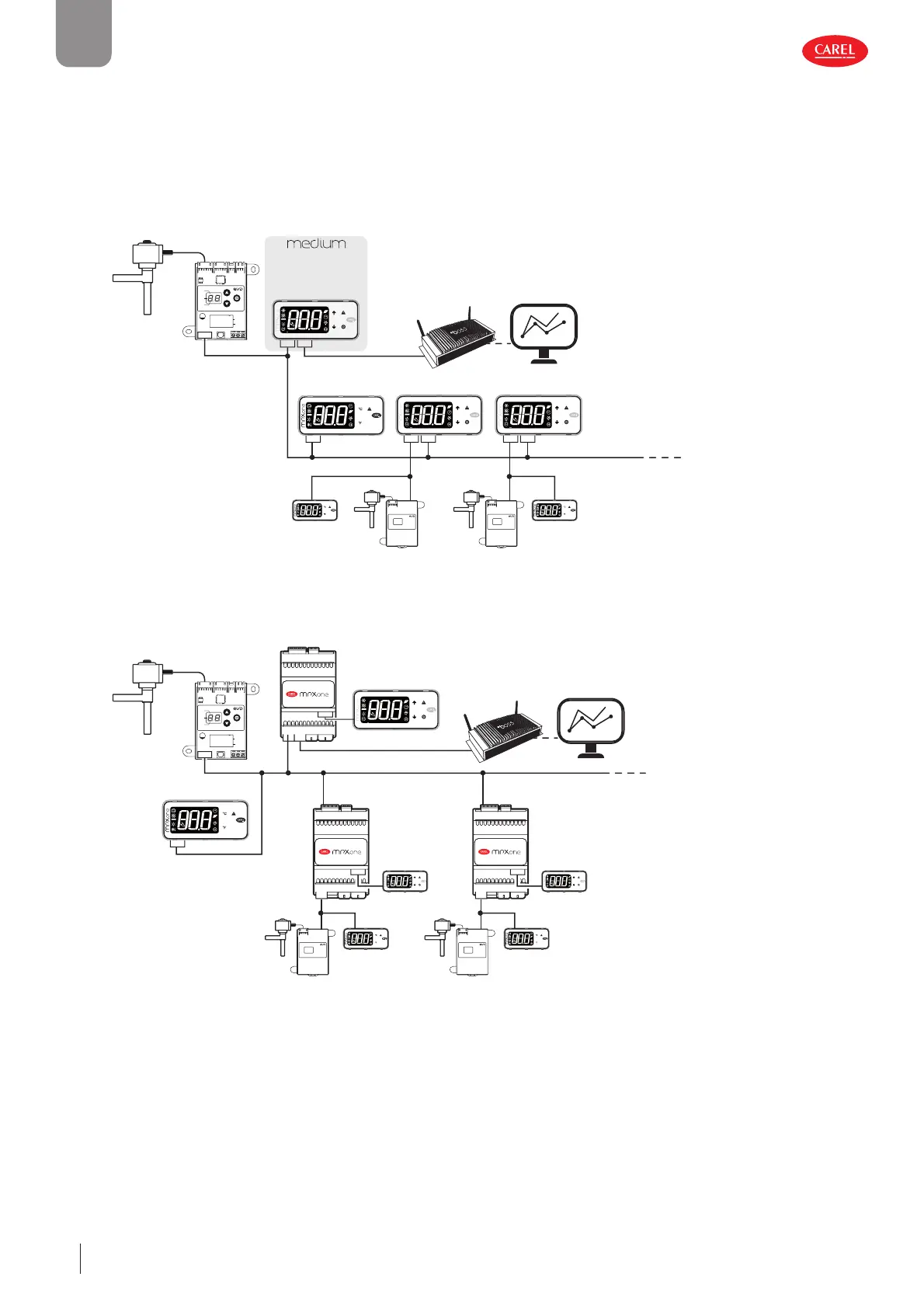

Main/secondary network with user terminals, remote display and external driver.
The main controller, connected to the supervisor network, coordinates the operation of up to 9 secondary controllers connected
to the network via RS485 Fieldbus. Each controller can be connected to a remote display or an external driver.
Caution: for connection to a main/secondary network, the local subnet must be wired according to the following logic:
• main BMS (J4): connected to the supervisory system;
• main Fieldbus (J5): connected to the BMS (J4) on the secondary devices.
Panel (Medium)
up to 9 secondary
for Medium and
Advanced models,
up to 5 secondary
only for Basic model
Main
Secondary Secondary
Remote display
EVD
mini
300086_018_R01
J5 J4
J5 J4 J5 J4
py
py
y
Fig. 2.u
DIN (Medium)
Secondary 1
Main
up to 9 secondary
for Medium and
Advanced models,
up to 5 secondary
only for Basic model
Secondary 2
Remote display
User terminal
J8
py
y
py
J5 J4
J8
J5
EVD
mini
300086_022_R01
J8
J5
Fig. 2.v
