mpxone +0300086EN rel. 2.2 - 13.11.2023
Introduction

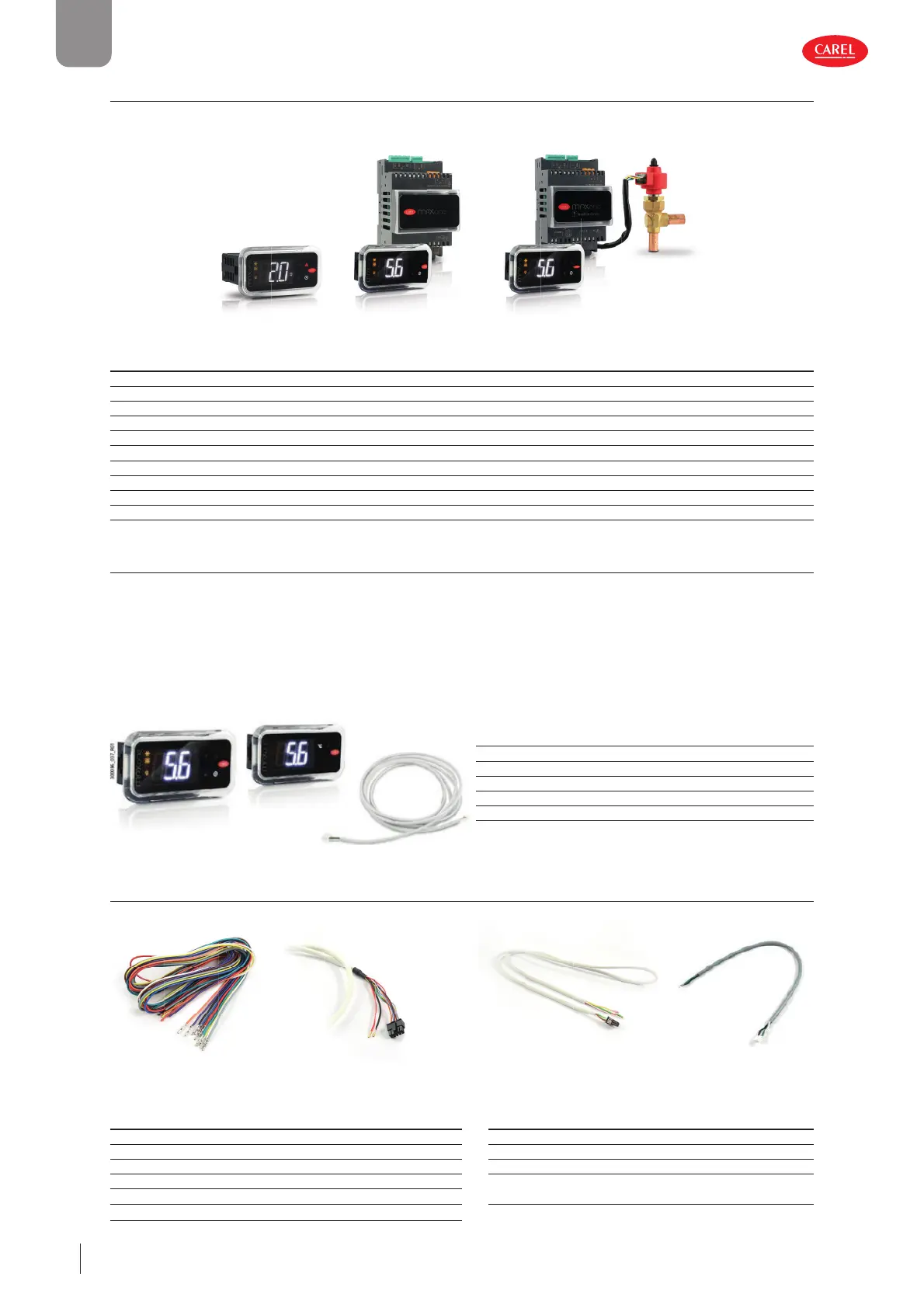

1.2 Models and accessories
The single-pack versions come with connector kits, while the multiple pack versions are supplied without connectors. The table
below shows the list of part numbers and distinctive features for all versions.
Fig. 1.a
Part number Description
S1M0004W0B060 Basic panel 24V, NFC, with connectors, single pack
S1M0004W00061 Basic panel 24V, NFC, without connectors, multiple pack (20 pcs.)
S1M0006W0B070 24V panel Medium, NFC, with connectors, single pack
S1M0006W00071 24V panel Medium, NFC, without connectors, multiple pack (20 pcs.)
S1M0006B0B080 Medium panel 24V, NFC+BLE, with connectors, single pack
S1M0006B00081 24V panel Medium, NFC+BLE, without connectors, multiple pack (20 pcs.)
S1M0007N0B110 DIN Medium, 115/230V, with connectors, single package
S1M0007N00111 DIN Medium, 115/230V, without connectors, multiple pack (10 pcs.)
S1M0009N0B120 DIN Advanced, 115/230V, with connectors, single package
S1M0009N00121 DIN Advanced, 115/230V, without connectors, multiple pack (10 pcs.)
Tab. 1.a
1.2.1 User terminal and remote display (Medium and Advanced versions only)
• The user terminal is built-in on the panel models and must be ordered separately for the DIN rail models. This includes the
display and keypad, comprising four buttons that, when pressed alone or combined with other buttons, are used to display
and set the controller’s parameters (see “User interface”). Connectivity - NFC or NFC + Bluetooth (BLE) based on the model -
allows interaction with mobile devices and simplifi es unit commissioning (after having installed the CAREL “Applica” APP for
the Android/IOS operating systems).
• The remote display can be connected as an accessory on the Medium (panel and DIN) and Advanced (DIN) versions only. This
is a display only, used to show alarms and one selected temperature value, with the corresponding unit of measure, °C or °F.
See “Installation” and the technical leafl et +0500142IE.
Part number Description
AX3000PS2002(0/1)(*) User terminal, NFC, 4 buttons, buzzer
AX3000PS2003(0/1)(*) User terminal, NFC+BLE, 4 buttons, buzzer
AX3000PS20X1(0/1)(*) Remote display
ACS00CB000020 User terminal cable - 1.5 m long
ACS00CB000010 User terminal cable - 3 m long
(0/1)(*): single/multiple pack (20 pcs.)
Fig. 1.b Tab. 1.b
1.2.2 Cable and connector kit
Controllers in multiple packs are supplied without connectors. Depending on the version of the controller, see the table below.
ACS00CB000230 ACS00CB0005*0 - ACS00CB0006*0 ACS00CB000730 ACS00CB002370
Fig. 1.c
Part number Description Part number Description
ACS00CK001301 Connector kit for Basic controller (10 pcs.) ACS00CB0005*0 Cable kit for Basic controller (J1, J2)
ACS00CK001701 Connector kit for Medium controller, panel vers. (10 pcs.) ACS00CB0006*0 Cable kit for Medium/Advanced controller (J1, J2, J3)
ACS00CK002101 Connector kit for Medium controller, DIN vers. (10 pcs.) ACS00CB002370 Cable kit for Ultracap module, 0.3 m
ACS00CK001501 Connector kit for Advanced controller, DIN vers. (10 pcs.) ACS00CB000730 Cable kit for Advanced controller (J9), 1 m
(extra kit to manage up to 8 probes)
ACS00CB000230 Kit of 10 coloured cables with lugs, 1 m (J2)
ACS00CB000330 Kit of 8 coloured cables with lugs, 1 m (J3)
Tab. 1.c
(*) 3/5/1: length = 1/ 2.2/ 3 m
