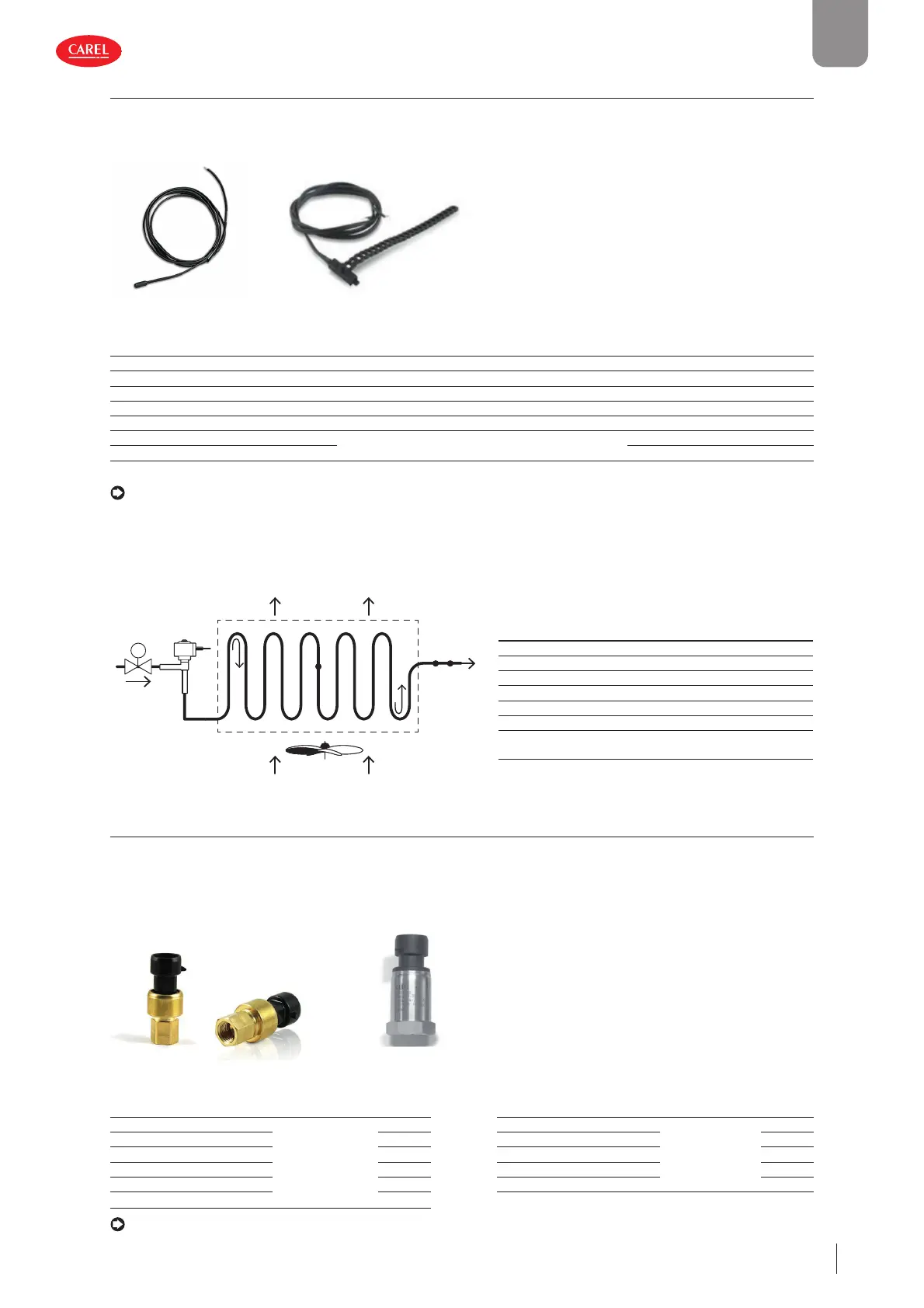

1.2.3 Temperature sensors
If using an external valve driver (EVDice/mini) or on the MPXone Advanced version, a temperature probe for calculating the
superheat needs to be installed near the evaporator outlet. Suitable thermal insulation of the probes is recommended. CAREL
supplies probes designed to simplify installation in contact with the refrigerant piping:
NTC***HP00 NTC***HF01
Fig. 1.d
Part number Type Description Range
NTC060HP00 10 kΩ ±1% @25°C, IP67 Cabinet ambient temperature probe -50 to 50 °C (105°C in air)
NTC***HF01 10 kΩ ±1% @25°C, IP67 Evaporator outlet temperature probe -50 to 90°C strap-on
NTC060WG00 Glass temperature probe
PT1060HP01 PT1000 Class B, IP67 Cabinet ambient temperature probe -50T105°C in air
PT1***HF01 PT1000 Class B, IP67 Evaporator outlet temperature probe -50T105°C in air
DPWC111000 4-20 mA Ambient temperature and humidity probe -
DPWC115000 0 to 10 Vdc -
Tab. 1.d
Notice:
• the glass temperature probe must be connected to the coldest point of the showcase glass, for optimum operation of the
anti-sweat device (heaters or fans). See technical leafl et +050002005
• see manual +040010025 (ITA- ENG) /+040010026 (FRE-GER) for guidelines on installing the sensors on the unit.
Example of operation with one evaporator on a vertical showcase
EEV
E
Sm
Sd
tGs
PEu
Sr
solenoid
optional
SV
300086_032_R01
Part
number
Description
EEV Electronic expansion valve
SV Solenoid valve
Sm Outlet probe
Sr Intake probe
Sd Defrost probe
E Evaporator
tGs and
PEu
Superheat probes
Fig. 1.e Tab. 1.e
1.2.4 Pressure sensors
If using an external valve driver (EVDice/mini) or on MPXone Advanced, to measure the saturated evaporation pressure/tem-
perature (PEu/tEu), diff erent types of probes can be used; specifi cally (by setting parameter /P2, /P3,/P2) the following can be
installed:
• 0-5 V / 0.5 Vdc-4.5 Vdc ratiometric pressure probe (recommended by CAREL);
• 4-20 mA active pressure probes.
SPKT0053P0 SPKT0043P* SPKT0011D0
Fig. 1.f
Part number Type Application Range Part number Type Application Range
SPKT0013P0 0.5-4.5Vdc Evaporation
pressure probe
-1 to 9.3 SPKT0041S0 (*) 0.5-4.5Vdc Evaporation
pressure probe
0 to 17.3
SPKT0053P0 0.5-4.5Vdc -1 to 4.2 SPKT0031S0 (*) 0.5-4.5Vdc 0 to 34.5
SPKT0043P0 0.5-4.5Vdc 0 to 17.3 SPKT00B1S0 (*) 0.5-4.5Vdc 0 to 45.0
SPKT0033P0 0.5-4.5Vdc 0 to 34.5 SPKT00G1S0 (*) 0.5-4.5Vdc 0 to 60.0
SPKT00B6P0 0.5-4.5Vdc 0 to 45.0 SPKT00L1S0 0.5-4.5 Vdc 0 to 90.0
SPKT0011S0 (*) 0.5-4.5Vdc -1 to 9.3
Tab. 1.f
Notice: see manuals +040010025 (ITA- ENG) /+040010026 (FRE-GER) for guidelines on installing the sensors on the unit.
