Carel pCO3 series User Manual

pCO Sistema
Code: +030220336 - rel. 1.5 - 22/12/10
28
3.1.4
3.1.43.1.4
3.1.4 PGD1000F00 (built
PGD1000F00 (builtPGD1000F00 (built
PGD1000F00 (built-
--
-in/panel) / PGD1000W00 pCO graphic display (wall)
in/panel) / PGD1000W00 pCO graphic display (wall)in/panel) / PGD1000W00 pCO graphic display (wall)
in/panel) / PGD1000W00 pCO graphic display (wall)
Display
DisplayDisplay
Display
Type: FSTN graphic
Backlighting: green or white LEDs (managed by “application program”)
Graphic resolution: 132x64 pixel
Text modes: 8 rows x 22 columns (5x7 and 11x15 pixel fonts)
4 rows x 11 columns (11x15 pixel fonts)
or mixed modes
Character height: 3.5 mm (5x7 pixel fonts)
7.5 mm (11x15 pixel fonts)
Size of the active area: 66x32 mm
Size of the display area: 72x36 mm
LEDs on keypad
LEDs on keypadLEDs on keypad
LEDs on keypad
2 programmable by “application program”, red and orange (Prg and Alarm buttons);
4 green, for backlighting the LCD (↑ ↓ Enter and Esc buttons).
Power supply
Power supplyPower supply
Power supply
Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by 250 mAT
external fuse.
Maximum power input: 1.2 W
3.1.5
3.1.53.1.5
3.1.5 PGD0000I00 pCO graphic display (panel installation)
PGD0000I00 pCO graphic display (panel installation)PGD0000I00 pCO graphic display (panel installation)
PGD0000I00 pCO graphic display (panel installation)
Display
DisplayDisplay
Display
Type: FSTN graphic
Backlighting: green LEDs (managed by “application program”)
Graphic resolution: 120x32 pixels
Text modes: 4 rows x 20 columns (5x7 and 11x15 pixel fonts)
2 rows x 10 columns (11x15 pixel fonts)
or mixed modes
Character height: 4.5 mm (5x7 pixel fonts)
9 mm (11x15 pixel fonts)
Size of the active area: 71.95x20.75 mm
Size of the display area 76x25.2 mm
Keypad 15 buttons, the “ESC” button is replaced by the “MENU” button
Power supply
Power supplyPower supply
Power supply
Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by external
250 mAT fuse.
Maximum power input: 1.5 W
3.1.6
3.1.63.1.6
3.1.6 PGD1000I00
PGD1000I00 PGD1000I00
PGD1000I00 pCO graphic display (panel installation)
pCO graphic display (panel installation)pCO graphic display (panel installation)
pCO graphic display (panel installation)
Display
DisplayDisplay
Display
Type: FSTN graphic
Backlighting: green LEDs (managed by “application program”)
Graphic resolution: 132x64 pixel
Text modes: 8 rows x 22 columns (5x7 and 11x15 pixel fonts)
4 rows x 11 columns (11x15 pixel fonts)
or mixed modes
Character height: 3.5 mm (5x7 pixel fonts)
7.5 mm (11x15 pixel fonts)
Size of the active area: 66x32 mm
Size of the display area: 72x36 mm
Keypad 15 buttons, the “ESC” button is replaced by the “MENU” button
Power supply
Power supplyPower supply
Power supply
Voltage: power supply from pCO via telephone connector or from external source, 18/30 Vdc protected by external 250
mAT fuse
Maximum power input: 1.8 W.

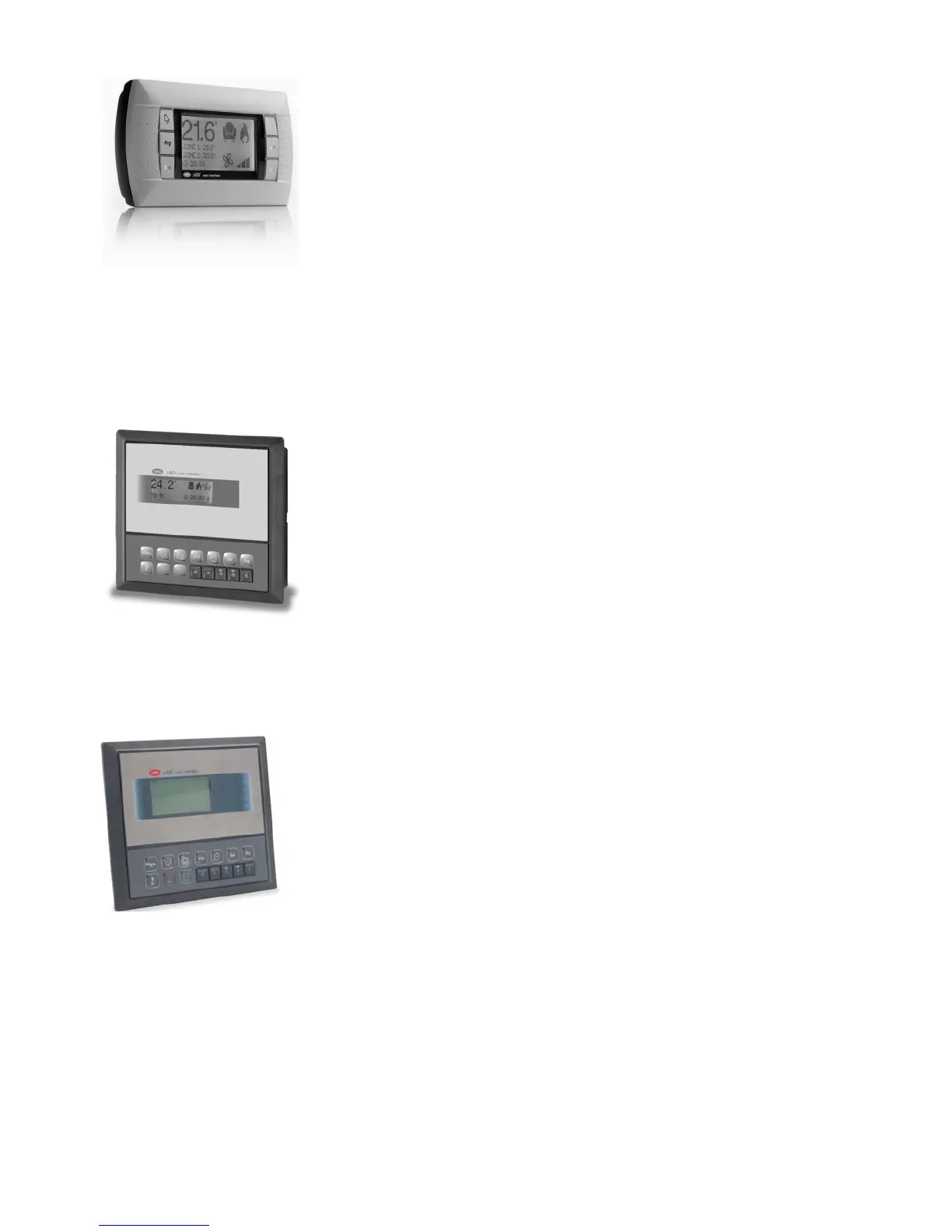

Fig. 3.b
Fig. 3.bFig. 3.b
Fig. 3.b
Fig. 3.c
Fig. 3.cFig. 3.c
Fig. 3.c
Fig. 3.d
Fig. 3.dFig. 3.d
Fig. 3.d

Carel pCO3 series Specifications

General

Protection Rating	IP20
Communication Ports	RS-485
Display	Graphic LCD with backlight
Power Supply	24 Vac/dc ±10%
Storage Temperature	+70°C
Humidity	10% to 90% non-condensing
