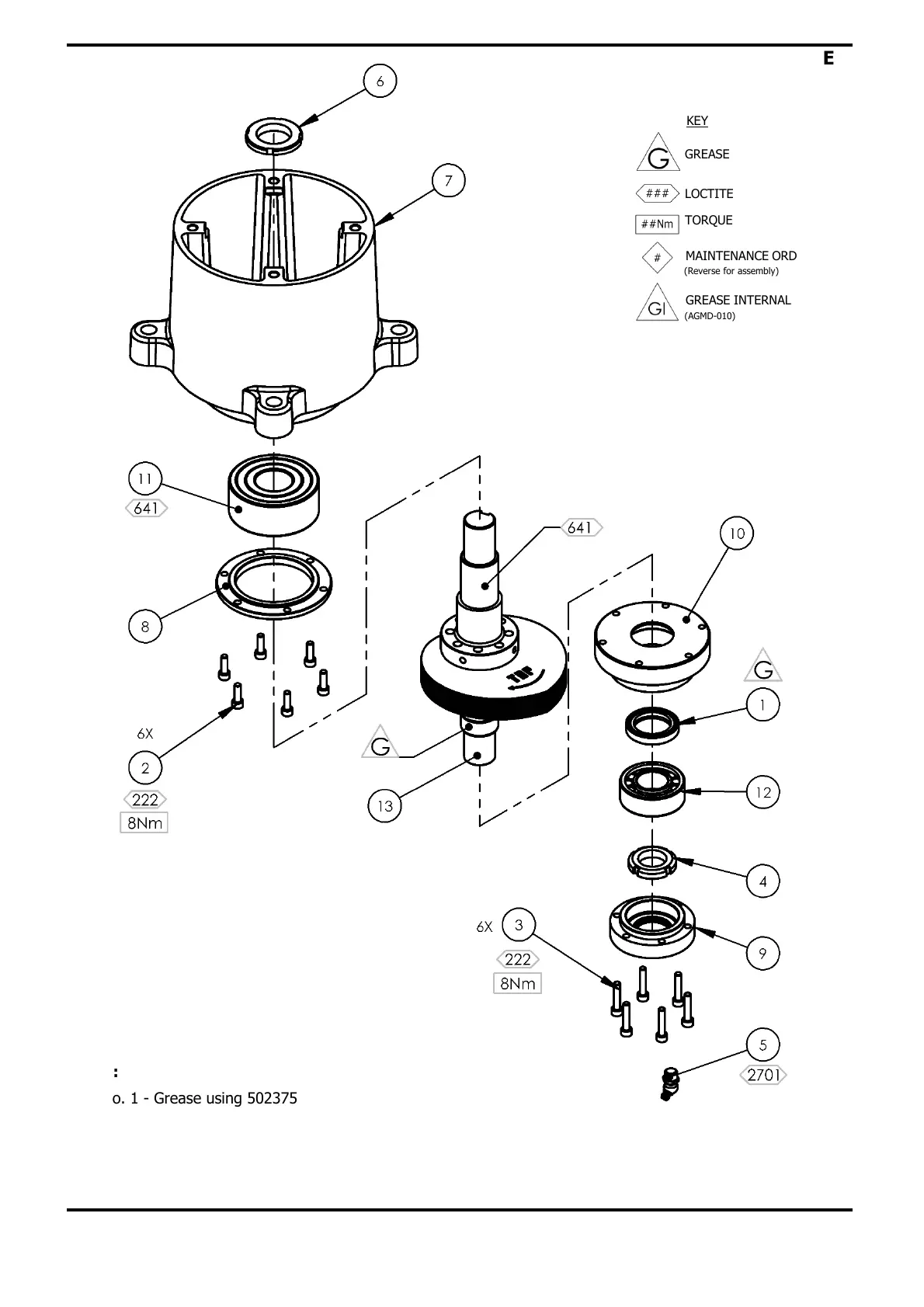

Part No. 4 - To be tightened using tool 193120
Part No. 6 - To be tightened using tool 193119
Part No. 11 - To be pressed into housing using tool 193121
Part No. 1 - Grease using 502375
NOTE:
KEY
(Reverse for assembly)
LOCTITE
TORQUE
MAINTENANCE ORDER
GREASE INTERNAL
(AGMD-010)
GREASE
77-3311 R1.0 16/36 www.carlisleft.com
