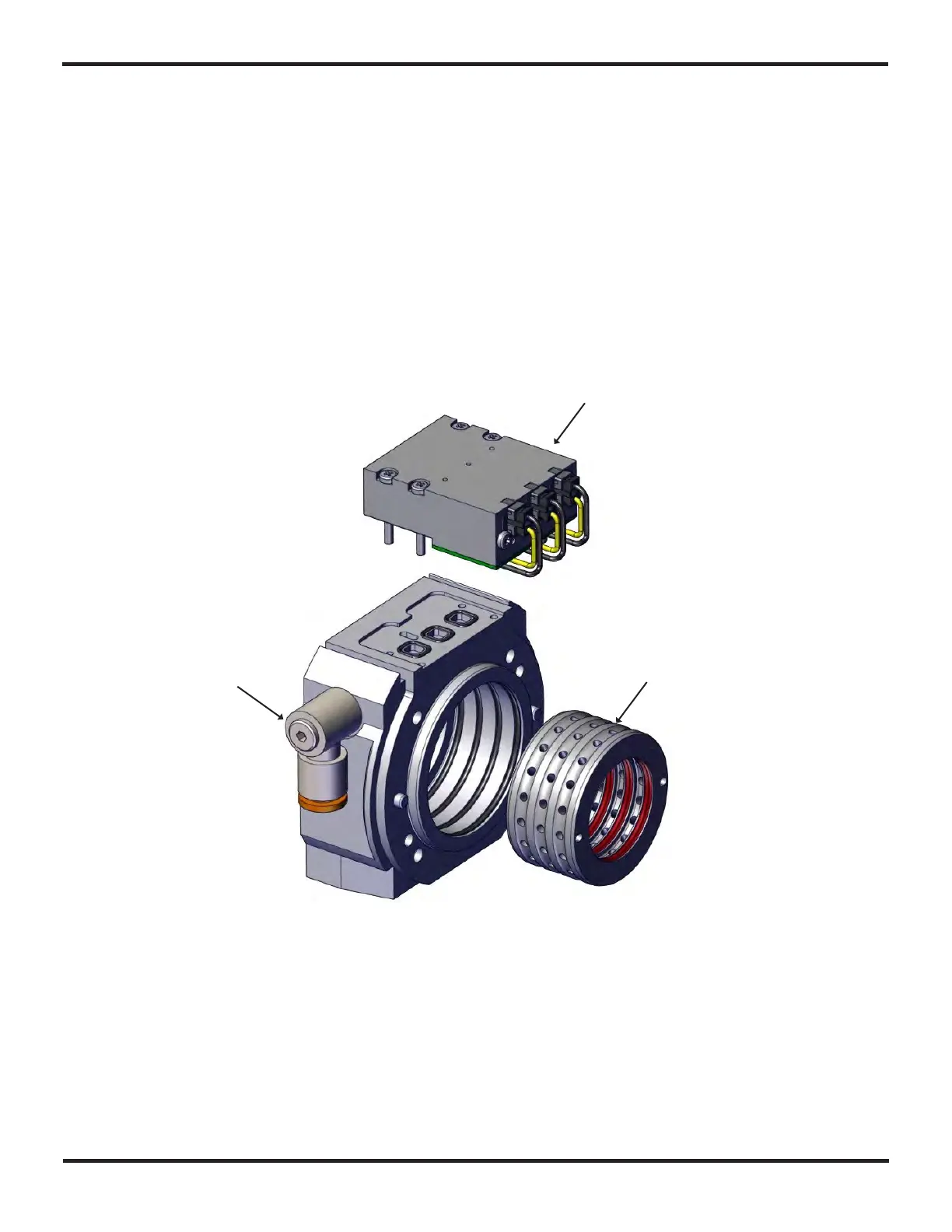

2.2 Swivel housing:
The pistons are actuated by three monostable 3/2 solenoid valves (1) that are attached to the air housing.
They are easily removed and replaced during production, without dismounting the applicator from the
robot, should they fail.
An 8 mm coupling (2) that is connected to the air chamber supplies the solenoids with compressed air.
From the solenoids, compressed air is supplied to the central axis through the air distributor ring (3).
1
3
2
