2.1 Central body:
The Binks E420 applicator central body contains these main parts:

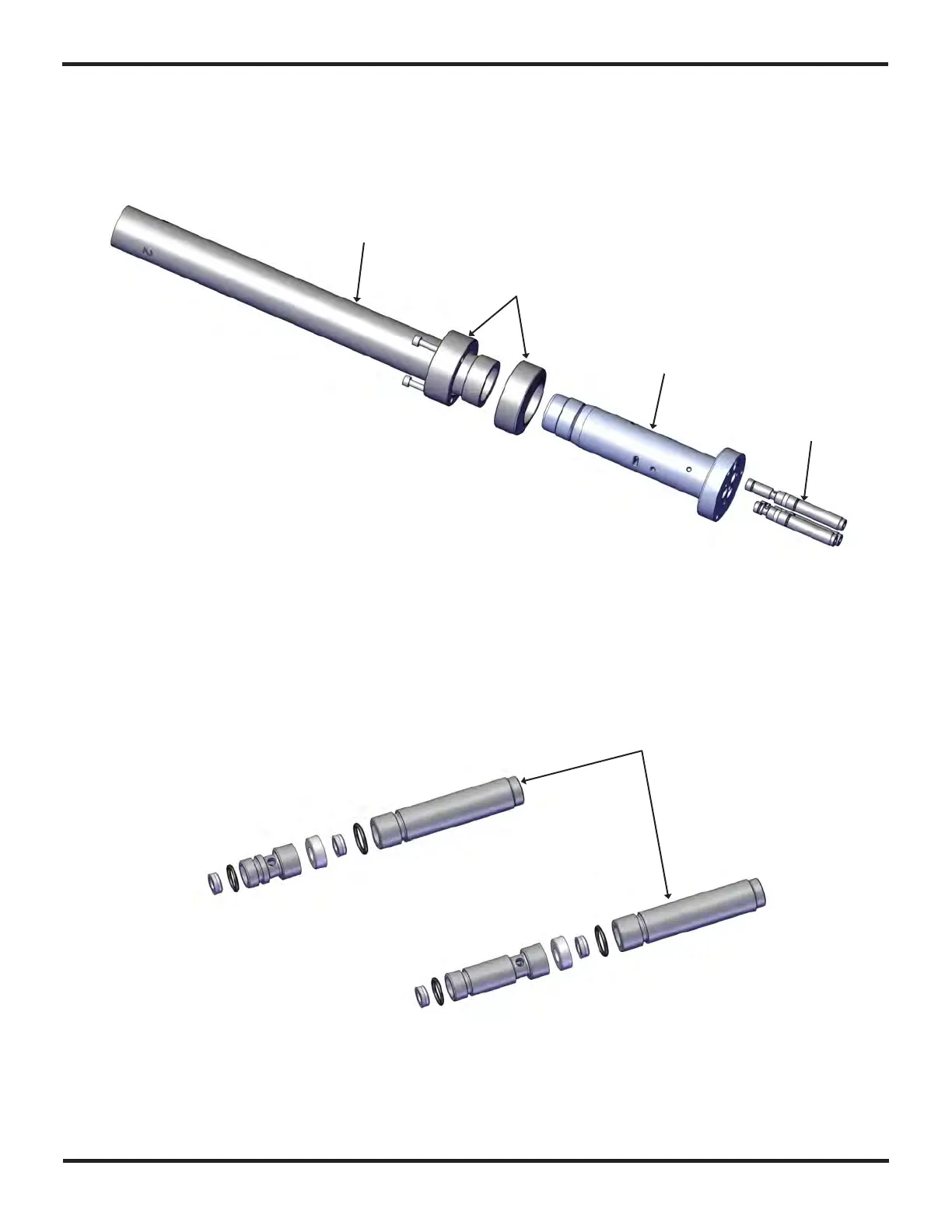

The central body has two main parts which are the extension (1) and the axis (2). The two parts are
mounted together with the help of two rings (3) which also act as a lock ring for the swivel housing.
Inside the central body axis are packing sets (4) that seal off the needles from material pressure.
1
2
3
4
4
