6. Assembly instructions:

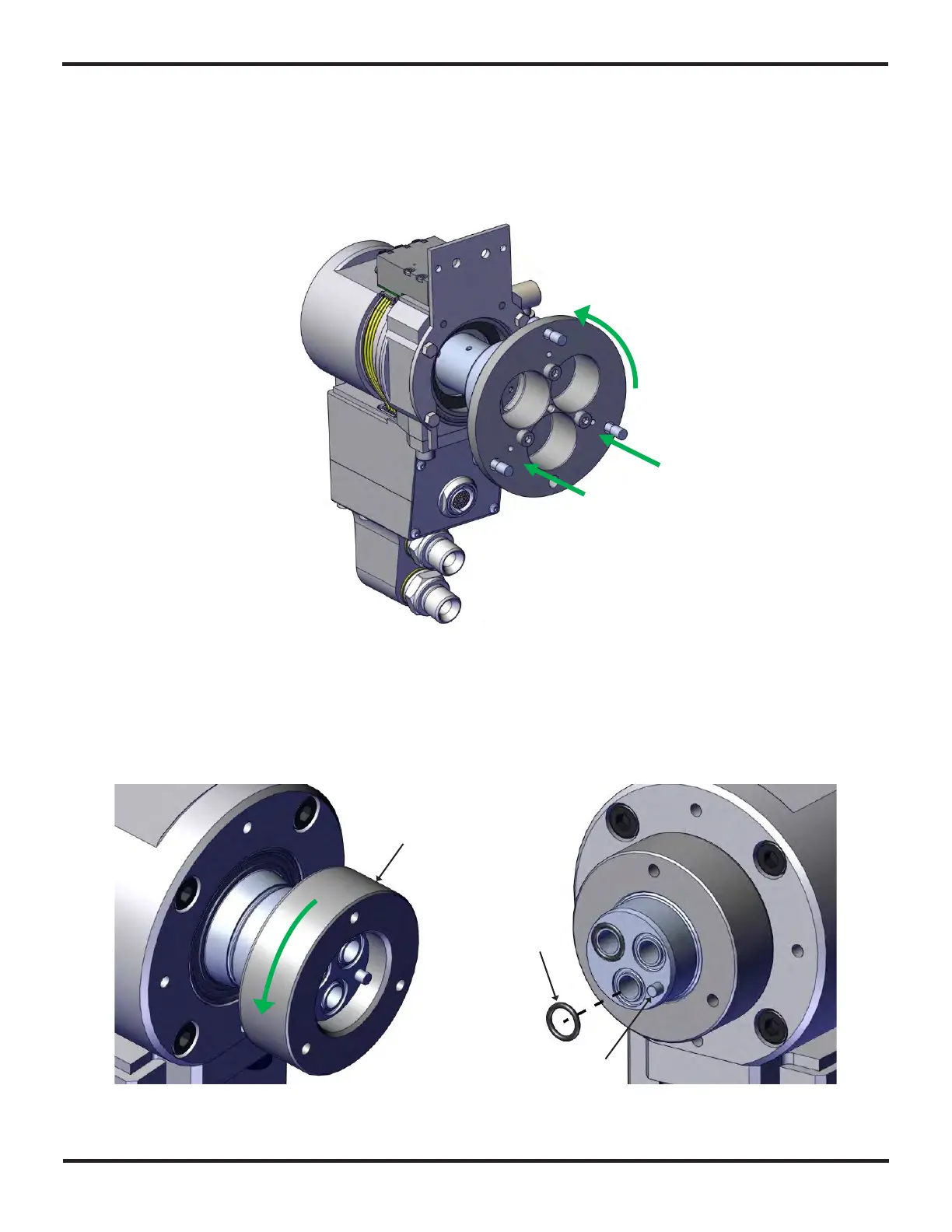

The central body axis is then inserted into the material chamber and pressed (1) into place. Rotate the
central body axis (2) whilst applying pressure for easier installation.
With the central body axis installed in the swivel chamber screw on the lock ring (3) to hold the central
body axis in place and place the three O-rings (4) into their grooves. Mount the pin (5) should it have been
removed.
1
2
3
4
5
