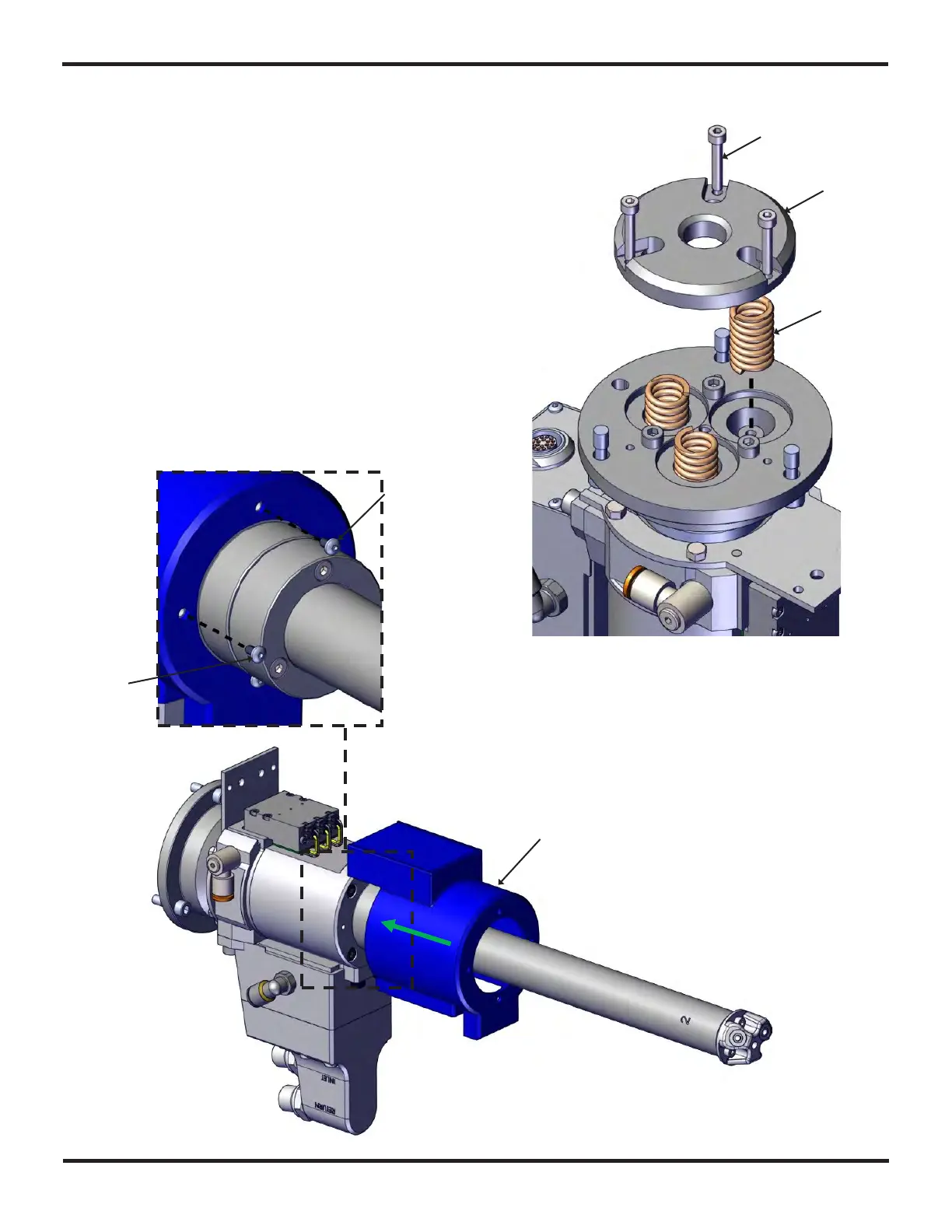

6. Assembly instructions:
Place the springs (1) into the pistons.
The cylinder cover (2) is then placed on top of the
springs and mounted to the cylinder block with three
screws (3), which are tightened alternately.
Slide the protection cover (4) over the central body
extension and in place on the swivel housing then use
four screws (5) to fasten it.
1
2
3 [3.3 Nm]
4
5 [1.35 Nm]
5
