CARLO GAVAZZI VariFlex3 RVLF Series - Outline Dimensions

Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.18/11/2014 15
Motor Controllers AC Variable Frequency Drives Type Variex
3
RVLF
3.6. Outline Dimensions
(unit: mm)

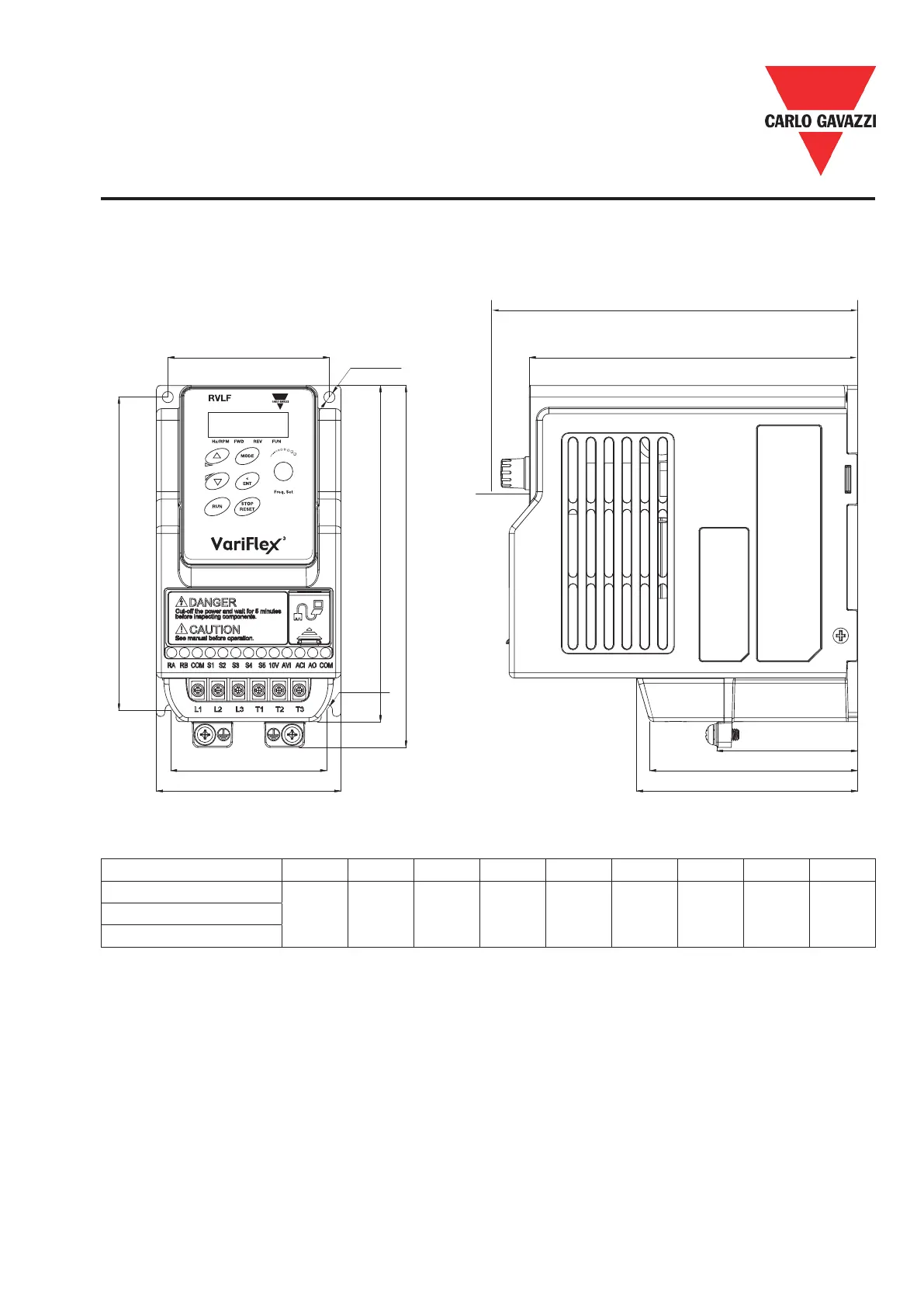

Size 1
F: Built-in EMC lter
Model W W1 W2 H H1 H2 D D1 Weight
RVLFA120020F
72
(2.83)
63
(2.48)
61
(2.40)
141
(5.55)
131
(5.16)
122
(4.80)
144.2
(5.69)
136
(5.35)
0.9kgRVLFA120040F
RVLFA120075F
W1
W2
2-R2.2
W
2-Ø4.3
D1
D
H
H1 H2
55±0.5
81.1±0.5
86.3±0.5
D D1
