18” CHIPPER SERVICE

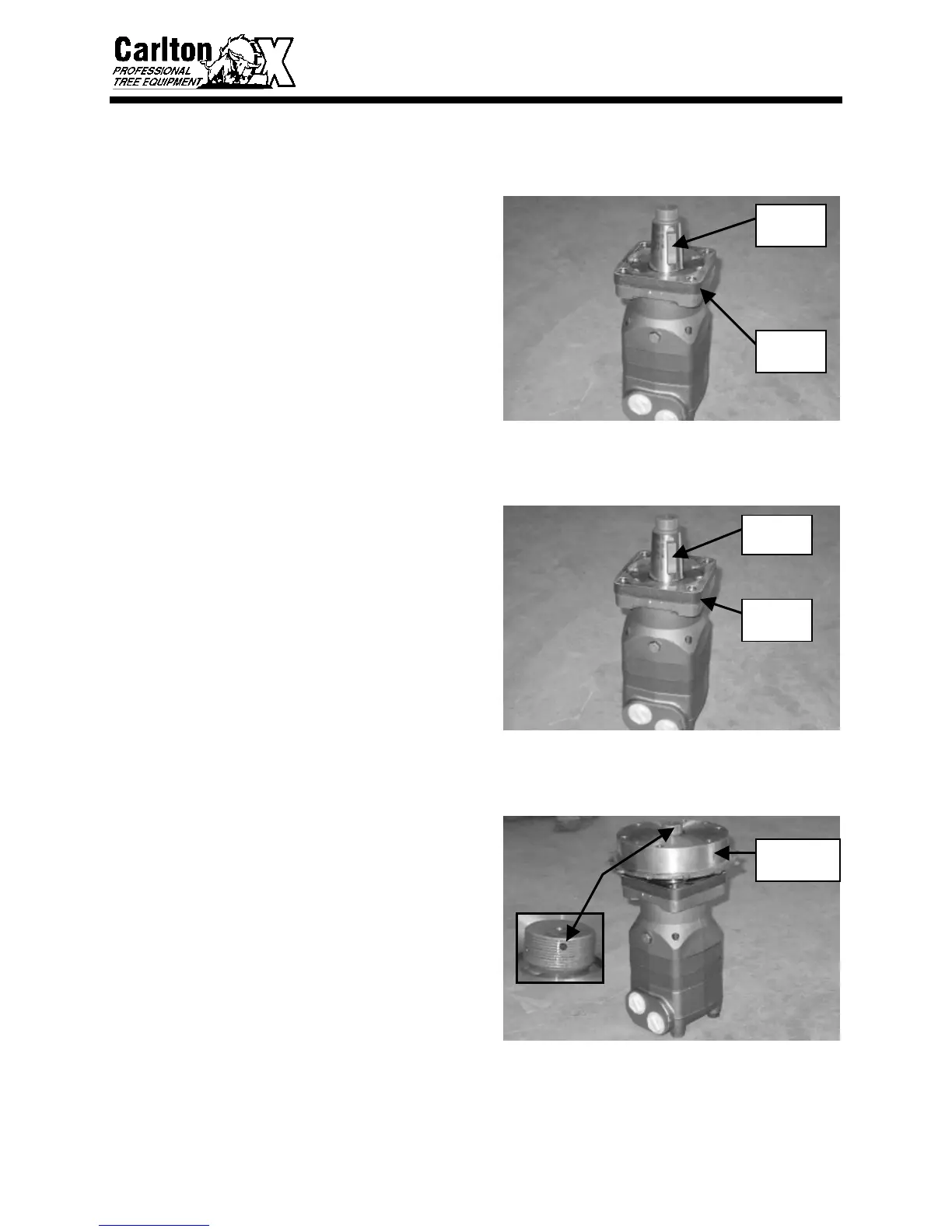

FEED WHEEL MOTOR
115
• Remove the square spacer and set aside
for use with the new motor.
• Remove the key stock and set aside for
use with the new motor.
• Replace with the new motor and
reassemble.
• To reassemble the drive motor, put the
square spacer on the motor first. DO
NOT FORGET OR THE ENTIRE
ASSEMBLY WILL HAVE TO BE
REMOVED AGAIN.
• Make sure the key stock is in place
before proceeding to the next step.
• Put the feed wheel end plate on the drive
motor shaft; line up the key slot with the
key stock.
• There is a hole in the end of the shaft,
note the location of this hole.
SQUARE
SPACER
FEED WHEEL
END PLATE
KEY
STOCK
SQUARE
SPACER
KEY
STOCK
